Connection Diagram of MC-5824A Two Doors Access Control Board and Electric Control Lock
2016-11-09 17:27
Details of the problem:

Hello, I purchased MC-5824A two doors access control board, switching power supply and two electric control locks from your company some time ago, how do you connect? please provide the connection diagram from your company, thank you!

Expert answer:

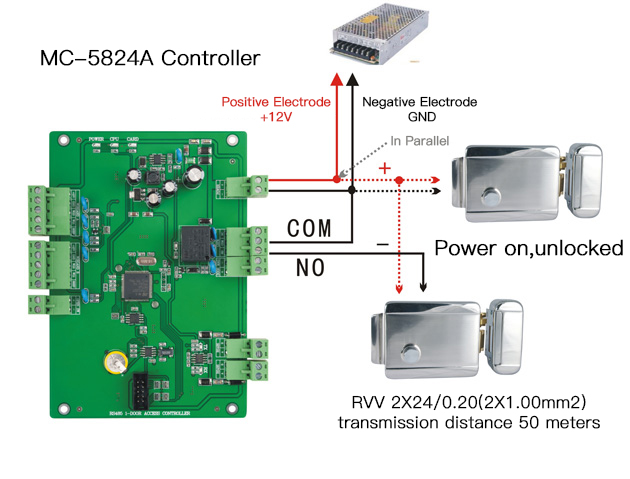

Hello, thank you for purchasing our company's access control products, you can connect through the following pictures

If you encounter something that you don’t understand when connecting, please add my QQ, and I will give you guidance: QQ 2880150932
