Connection Diagram of MC-5824A Two Doors Access Control Board and Magnetic Lock
2016-11-09 17:29
Details of the problem:

Hello, our office uses your company’s access control products, MC-5824A two doors access control board, switching power supply and magnetic lock, due to the change of office space, the access control device will also be moved to the new office, the manual and connection diagram of the access control device are lost, please provide the connection diagram from your company, thank you

Expert answer:

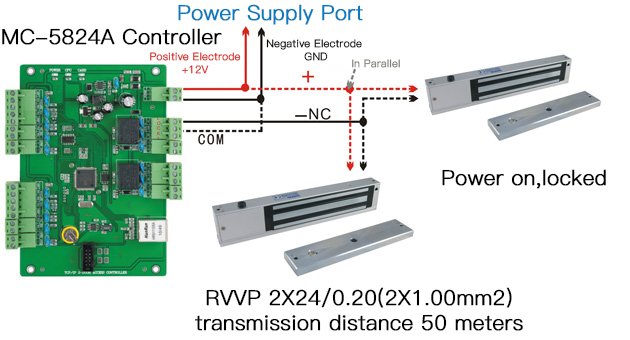

Hello, thank you for purchasing our company's access control products, you can refer to the following pictures to connect

If you encounter something that you don’t understand when connecting, please add my QQ and I will give you guidance: 2880150932
