MC-5816 Floors Auto Lighting Wiring Diagram
2017-08-08 16:55
Details of the problem:

Hi, we have bought your company's elevator access control board, but now we want the floors' button auto lighting, can you show me the wiring diagram? Thanks.

Expert answer:

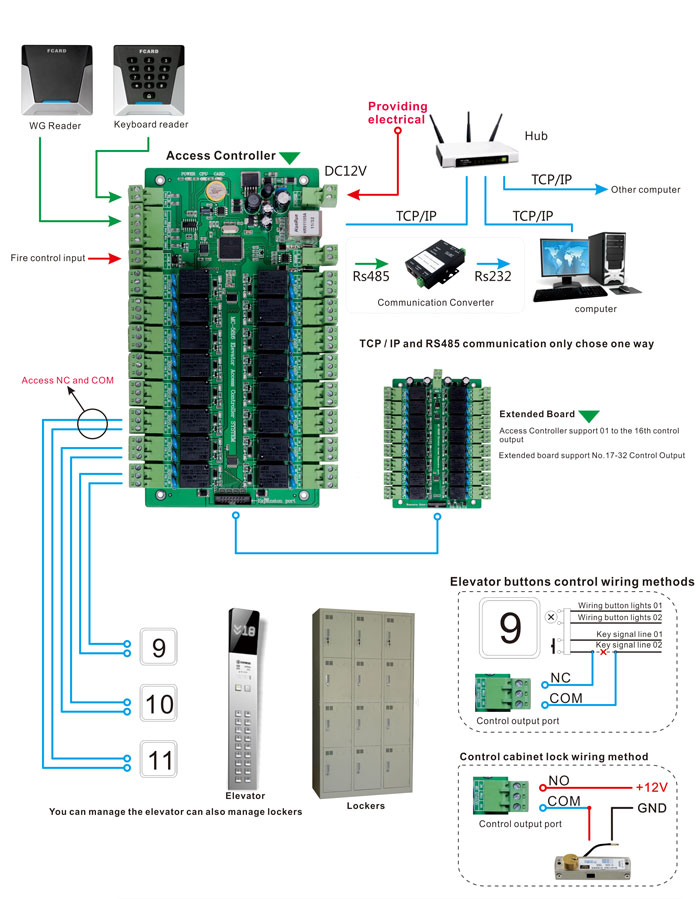

Thanks for your support. This is the wiring diagram, please do a reference:
