FC-198E Access Controller, Can it be Connected to an Bolt Lock? How to Pick it up
2017-05-07 11:53
Details of the problem:

Hello, we need the system connection diagram of FC-198E access controller, thank you!

Expert answer:

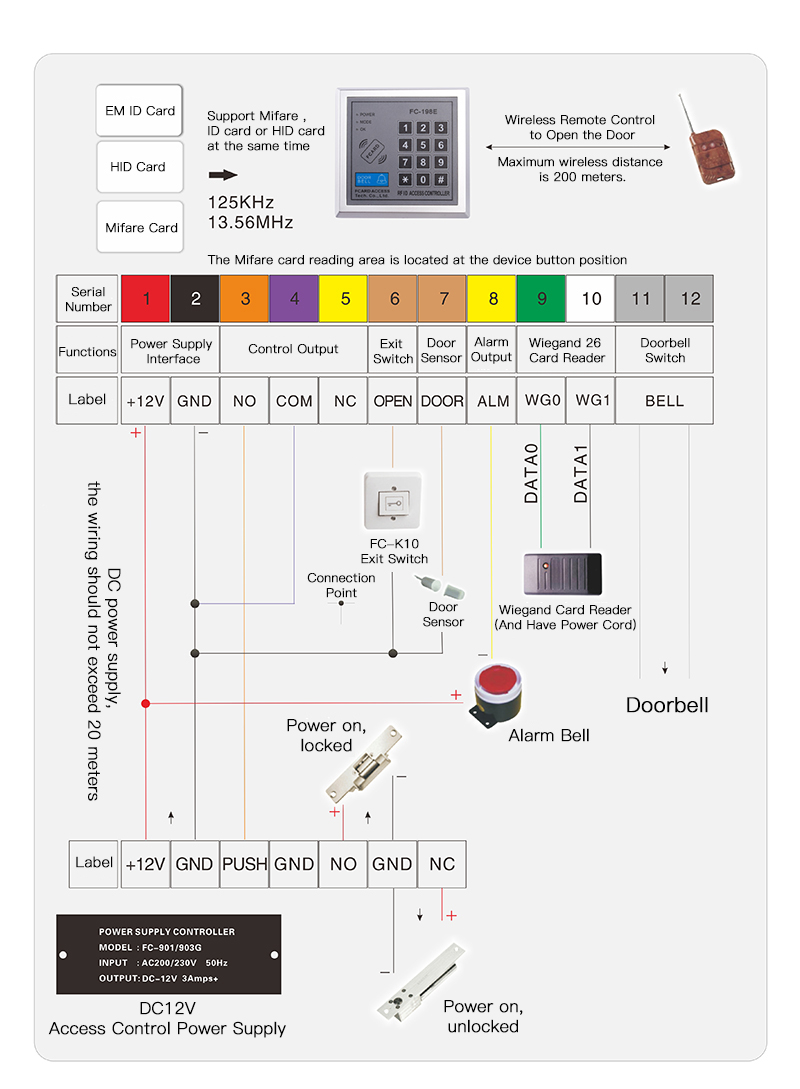

Hello, thank you for purchasing our company's FC-198E keyboard access controller, you can refer to the following pictures to connect:

If there is anything you don’t understand, you can ask us at any time and we will answer you in time.
