FC-A108E/M Fingerprint & Face Recognition Time Attendance Access Controller
FC-A108 Fingerprint Face Recognition Time Attendance Access Controller adopts multi-core processor, integrated fingerprint supercomputer, fingerprint head adopts human body induction mechanism, which is not afraid of sunlight, rejection rate <0.01%, fingerprint recognition time <1S, 4.3 inch TFT color screen, support: 2000 faces, 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records (can be customized to support ID card or Mifare card), TCP/IP networking, RS485 networking, support 1 set of door open relay, 1 set of door sensor, 1 set of alarm output , support U disk backup data, support cloud platform. Simplified Chinese, Traditional Chinese, English (support switching on the machine, other foreign languages can be customized)


Product Introduction



FC-A108E/M Fingerprint & Face Recognition Time Attendance Access Controller


FC-A108 Fingerprint Face Recognition Time Attendance Access Controller adopts multi-core processor, integrated fingerprint supercomputer, fingerprint head adopts human body induction mechanism, which is not afraid of sunlight, rejection rate <0.01%, fingerprint recognition time <1S, 4.3 inch TFT color screen, support: 2000 faces, 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records (can be customized to support ID card or Mifare card), TCP/IP networking, RS485 networking, support 1 set of door open relay, 1 set of door sensor, 1 set of alarm output , support U disk backup data, support cloud platform. Simplified Chinese, Traditional Chinese, English (support switching on the machine, other foreign languages can be customized)

Product Parameters

Model: FC-A108E/M

False Recognition Rate: < 0.0001%

Rejection Rate: < 0.01%

Working Voltage: DC12V (9-14V)

Display: 2.8 inch TFT color screen

Verification Mode: 1:N, 1:1

Registration Way: Fingerprint, Password (Can be customized to support ID card or Mifare card)

Working Temperature: 0-70 ℃

Working Humidity: 20-80%



Fingerprint Acquisition Area: 16 x 14 mm

The Acquisition Angle Range: ± 45°

Speed: < 1s

Capacity: 2,000 Faces, 5,000 Fingerprints, 5,000 Cards, 5,000 Passwords, 200,000 Records

Communication Port: TCP/IP, RS485, USB (WIFI can be customized)

Controller Port Protocol: Wiegand26, Bell

Size: 88.9 X 198.6 X 44.2mm



FC-A108 Fingerprint & Face Recognition Time Attendance Access Controller





Product Advantages:

1. Living Fingerprints + Living Faces Recognition

2. High Speed Algorithms

3. Maximum 300 million fingerprint capacity

4. Support TCP/IP or WIFI communication

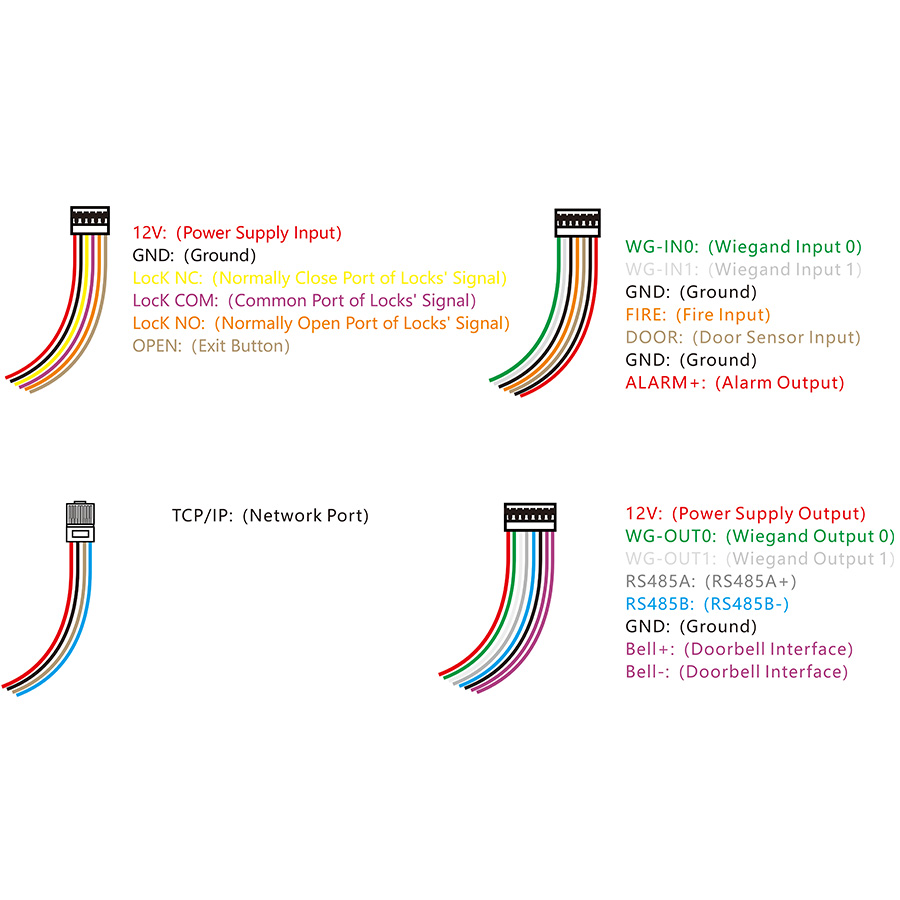

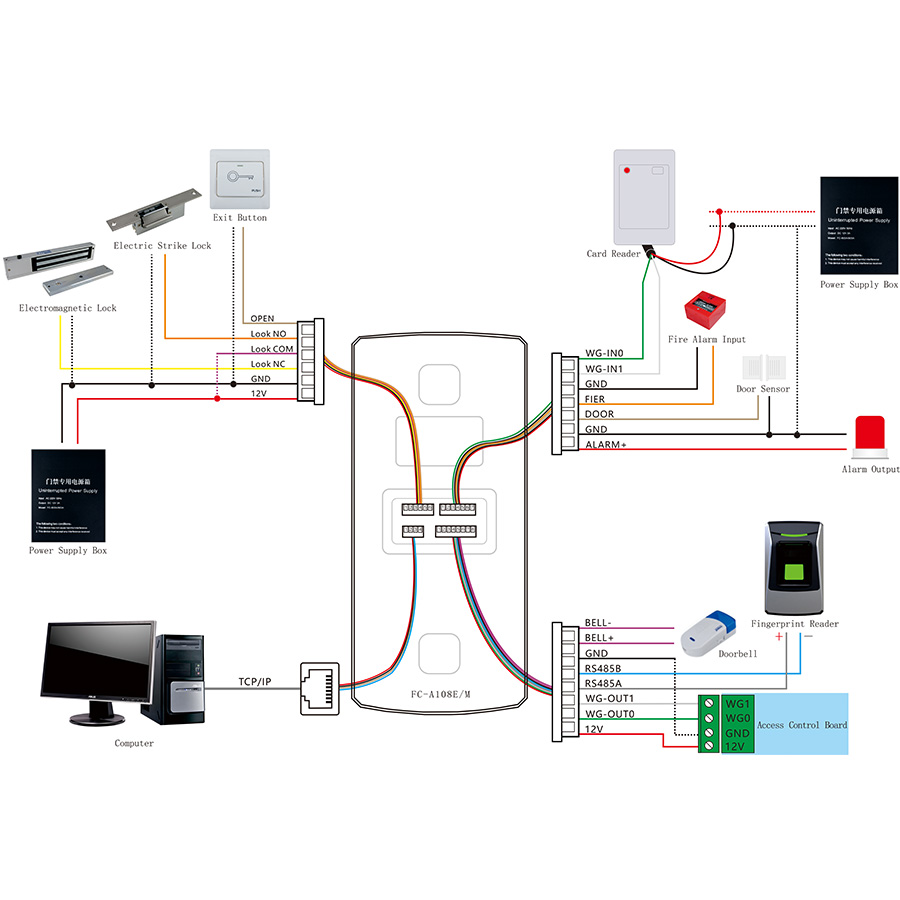

Wiring Diagram:

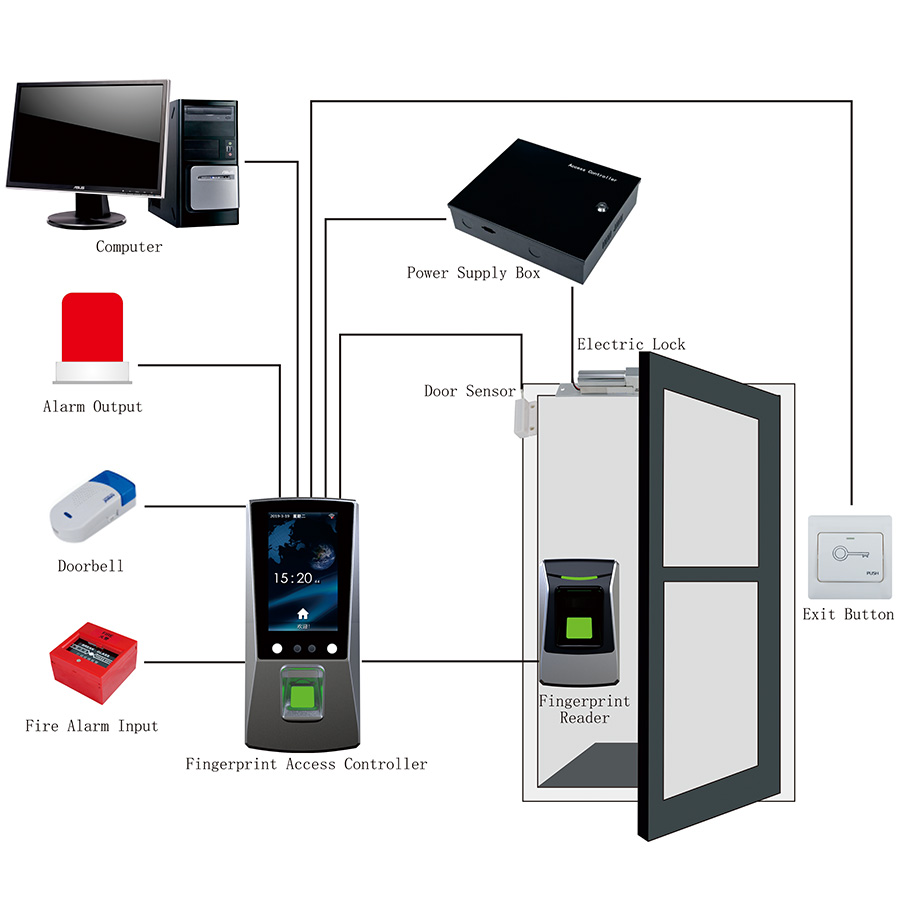

System Structure

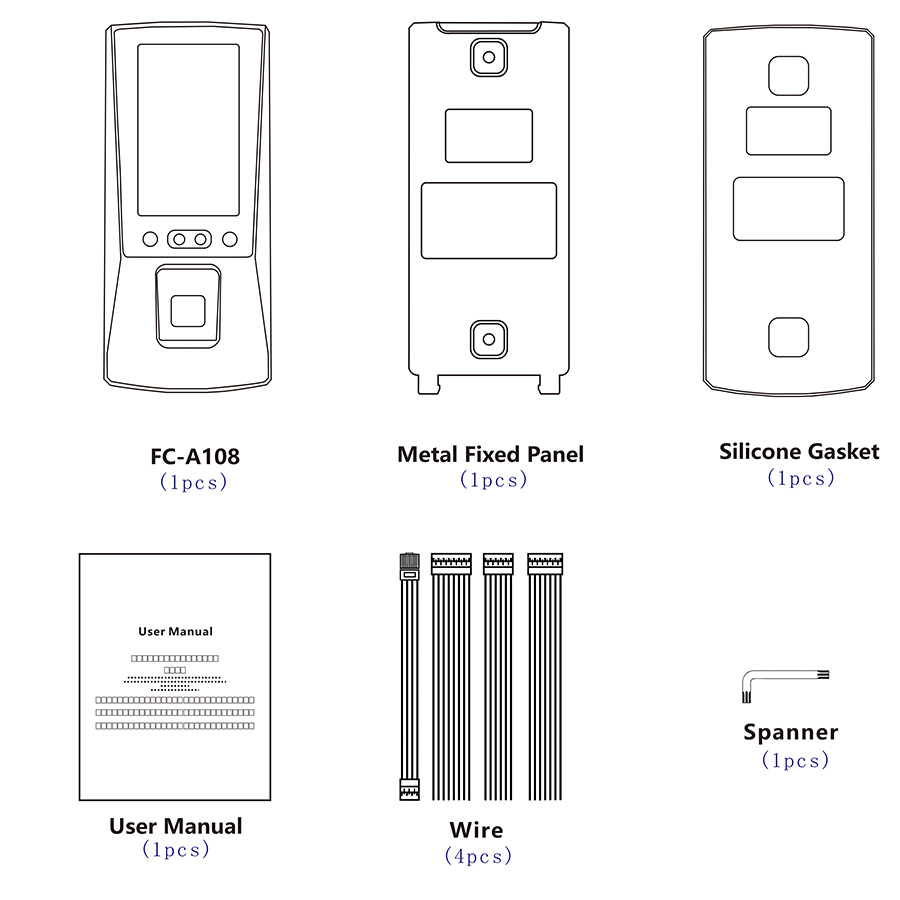

Accessories:





Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
