Product Introduction:

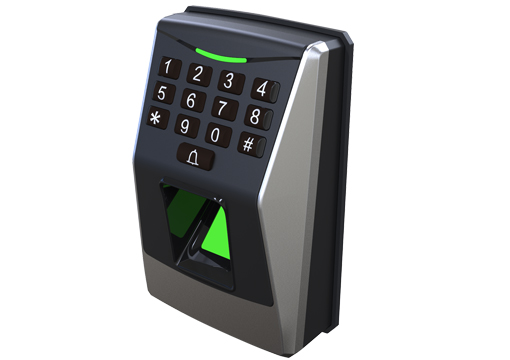

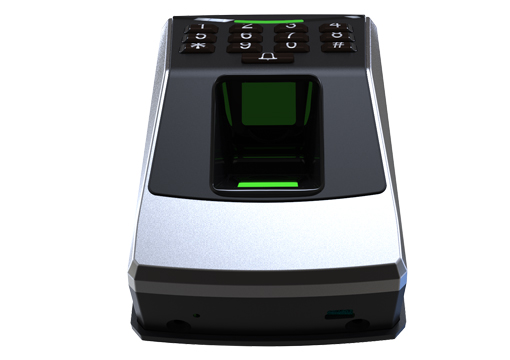

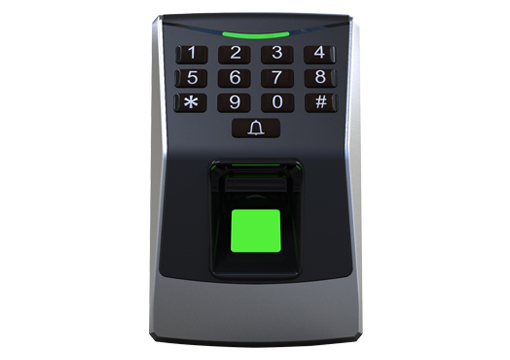

FC-A02 Fingerprint Access Controller
FC-A02 is a fingerprint access controller, which can also be used as an access control card reader or fingerprint access controller. Built-in professional processor, independent authorization fingerprint and card issuance without networking, built-in live sensor fingerprint circuit, high-speed identification and rejection of fake fingerprints, fingerprint identification time < 1S, support: 1000 fingerprints, 1000 cards, 1000 sets of passwords (customizable support ID card or Mifare card), support 1 set of door opening relay, 1 set of door sensor interface, 1 set of exit switch interface, 1 set of alarm output interface, 1 USB communication interface, support access to U disk and used for data backup and recovery. The built-in voice circuit supports both Chinese and English voice prompts. (Other languages can be customized) (RS485 network connection host can be used as fingerprint head)
Model: FC-A02E/M
Working Temperature: 0-70 ℃
Working Humidity: 20-80%
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Working Current: < 500mA
Verification Mode: 1:N, 1:1
Working Mode: Access controller, fingerprint card reader (Toggle selection)
Registration Way: Fingerprint, password, card (Cab be customized to support ID card or Mifare card)
Fingerprint Acquisition Area: 16 x 14 mm
The Acquisition Angle Range: ± 45°
Speed: < 1s
Capacity: 1000 Fingerprints, 1000 Cards, 1000 passwords
Communication Port: RS485, USB
Controller Port: Wiegand26/34
Size: 120x 76 x 39.5 mm
FC-A02 Fingerprint Access Controller
Product Advantage：
1. Living Fingerprints
2. High Speed Algorithms
3. Can used as fingerprint access controller and fingerprint card reader.
4. Voice Prompt
5. Standalone Running

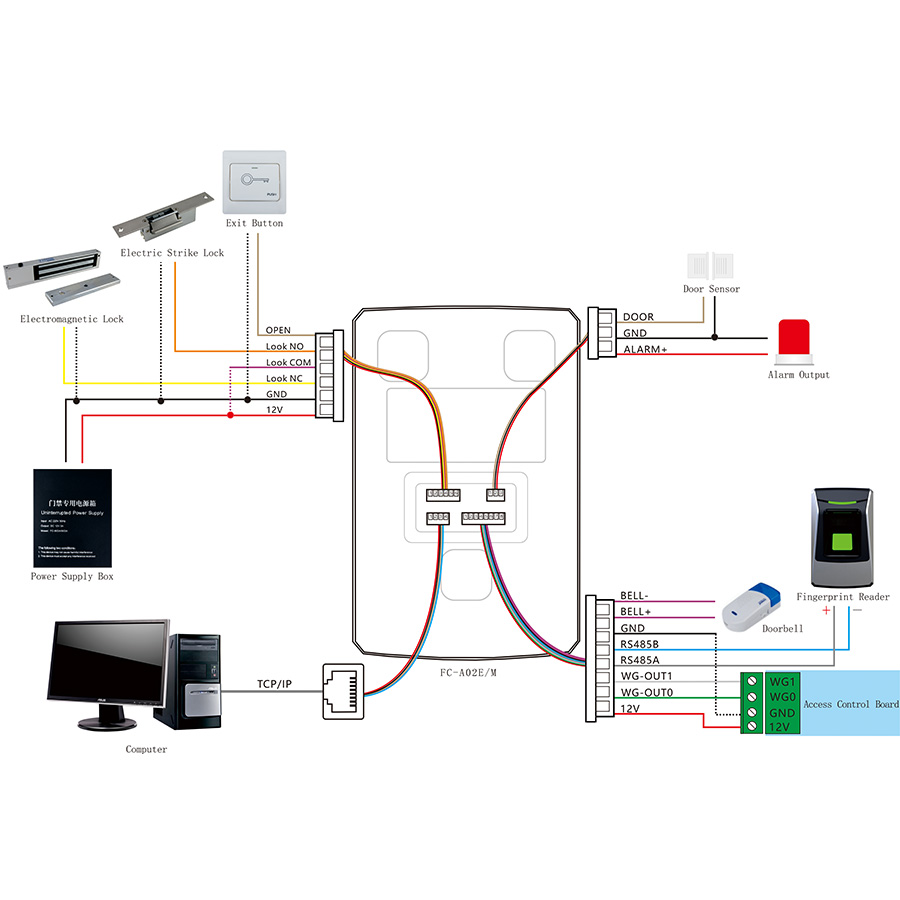

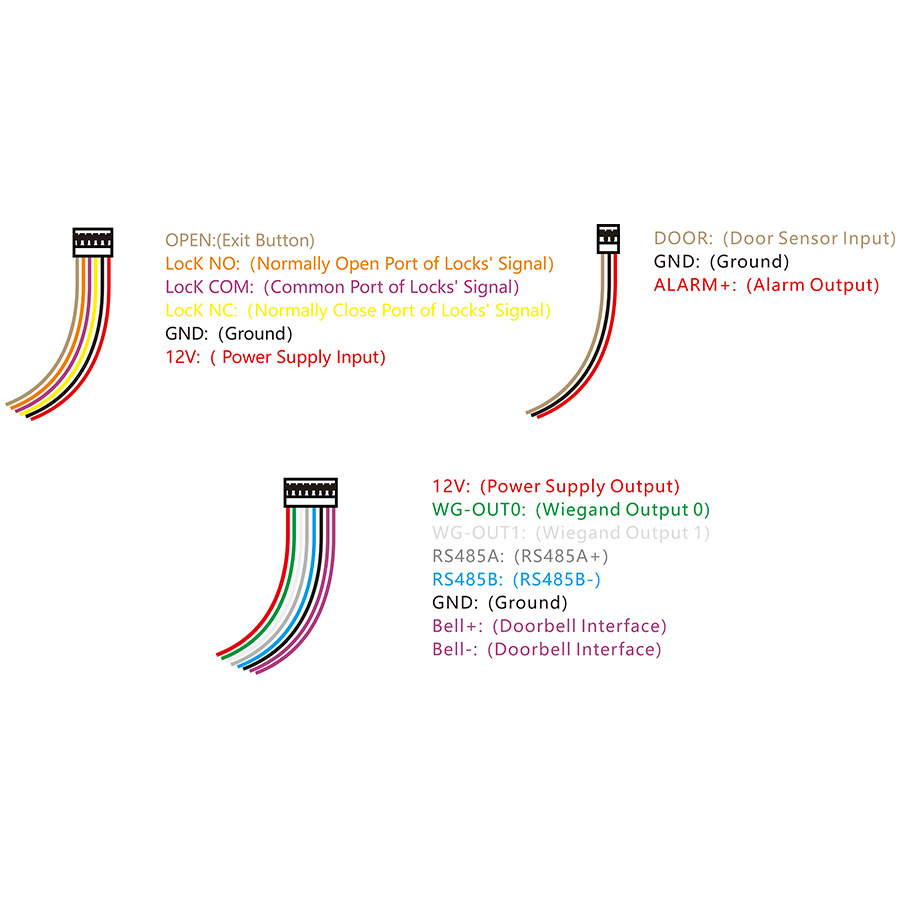

Wiring Diagram：

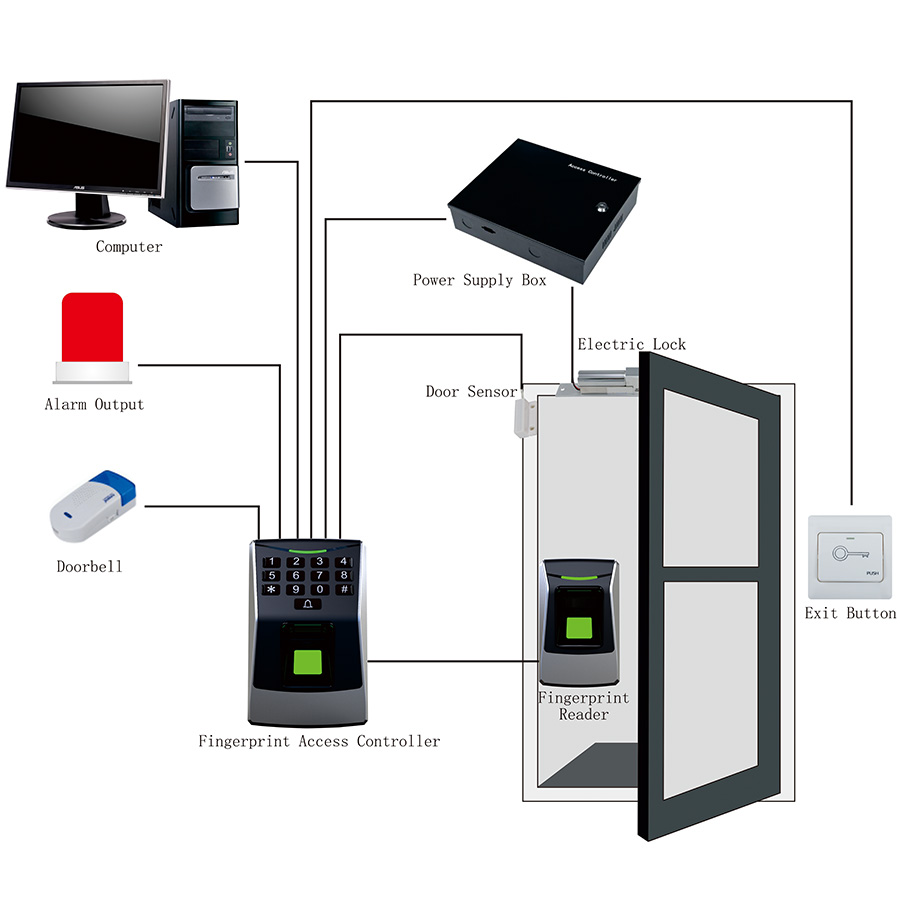

System Structure：

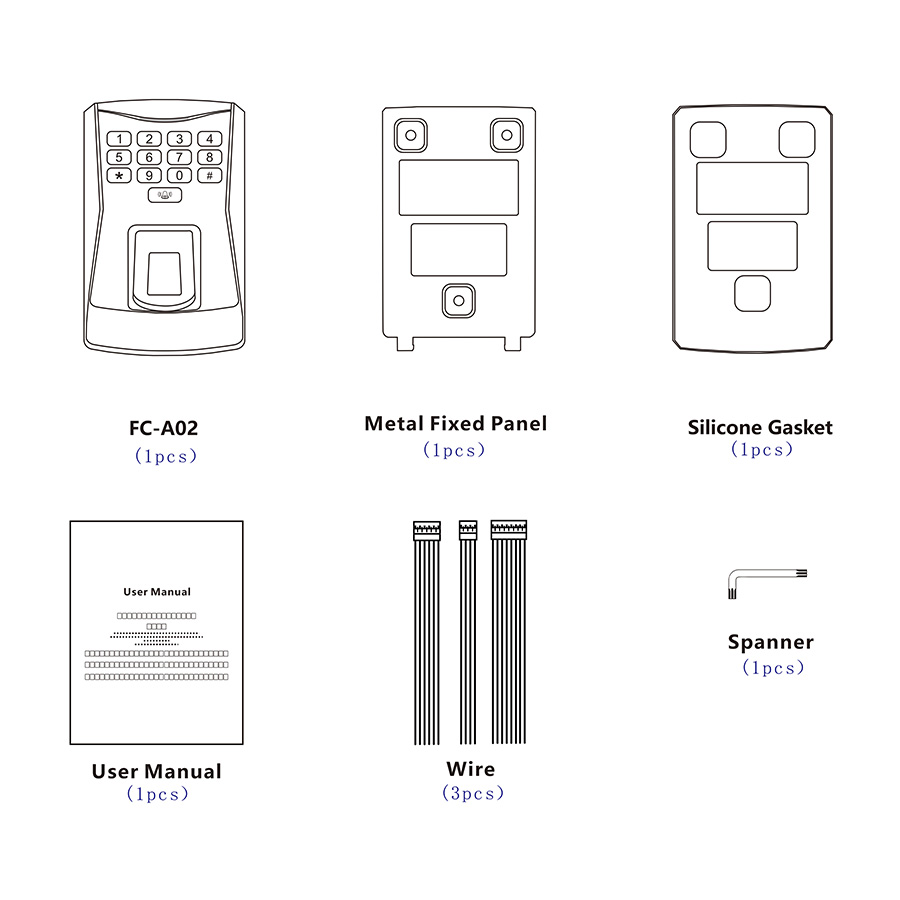

Accessories：
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
