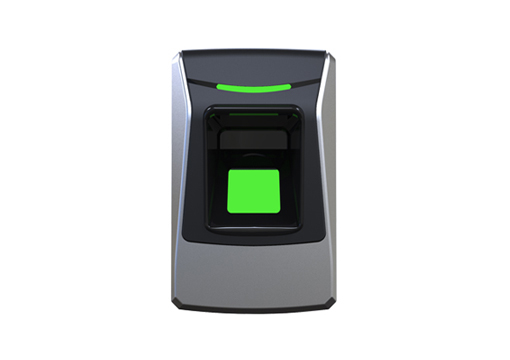

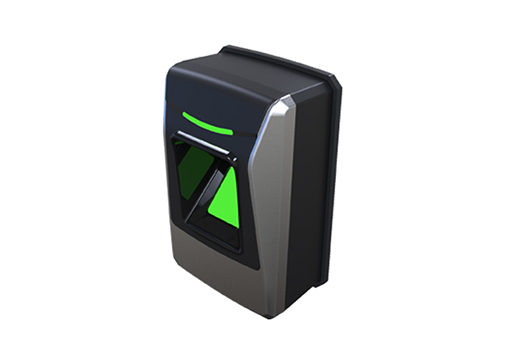

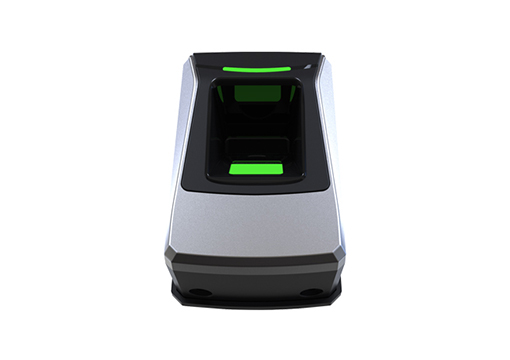

FC-A01 Fingerprint Card Reader
FC-A01 fingerprint card reader is a fingerprint card reader device that integrates fingerprint + card reader. It is responsible for reading and collecting fingerprint information and sending the access control board. It has no personnel data processing capability and is only used for card reader and fingerprint collection. . FC-A01E sends fingerprint information to the access control board via RS485.
Model: FC-A01E/M
Working Temperature: 0-70°C
Working Humidity: 20-80%
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Verification Mode: 1:N, 1:1
Working Mode: Fingerprint Card Reader
Registration Way: Fingerprint, Password, ID Card, (Mifare Card Optional)
Fingerprint Acquisition Area: 16 x 14 mm
The Acquisition Angle Range: ±45°
Confirm Response Time: < 1s
Communication Port: RS485
Size: 55 X 88 X 38mm
FC-A01 Fingerprint Card Reader
Product Advantage：
1. Living Fingerprints
2. High Speed Algorithms
3. Professional Fingerprint Reader

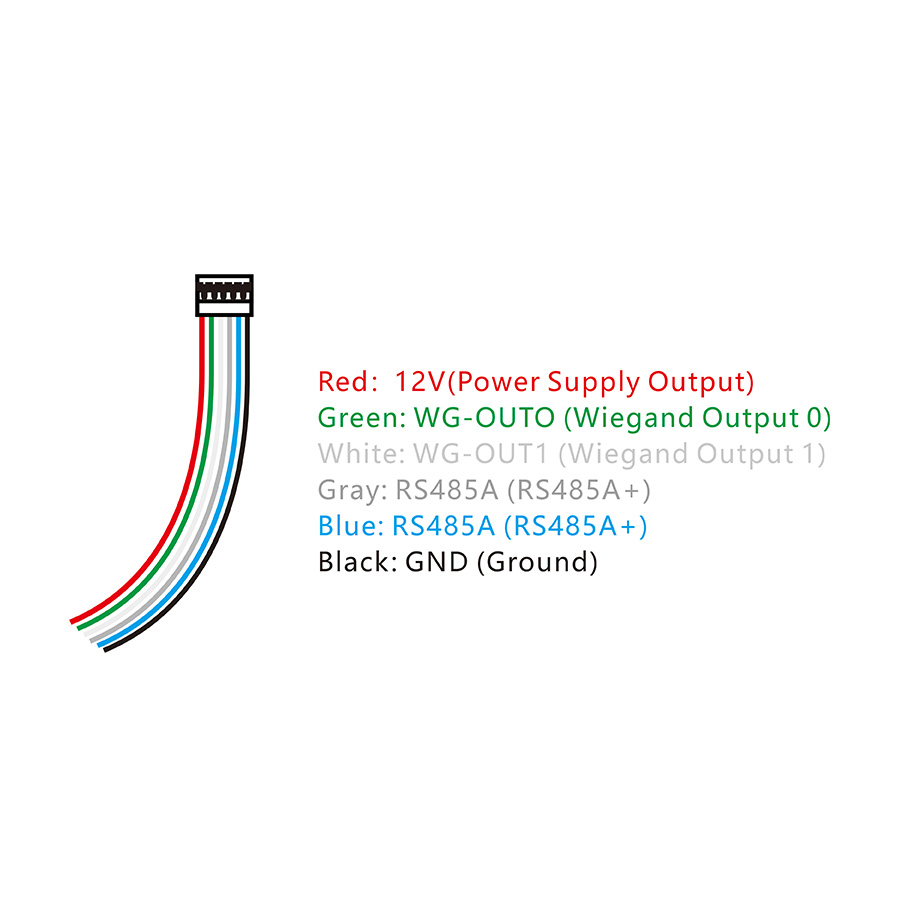

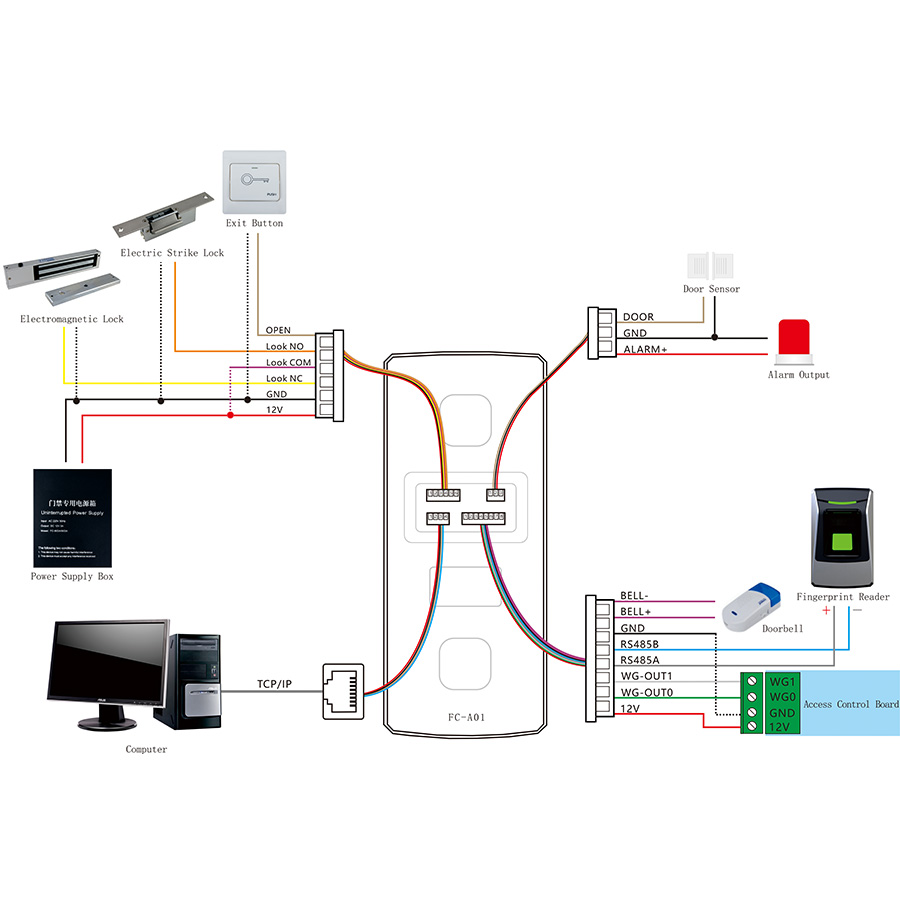

Wiring Diagram：

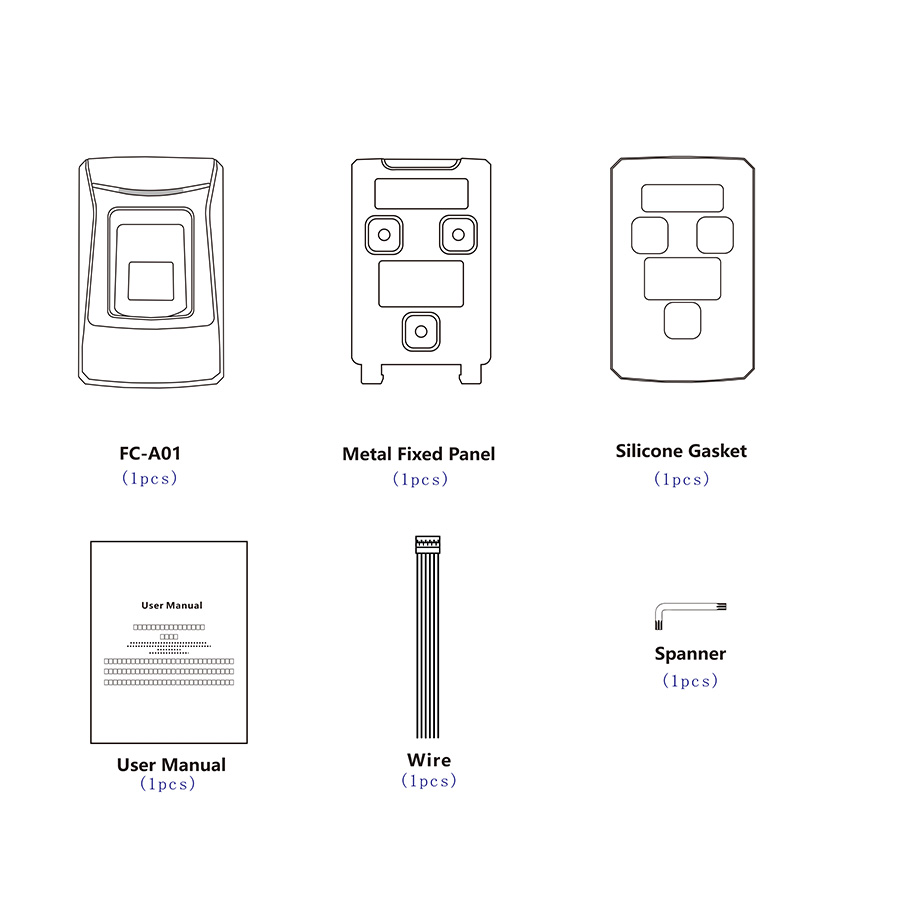

Accessories：
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
