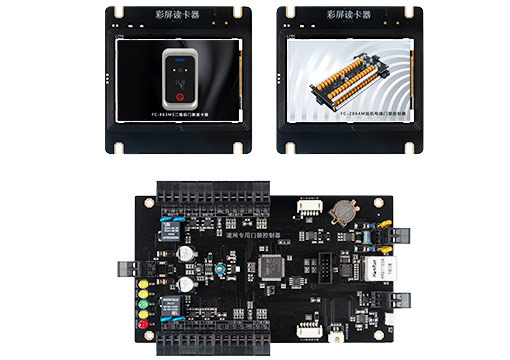

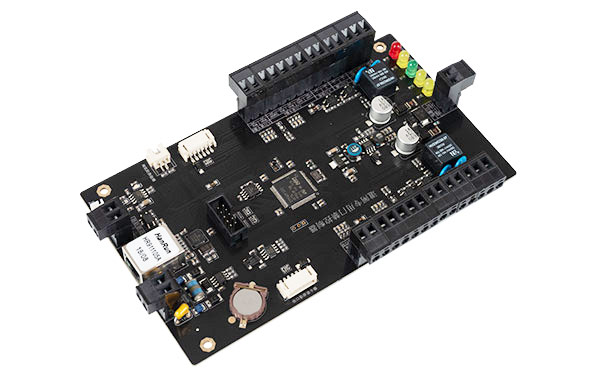

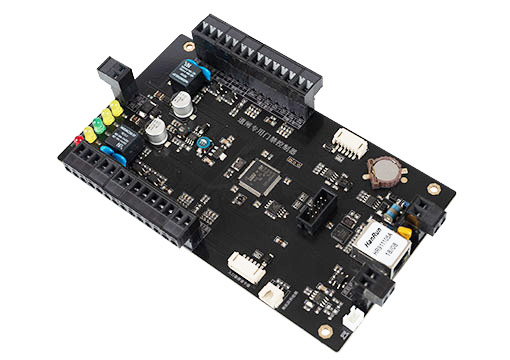

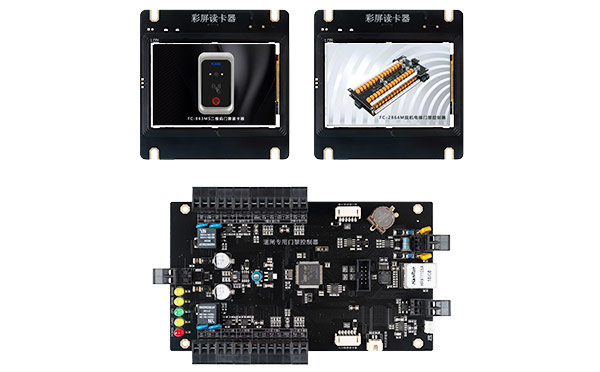

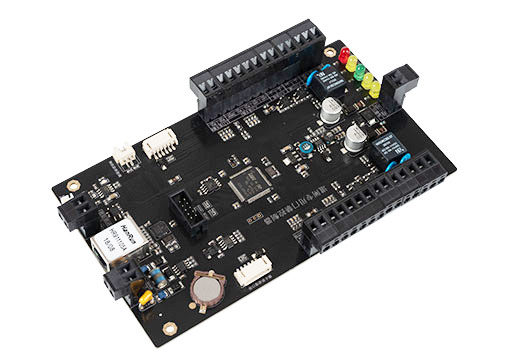

MC-5926T Turnstile Access Control Board
The MC-5926T turnstile access control board is a new generation of intelligent network access control products. It is developed with a super network processor combined with a large amount of memory to realize true networked data exchange, high-speed data calculation and super user data management.


Product Introduction

Turnstile Access Control Board

MC-5926T Turnstile Access Control Board


MC-5926T turnstile access control board is a new generation access control product, use super internet processor combined with mass FLASH memory development and design, to realize networking data exchange, high speed operation and ultra large user data management. It not only has the common access control function, but also provides some functions that other similar products on the market seldom have. Details please check in the product "system function".

It is suitable for government, scientific research institutions, factories, intelligent buildings, office buildings, smart communities, High-grade villas, hospitals, banks and financial institutions, universities, hotels, tourist attractions, playgrounds, mine management, site management and etc.

Product Parameters

A: Performance Parameter

Cards Capacity: 42,000 cards

Records Capacity: 200,000 records

Communication Way: TCP/IP + RS485 (10/100M)

Communication Distance: TCP/IP is 100m, RS485 is 1200m

Support: Wiegand

Opening Way: One Door, Double cards, Card+PIN, Software remote, Timing, Password, Free Pass, Button, Fingerprint, Face Recognition, Dynamic QR Code


B: Standard Port

Power Port: 1

Turnstile Support: 2

Voice Output: 1

Temper Input: 1

Fire Alarm Input: 1

Button Input: 2

Alarm Extension: 1(4 in 4 out)

Communication Interface: RS485  1 group+ TCP/IP 1 group

Card Reader: 4 standard Wiegand card readers + 2 color screen card readers interface


C: Basic Parameters

Working Voltage: DC 12V

Working Current: <350mA

Operation Temperature: -40 degrees to 75 degrees

Environment Temperature: 10%~95%R.H

Weight: 150g

Color: Black(Standard)

Size: 187×112×25mm


Turnstile Access Control Board

MC-5926T Turnstile Access Control Board


System Function:

MC-5926T support (Standard Function): Offline Operation, Reading Card Unlocking, Passwords Unlocking, Period Passwords Unlocking, Reading Card+Passwords Access, Period Reading Card+Passwords Unlocking, Manual Input Card Number + Passwords Unlocking, First Card Unlocking, Normal Card Unlocking, Remote Unlocking, Remote Locking, Unlocking at definite time, Period Normally Open, Real Time Supervision, Abnormally Supervision, E-map, Duress Alarm, Fire Alarm Linkage, Bandit Alarm, Illegal Break In Alarm, Illegal Card Alarm, Missing Card Management, Black list Card Alarm, Door open time out Alarm/Prompt, Anti-passback And Anti-tail, Bulk Data Uploading, Small Group Data Uploading, Two Door Interlock, Multi-Door Interlock, Multi-Card Unlock, Keypad Programming, Emergency Locking, Time Attendance, 64 Groups Time zone, Holiday time zone and etc.

MC-5926T support (Professional Function): Card Data Recovery, Logs Repair, Prodetection, Swiping Card and Validation, Full Cards unlocking, Full Cards Unlocking+Auto Register, Clock Self-Adjust, Reader with Color Screen, Unlocking Based On Internal And External Validationm, 3+1confirmation unlocking, Indoor Population Checking, QR Code Recognition Unlock, telephone inform once trigger alarm, operation time display, remote firmware upgrade and etc.

MC-5926T support (New Function): Except the function above, we also add MC-5800series with some new functions that other suppliers do not support:Abnormal detection of the card reader circuit and voice prompts, voice prompts and guide, system temperature detection, Power input stability detection, Trial period, online patrol management, voice prompts if the card close to expiration date, daily intelligent self correction of time error, Exit Switch available during valid time zone, remote phone taking when swiping card, Anti theft alarm host function, time interval setting of twice swiping card, Door magnetic alarm time management, encrypted communication data, swiping card times setting, capacity expension, Wiegand keyboard issue card and etc.It can support multiple computers to manage at the same time, such as a computer for monitoring the status,and another computer download data and other computers can also to perform other operations, which can realize the real multiple-computers management. New regional interlock function, new regional fire linkage function, new regional anti-passback function. No need to open the computer, each device can work on own.

MC-5926 series support (Site Access Control Function) : It supports the management of pedestrian turnstile, two-ways control, LED screen information output, LCD TV screen information output, site information display, and also supports card reading, fingerprint, face recognition management (a set of software unified management), and supports multi-platforms data upload.

The above models can use the software of FCARD3500 or the updated version of the one-card management system software. This software system supports ACCESS and SQL database, local connection communication, remote Internet communication.


System Software:

MC-5900 series controller adopts FCRD 3500 or above one card pass management system as the system software. The system software supports SQL and ACCESS databases, and supports WIN XP, WIN 2003, WIN 7, WIN10 and other system platforms.

FCARD3500 one card pass management system adopts nine modules structure designs: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module, conference check-in module, consumption management module.


MC-5800B Access Control Linkage Board

Access Control Linkage Board

MC-5800 series is mainly used for access control board fire alarm input and output, bandit alarm input and output,gas alarm input and output, burglar alarm input and output expansion. Support operating voltage DC12V, working current 200mA.


Software Photoes:

Software Photoes

Add Users


Add Users Software Photoes


FCARD3500A Ver6.40 version provides: OEM packaging tool, IC Password Edit password sector edit, encryption and decryption tools, device search and test tools, visitor management system, three part control system and ACCESS-SQL database conversion tool etc free tools.Through the SQL database, it can be combined with FCARD5000T POS system, FCARD6000 POS system, parking lot system, which can realize: access control, time attendance, guard tour, elevator, conference check-in, POS, water control, electric control, parking lot charge, vehicle guidance and integration, to achieve one card pass system, one database management.

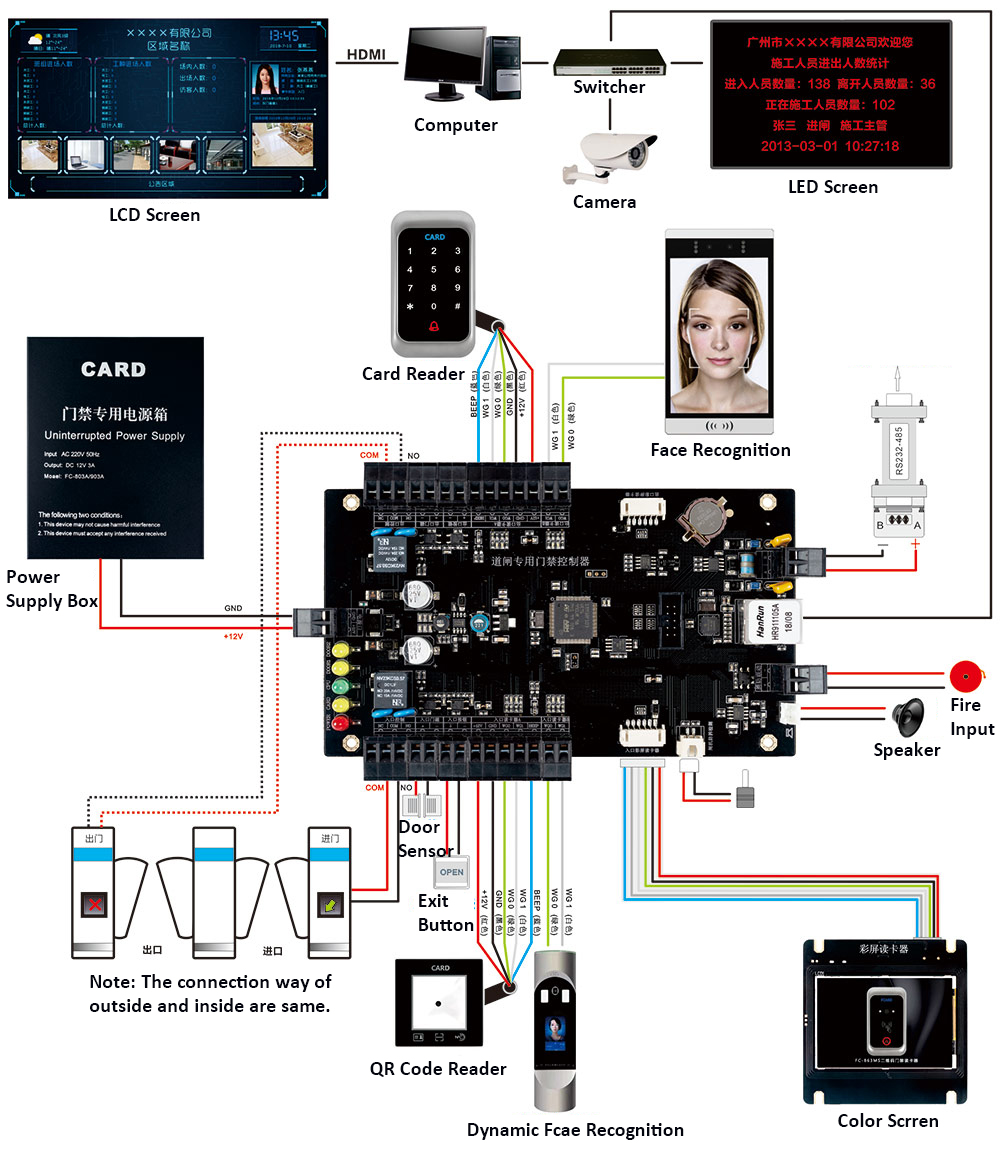

Wiring Diagram:

Turnstile Access Control Board Wiring Diagram

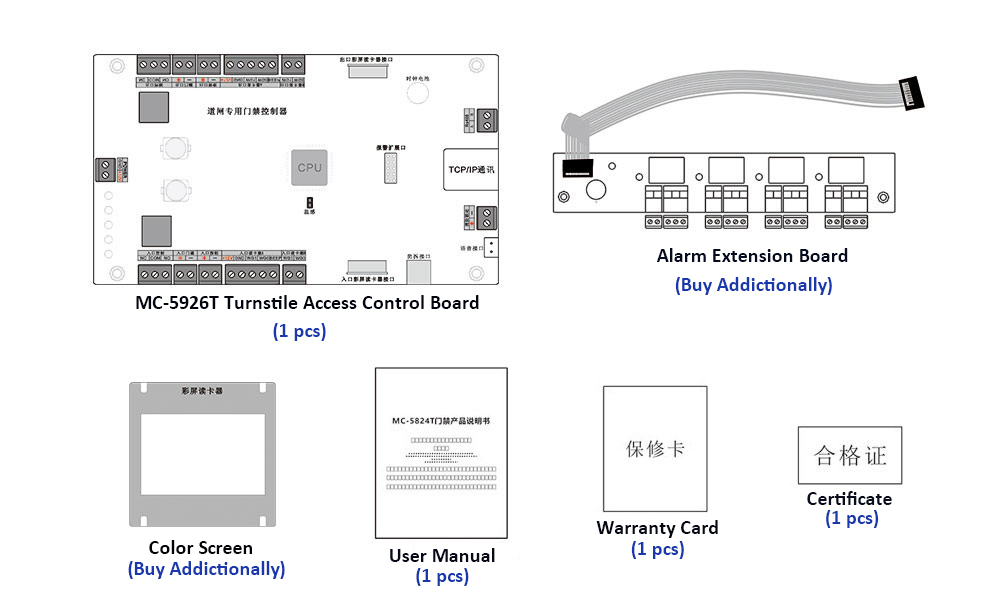

Parts List:

Turnstile Access Control Board Parts List


Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
