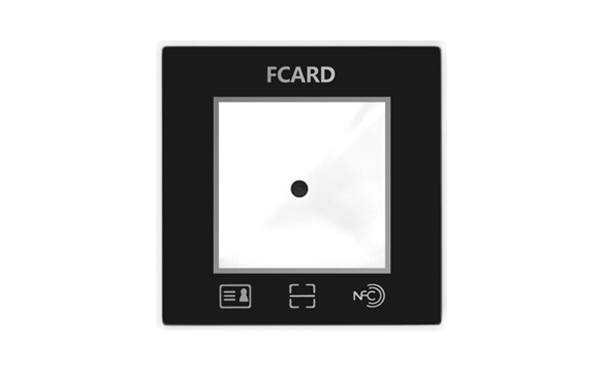

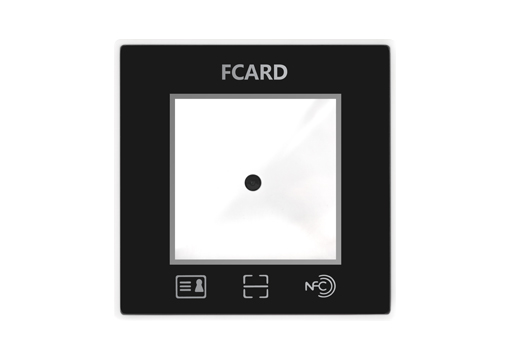

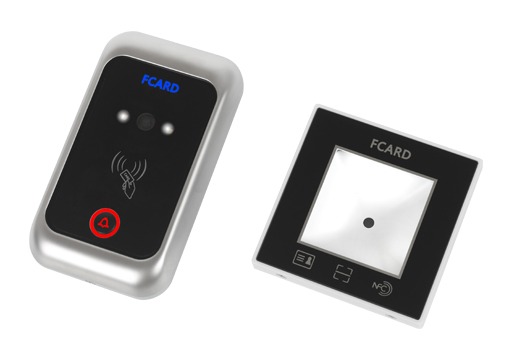

FC-865MS QR Code Card Reader
FC-865MS QR code access control card reader, it adopts advanced radio frequency receiving circuit design and embedded microcontroller image recognition, with strong recognition ability and fast recognition speed.

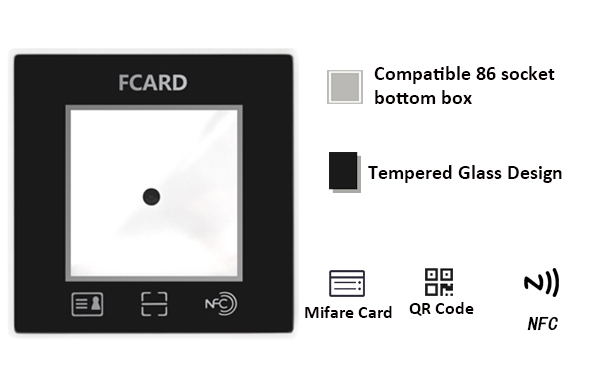

FC-865MS QR code card reader adopts scratch-resistant toughened glass design. The shell is compatible with 86 bottom boxes on the market and can be directly embedded into the card readers with standard 86 socket bottom boxes.

Product Introduction

QR Code Card Reader

FC-865MS QR Code Card Reader


QR Code Card Reader adopts advanced RFID receiving circuit design and embedded micro-controller image recognition, supports QR code, Mifare card, Identification card, CPU card, bank card, NFC card, with high receiving sensitivity, low working current, single DC power supply and high performance.

This series of QR code card reader can recognize the QR code on the paper and the phone's screen. It can be widely used in access control system, turnstile system, consumption system, mobile boarding areas, suitable for all kinds of application of high performance and multi functions tool of QR code and data acquisition card. It uses the Datalogic Scanning the latest digital imaging technology, can be quickly read 1D and 2D identification number.

Product Parameters

1. Types of Scanning and Decoding Support:

One-dimensional Codes: UPC-A, UPC-E, EAN-13, ISBN13, EAN-8, 39 code, 128 code, crossover 25 code, etc

QR Code: QR code, etc.

2. Support Mifare Card, Identification card, CPU card, bank card, mobile phone NFC and so on.

3. Interface Output: Wiegand 26/34/66 output, RS485 output

4. Power Input: USB_5V power supply, DC9~14V power supply

5. QR Code Trigger Mode: automatic induction


Working Temperature: - 10 ℃ to 70 ℃

Working Humidity: 5%-95%

Product Performance: 1GHz main frequency CPU

Operating Current: < 500MA

Prompt Mode: LED flashing green light, buzzer prompt

Scanning Angle: the Angle + 55 °, 360 ° rotation

QR Code Reading Distance: 1-20cm

Resolution: 640*480

Appearance Size: 90.17×90.17×12.4mm


The characteristics of the QR code reader


Product Advantages:

1. Strong recognition ability, can read mobile phone screen, paper and other types of QR code and one-dimensional code.

2. High-speed reading, for a variety of mobile phone LCD screen and paper, as long as within the scope of the recognition window, can achieve high-speed reading.

3. Powerful identification method, support QR code, Mifare card, Identification card, CPU card, bank card, NFC card and so on.

4. Strong data interaction ability, Wiegand 26/34/66,RS485 and other data output.

5. It supports USB_5V power supply, DC9-14V power supply and is easy to use and install.

6. The shell of FC-865MS is compatible with the 86 bottom box,can be directly embedded into the card reader of the standard 86 socket bottom box. It adopts the anti-scratch toughened glass to design.

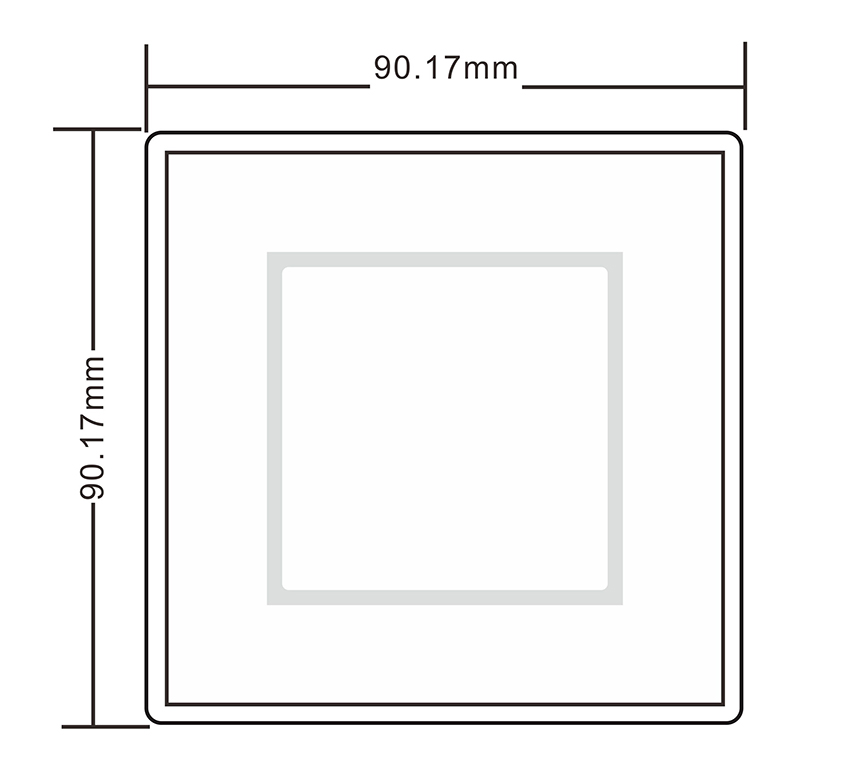

Product Size:

QR Code Card Reader Product Size

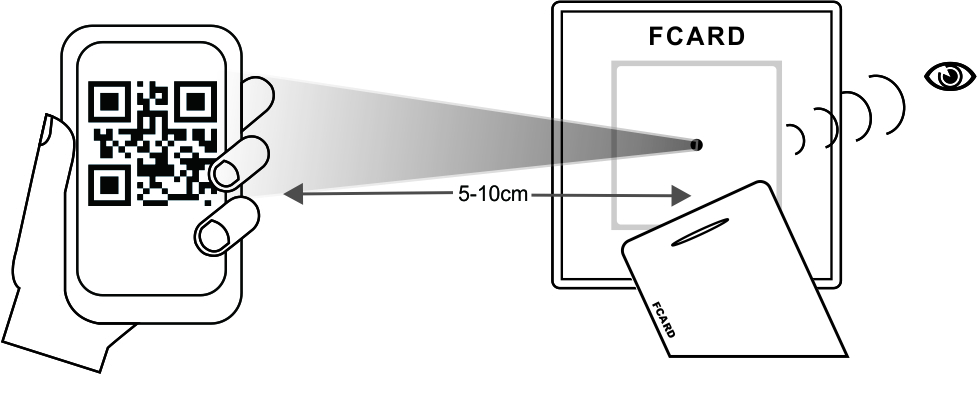

QR code reader scanning code schematic:

QR code reader scanning code schematic


Wiring Diagram:

QR Code Reader Wiring Diagram

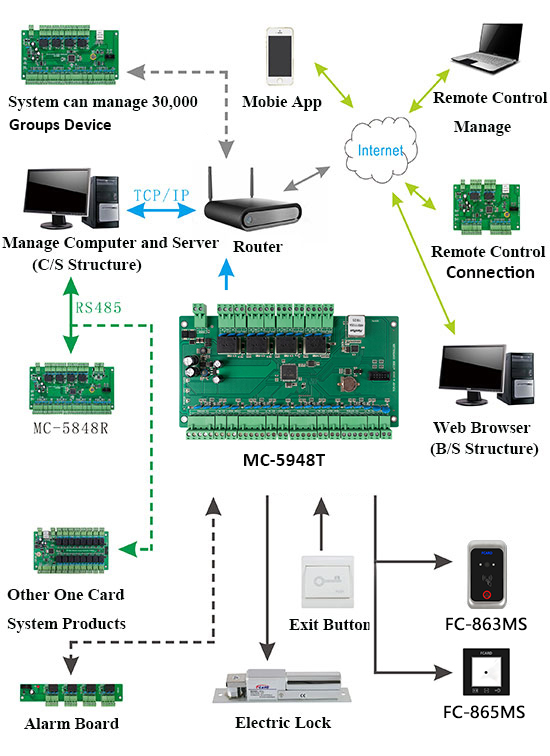

Wiring Connection Diagram

Wiring Connection Diagram

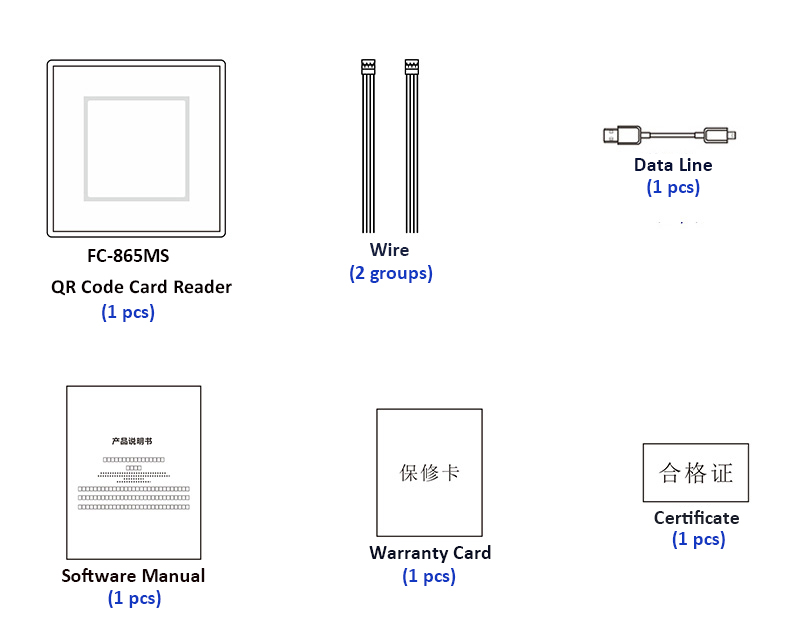

Parts List:

QR Code Reader Parts List
