FC-9500 Fingerprint Time Attendance Access Controller, ARM9 multimedia platform using FHighFin parallel high-speed chip, recognition algorithm using the latest high-speed hybrid recognition engine Finkey6.0, the recognition speed is increased by more than 3 times compared with the original version, 3,000 fingerprints, 80,000 records , adopts American Green fingerprint scanner, adopt super large fingerprint collection area of 16×14mm, support 1:N, 1:1 and other fingerprint comparison methods, and comprehensively improve the quality of fingerprint recognition.

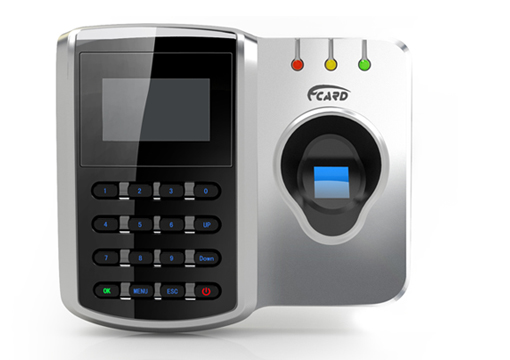

Appearance of fingerprint time attendance access controller:：
FC-9500 Fingerprint Time Attendance Access Controller, ARM9 multimedia platform using FHigFin parallel high-speed chip, recognition algorithm using high-speed hybrid recognition engine Finkey6.0, the recognition speed is increased by more than 3 times compared with the origninal version, 3000 fingerprints, 80,000 records, using The American Green fingerprint scanner adopts a large fingerprint collection area of 16 x 14mm and supports 1:N or 1:1 fingerprint comparison methods, which comprehensively improves the identification quality of fingerprint access control.
1. Multifunctional and voice prompt Smart time attendance access controller.
2. Latest wireless network communication technology.
3. Support fingerprints, password, RF card certification.
4. Using the embedded prompt with large storage capacity.
5. Using the latest fingerprint algorithm, fingerprint identification are faster and more accurate.
6. Built-in UPS backup power supply, support 2-6 hours working time.
7. Support Chinese (simplified/traditional), English, Korean and Thai.
Support multiple communication protocols: RS232/485/TCP/IP/USB wireless communication etc. (Optional)
Model: FC - 9500E, FC - 9500M
Power: 5W (max)
Recognize False Rate: < 0.0001%
Rejection Rate: < 0.01%
Input Voltage: DC 12V
Working Voltage: DC 5V
Alignment: 1: N, 1:1
Registration Method: fingerprint, password, ID card (optional)
Working Environment: temperature: 0 ~ 70 ℃, Humidity: 20 ~ 80%
Protection Environment: temperature: - 10 ~ 80 ℃, Humidity: 10 ~ 90%
Fingerprint Acquisition Area: 16 x 14 mm
Acquisition Angles Range: ± 45 °
Response Time: < 1S
The Fingerprint Registration capacity: 3,000
Records Management Capacity: 1,000
Attendance Record Capacity: 80,000
Communication Interface: RS232, RS485, TCP/IP, USB, 500m wireless communication
The Controller Interface Protocols: Simple Gating, Wiegand26, Bell
Dimensions: 219.5(L) x 40(W) x 197(H) mm
LCD Display/Voice Prompt: Chinese (simplified/traditional), Korean, English, Thai
The fingerprint time attendance access controller only needs to input fingerprints, card readers or passwords, according to the scheduled, it will automatically judge normal work, late arrival, early leave, normal end of get off work, etc. and record them. FC-9000 Fingerprint Time Attendance Access Controller supports multiple networking communication methods such as RS232, RS485, TCP/IP, USB, etc., multi-machine networking, suitable for large-scale time and attendance systems in offices or factories. Support remote multi-location management through FCARD3500, realize unified network access control and attendance of branches in different provinces, cities and regions.
The system structure diagram of FC-9500 Fingerprint Time Attendance Access Controller:

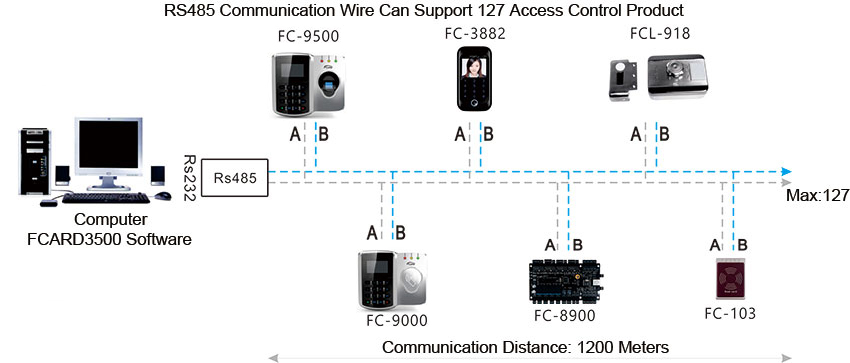

Network structure diagram of FC-9500 Fingerprint Time Attendance Access Controller:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
