  • Fingerprint &Time Attendance Access Controller

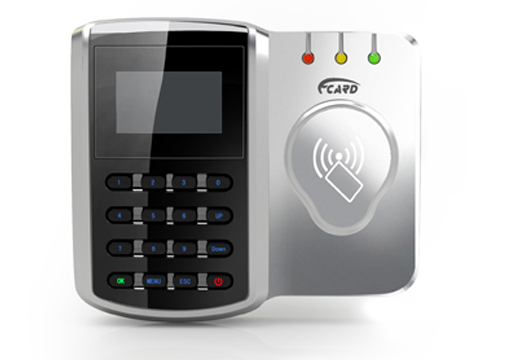

FC-9000 Series Fingerprint &Time Attendance Access Controller
FC-9000 series radio frequency card professional time attendance access controller is a new generation of induction time attendance access controller designed for factories, schools, office buildings, etc. This series of professional time attendance access controller adopt the latest 32-bit processor and process information faster.

The FC-9000 series time attendance access controller provides more attendance functions, and the flexible schedule function realizes management functions such as day shift, double shift, three shift, duty, etc., overtime, business trip, leave, and holidays. If the on and off hours are uncertain, you only need to calculate the working hours to use the flexible time and attendance function.

Product Introduction

Time Attendance & Access Control

FC-9000 series radio frequency card professional time attendance access controller is a new generation of induction time attendance access controller designed for factories, schools, office buildings, etc. This series of professional time attendance access controller adopt the latest 32-bit processor and process information faster.Using CMOS FLASH MEMORY memory, the data stored in the power-off state will not be lost for ten years, the memory capacity can store up to 80,000 data, and it can be expanded to 200,000 by adding memory.

FC-9500 series time attendance access controller supports RS232, RS485, USB transmission, TCP/IP or wireless communication networking. It adopts RS485 communication mode. The first-level network can connect 255 units, the longest communication distance is 1200 meters, and the transmission rate is 19200bps.

Support Chinese traditional and simplified operation, can freely choose Chinese (simplified/traditional), Korean, English, Thai and other display modes, and support simulated voice prompts for real people.Using 128*64 dot matrix liquid crystal display (backlight display), you can freely set the backlight normally closed and normally bright periods. The card data is stored safely, and the latest card-swiping record is automatically converted into a historical record and saved in the device after the collection is completed, so that the original record can be consulted at any time.

Product Parameters

Type: FC-9000E

Power: Maximum is 5W

Reading Speed: 0.1s

Reading Distance: 0-150MM

Registered Way: Password ID Card

Card Type: EM/ID Card

User Capacity: 3,000 users

Records Capacity: 1,000

Time Attendance Capacity: 80,000

The Power Supply Life: 2-6 hours

Language: Chinese、English、Korea

Communication Port: RS232、RS485(Others need to order)

Interface: Wiegand26

Voltage: DC 12V

Size: 219.5L x 40W x 197H mm

LED Display/Voice Prompt: Chinese(Traditional、Simple)、Korea、English、Thai

Working Temperature: 0-70 ℃ 0-70 ℃

Operation Humidity: 20-80% 20-80%

Type: FC-9000M

Registered Way: Password Mifare Card

Card Type: Mifare 1/ Mifare Card

Reading Speed: 0.3s

Reading Distance: 0-80MM

User Capacity: 3,000 users

Records Capacity: 1,000

Time Attendance Capacity: 80,000

The Power Supply Life: 2-6 hours

Language: Chinese, English, Korea

Communication Port: RS232, RS485(Others need to order)

Interface: Bell Wiegand26, Bell

Voltage: DC 12V

Power Consumption: 5W max

Size: 219.5L x 40W x 197H mm

LED Display/Voice Prompt: Chinese(Traditional/Simple), Korea, English, Thai

Working Temperature: 0~70

Operation Humidity: 20~80 %

Features of time attendance access controller:


The time attendance access controller provides more attendance functions, and the flexible schedule function realizes management functions such as day shift, double shift, three shift, on-duty, etc., overtime, business trip, leave, and holidays. If the on and off hours are uncertain, you only need to calculate the working hours to use the flexible time and attendance function. Four-line liquid crystal display, which can display information such as name, card number, time, etc., has its own clock and is consistent with the system clock.

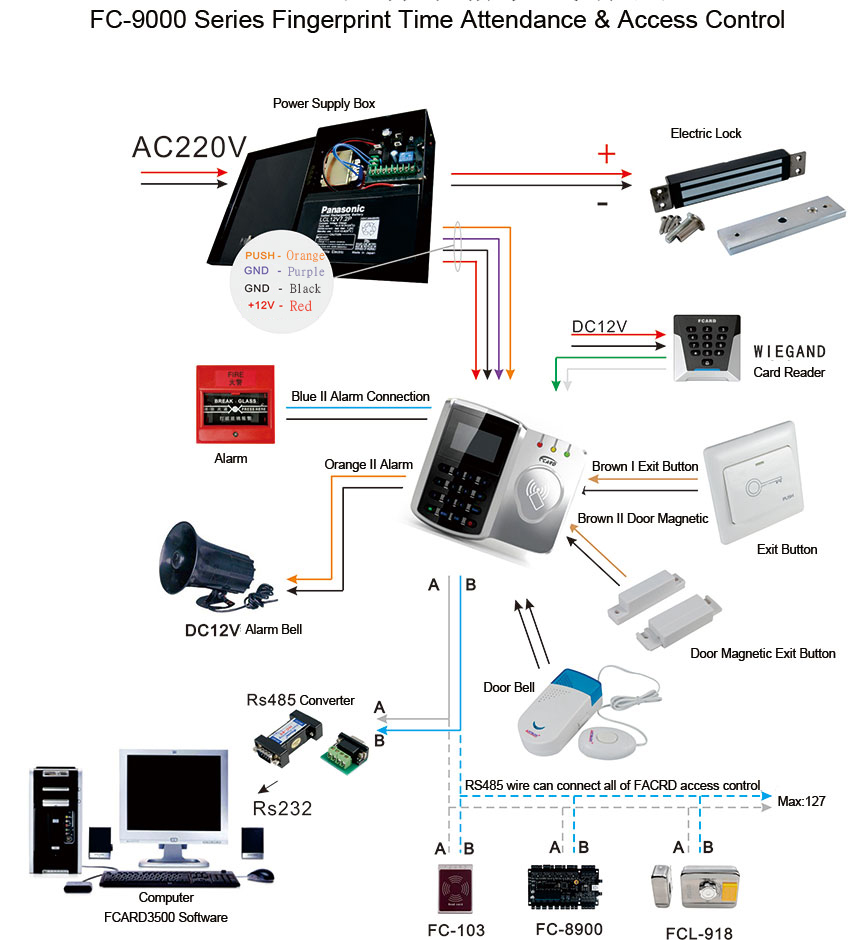

Fingerprint Time Attendance & Access Controller System Structure:

Access Control System Structure

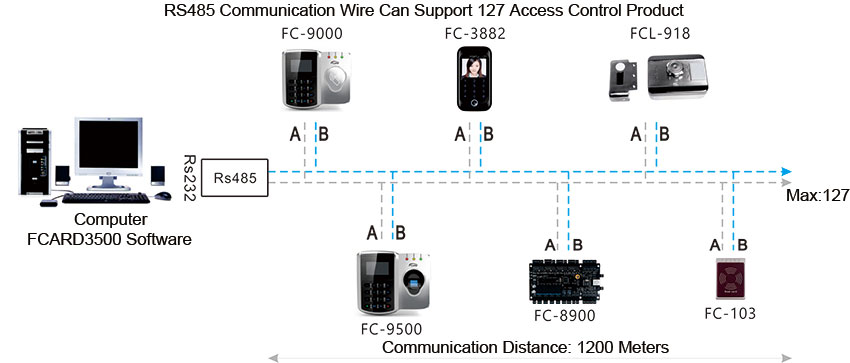

Fingerprint Time Attendance & Access Controller Internet Structure:


Access Control Internet Structure


Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller,guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
