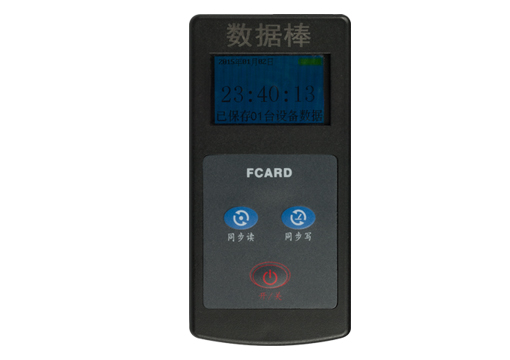

FC-4882M Data Collector
Using 3 rechargeable batteries, supports USB communication and charging, supports RS485 data exchange interface, support 100 devices database, support records collection, black and white lists written in, the clock updates. Using 4G data storage, it can save 10 million data records, one million black list. Memory life: 100,000 times erase data.

FC - 4882M is for one-card equipment which to data transmission and design of data acquisition instrument (also known as: data collector), it can support FCARD lots of series and types's data transfer working (specific see: support equipment type).

Product Introduction



FC - 4882M is for one-card equipment which to data transmission and design of data acquisition instrument (also known as: data collector), it can support FCARD lots of series and types's data transfer working (specific see: support equipment type). FC - 4882M can achieve data gathering without network, transmission parameters and data transmission time, upload the black and white list, etc., applicable to some all in one device with network limited.


Support Device:

FC - 8800A series, FC - 8900A series, MC5800R series, FC - 1882M, FC - 2882M, FC - 3882M, FCL - 988M, FCL - 8832A , FC-989M, MC - 5816A, also support the self-transferred system of other equipment: FC - 8610 series access control attendance machine, FC - 9000 series attendance machine, FC - S5000 series POS machine, FC - 3500 series water controller, etc.


Product Parameters

1、Data Port: USB、RS485

2、Size: 117*57*18mm

3、Management capacity: 99 groups device data (personnel and device parameters)

4、Management function: can write black and white list, collect cards data, transmission parameters;

5、Screen Display: 1.8 Inch color display screen;


6、Power Supply Mode: 3 section rechargeable lithium battery supply; USB supply, charge once time can collect 5-20 device data;

Support 1 groups RS485 communication port、100 groups device information database、support collect 100 sets device records data、support write in 100 sets device card's data、support write in 100 sets device time zone data、support USB charging、support 1.8 Inch color display Chinese.

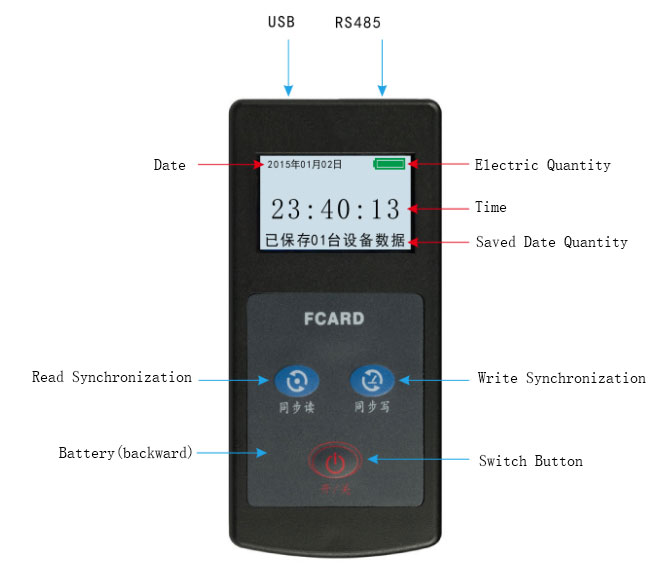

Outer Introduction:

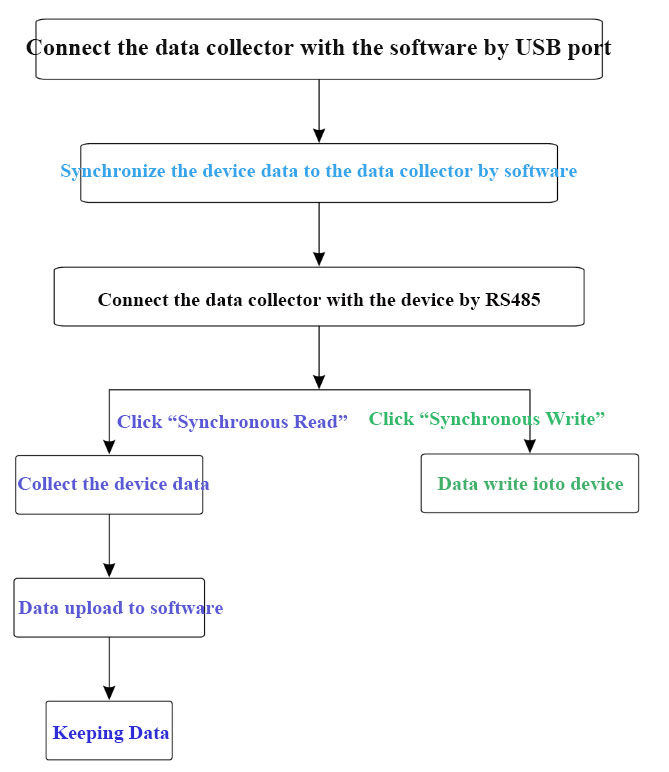

Working Process:

First connect the device to computer through USB communication port, let them can communicate with each other normally, select the device and synchronously download its data to data stick, so now the device has authority to manage corresponding device.

Connect the data stick to device by RS485 communication port, then click the synchronous read or synchronous write, to collect the device data or upload the data into device.





System Diagram:
