FC-901 access control power supply adopts high-power transformer, support DC12V3A output, use multi-level protection circuit, specialize to setting time delay control output, adjustable 0-15 second.
FC-901 access control power supply adopts high-power transformer, support DC12V3A output, use multi-level protection circuit, specialize to setting time delay control output, adjustable 0-15 second. Access control power supply 12V output adopts dual voltage design, so that the system is more stable. FC-901 latest design, support CONTROL signal input mode, support a variety of front-end equipment, support building intercom host signal input, PUSH unlock signal input.
FC-901 Access control power box suitable for building intercom, various enter/exit access controller and all electric locks, it can reduce the loading of access controller, save engineering wiring and reduce hidden trouble. Have NO/NC Output, can control all kinds electric locks. Time delay control circuit, unlock time is in (0-15)s, exit button input, can enable the electric locks directly.
Size: 180*78*65mm
AC Input: AC200/230V 50Hz
DC Input: DC12V
Delay: (Support)Adjustable

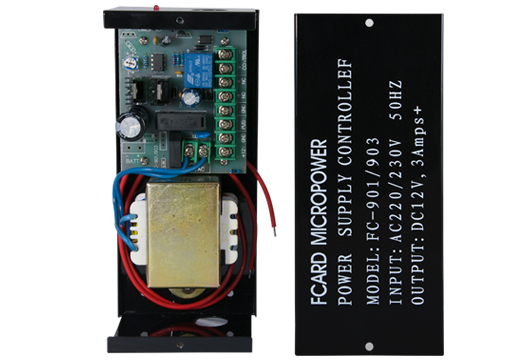

Appearance:
Functions:
1. Adopt multi pole insurance design.
2. built in dual voltage DC12V output.
3. Support PUSH- drive unlock.
4. Support relay switching control output.
5. Built-in adjustable knob lock delay 0-15 seconds.
6. Photoelectric isolation input unlock, support all kinds of building intercom.
7. support two groups working indicator, working instruction and battery instructions.

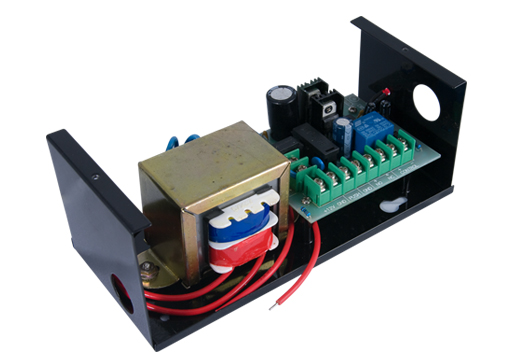

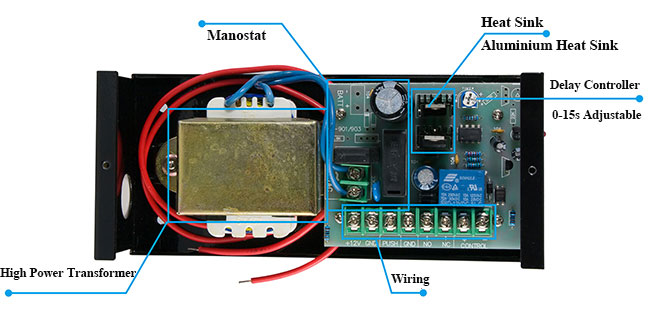

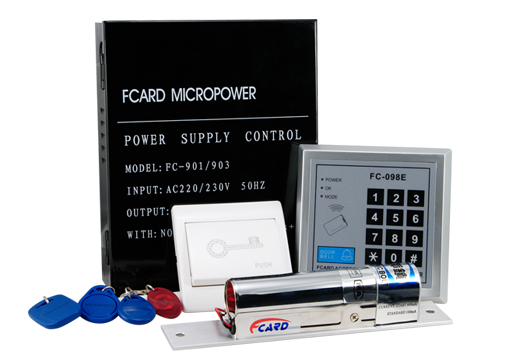

composition graph:

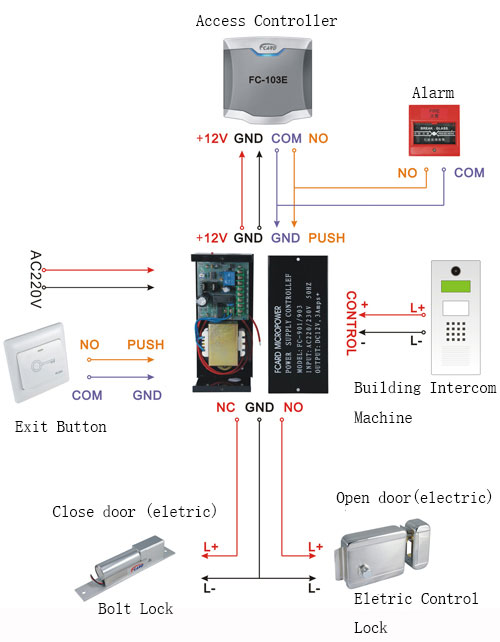

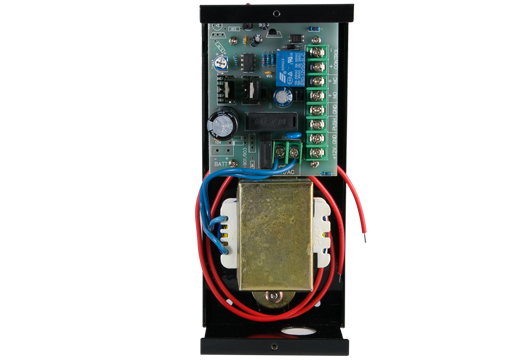

Wiring Diagram:
Cabling Instructions:
1-2: Regulated output DC12V,1 positive ,2 negative.
2-3: Open button connection terminal can be connected to switch output(relay output).
3: Low-frequency signal output,connected to access controller signal lines.
4-5: NO -GND,normally open no power output,trigger output DC12V-17V,4 positive 5 negative.
5-6: NC -GND, normally closed output DC12V-17V ,triggering power outages,6 are positive ,5 negative.
6-7: The high-frequency signal output, on the positive lock.
7-8: Connect the host building intercom lock signal input interface,7L +,8 of L - + 8,- 9 for the building intercom unlock signal,L +,L - input port, or as high as + 8 radio frequency input,- 9 is low frequency input(this only C plate)
