FC-803 Access Control Power Supply Support AC210-230V input, DC 12V 3A output, and unlock time delay 0~15s adjustable, NO/NC output, competible with all kinds of electric locks in market.

FC-803 Access Control Power Supply is high-grade electronic components, the use of international advanced manufacturing process technology processes,quality must be reliable.

Product Introduction

Access Power Supply

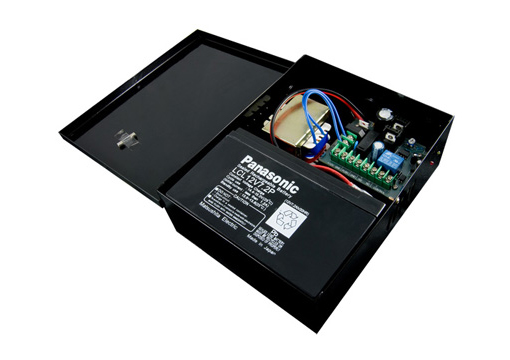

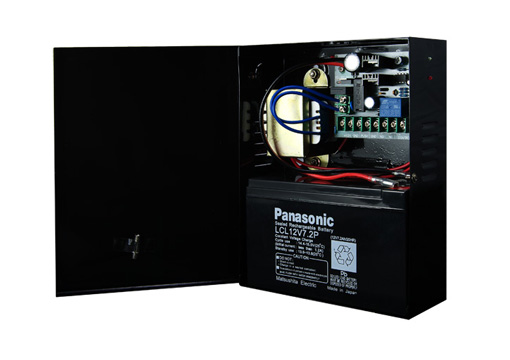

FC-803 access control power supply box is specifically designed for security system. FC-803 support AC210-230V working voltage, Access control power box maximum output is 12V3A working voltage, built-in UPS backup power supply management circuit and unlock delay circuit (0-15 seconds are adjustable). Relay normally opened and normally closed output, can support various electric lock. The power supply is absolutely use high-grade electronic components, advanced international technology manufacturing process, the quality is reliability.

Product Parameters

Product parameter

Name: FC-803 access control power supply

Intercom Door linkage: support

Operating current: 12V

Operating voltage: AC210V-230V

AC input: 220V/50HZ

DC output: stable voltage DC12V

Standard output: current 3A/5A


205mmH X, 165mmW, X 74mmD (large box)

180mm LX 80mmW X 60mmH (small box)

Access Power Supply


Adopt multi pole insurance design.

Built in dual voltage DC12V output.

Support PUSH- drive unlock.

Support relay switching control output.

Built-in adjustable knob lock delay 0-15 seconds.

Photoelectric isolation input unlock, support all kinds of building intercom.

UPS battery management, support 12V7.2Ah battery.

support two groups working indicator, working instruction and battery instructions.


1. AC input:220V/50HZ, DC Output:regulated 12V, the standard output current 3A/5A;

2. The direct control of the electronic locks, access control can reduce the load, interference, save project wiring, reducing failure risks;

3. Set NO/NC (normally open/ normally closed)interface,can control various types of electronic locks;

4. Set time delay circuit,lock time can be adjusted in the 0-15 seconds;

5. Automatic protection function,causing a short circuit when the circuit accident occurs, the power supply will be temporarily disconnected or burning fuse;

6. Remote control,remote control module can be inserted using the remote control to open the door remotely.(Remote from Leaving Wide ground without interference of 80 meters)


Dimensions:205mmH x 165mmWx 74mmD(large box)

180mmL x 80mmW x 60mmH (small box)

Cabling Instructions:

1-2: Regulated output DC12V,1 positive, 2 negative

2-3: Open button connection terminal can be connected to switch output(relay output).

3-4: Low-frequency signal output, connected to access controller signal lines.

4-5: NO -GND, normally open no power output, trigger output DC12V-17V, 4 positive 5 negative.

5-6: NC -GND, normally closed output DC12V-17V, triggering power outages, 6 are positive, 5 negative.

6-7: The high-frequency signal output, on the positive lock.

7-8: Connect the host building intercom lock signal input interface, 7L +, 8 of L - + 8, - 9 for the building intercom unlock signal, L +, L - input port, or as high as + 8 radio frequency input, - 9 is low frequency input(this only C plate)

Wiring Diagram:

Access Power Supply Wiring Diagram


FC-905 access control power supply is suitable for office, buildings, school dormitories, telecom rooms and other places. The power supply support NO, NC relay output and UPS management, support 0 to 15 seconds unlock delay adjustable time, can meet mostly host requirements. This power is applied to the building intercom, and kinds of access controller, particularly suitable for driving electric locks.
