  • Intelligent Sturdy Bolt Lock
  • Sturdy Bolt Lock
  • Bolt Lock

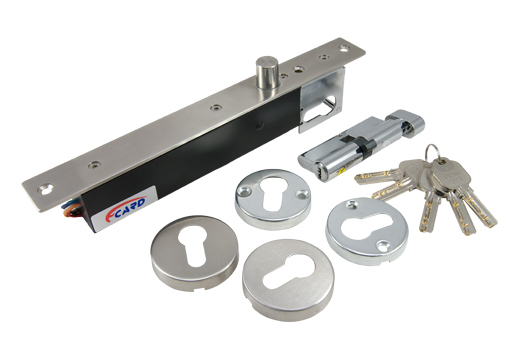

FCL-700A Intelligent Sturdy Bolt Lock
FCL series bolt lock for the public security access control system with high quality electric locks, this series is made of stainless steel material of the lock tongue.

Electric bolt lock is compatible with access control,door phone,remote control system.Suitable for all types of wooden doors,glass doors,metal doors, metal doors, including framed doors, hollow framed doors and frameless doors.

Product Introduction

Electric Bolt Lock

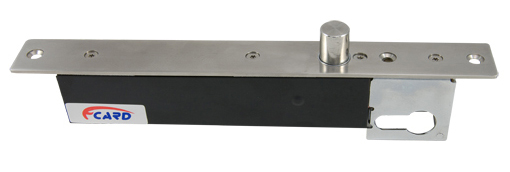

FCL-700A Electric Bolt Lock


Electric bolt lock is "FCARD ELECTRINIC" for the public security access control system with high quality electric locks, this series is made of stainless steel material of the lock tongue, which make the largest electricity mortise lock can withstand 800 kg to 2000 kg clash and not damaged, use DC12V operating voltage, power consumption is 100 ma (starting moment 900 mA).

Electric bolt lock is compatible with access control,door phone,remote control system.Suitable for all types of wooden doors,glass doors,metal doors, metal doors,including framed doors,hollow framed doors and frameless doors.


Product Parameters

Working voltage: DC12V+10%

Operation Temperature: -10 to 55℃

Humidity: 0-95%

Durable Design: Pass 200,000 testing

Weight: 1.3kg

Delay:0、3、6、9s adjustable

Low Consume: low temperature

Distance: within 10mm

Weight: 1.3KG

Lock Tongue: stainless steel, bear 2000KG pressure

Lock body: 260(L)*30(W)*48(H) mm

Application: Wooden, Glass and Metal Door

Low Consume: low temperature, firm and durable

Safe Style: Power On Locking, Power Off

Unlocking

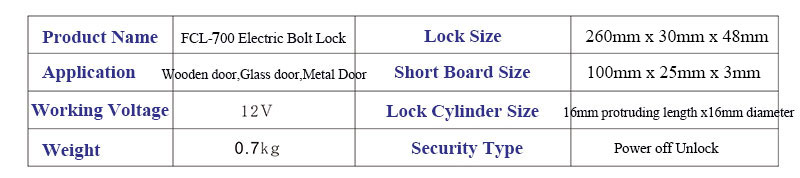

Product Size:

Electric Bolt Lock Size

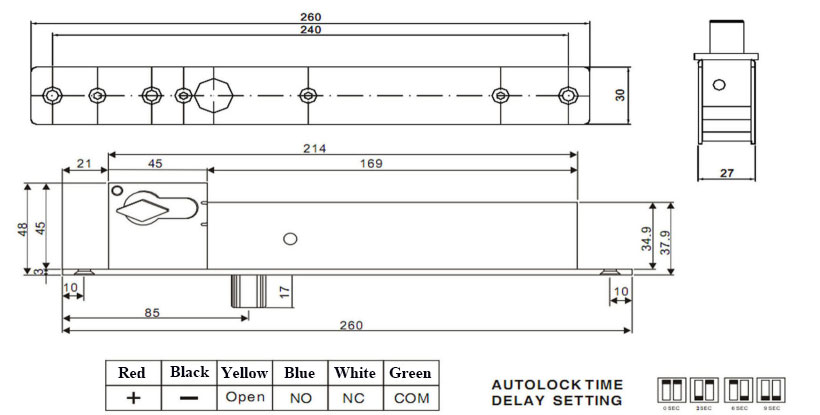

Dimension:

Electric Bolt Lock Dimension


Features:

1. Adopt integral aluminum alloy die-casting shell, it is safe and simple.

2. Working voltage 12V, starting current 950mA, working current 150mA.

3. Power on locked, power off unlocked.

4. Can be used with card reader, fingerprint machine and building intercom.


Functional characteristics:

1. High safety, outside interference after locked, damage prevention, more stable, more durable.

2. Use stainless steel cover piece.

3. With delay function, you can set the door lock delay time: 0s, 3s, 6s.

4. Stainless steel lock tongue, more firm, using point control magnetic force to open, closed automatic locked.

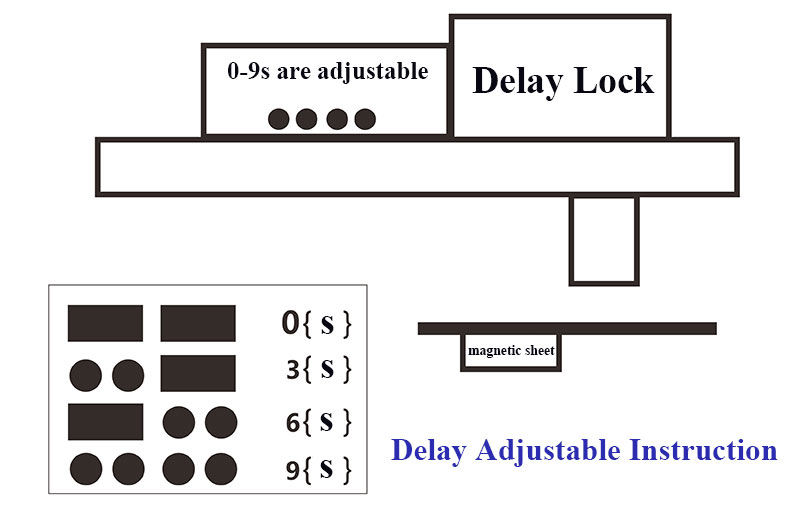

Delay Adjust:

Electric Bolt Lock Delay Adjust

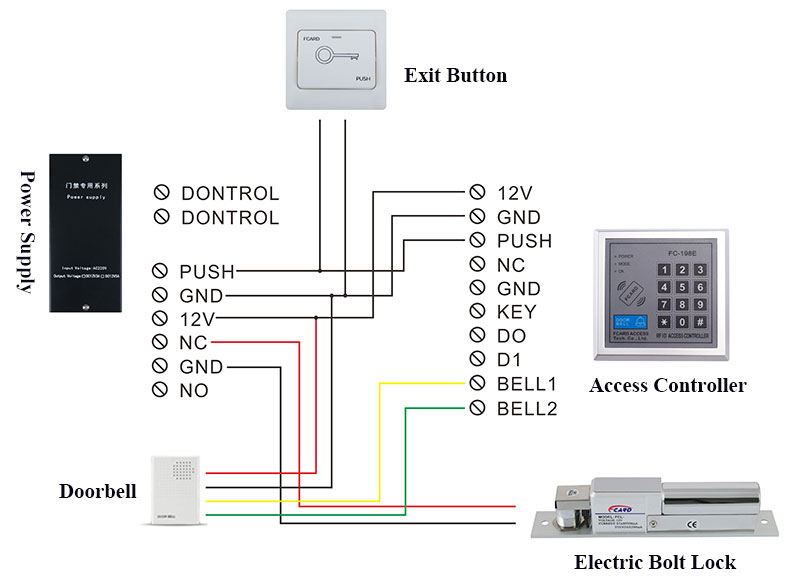

Wiring Diagram:

Electric Bolt Lock Wiring Diagram

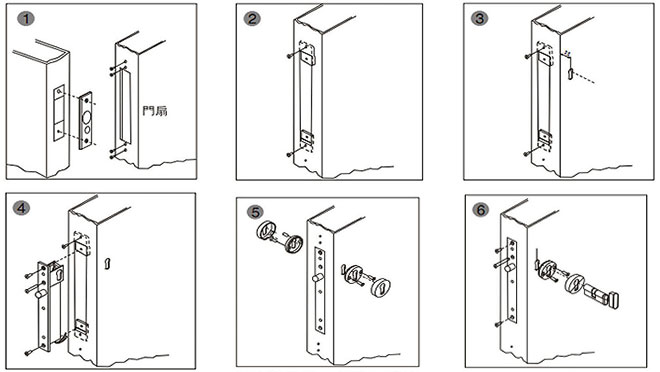

Installation Diagram:

Electric Bolt Lock Installation Diagram
