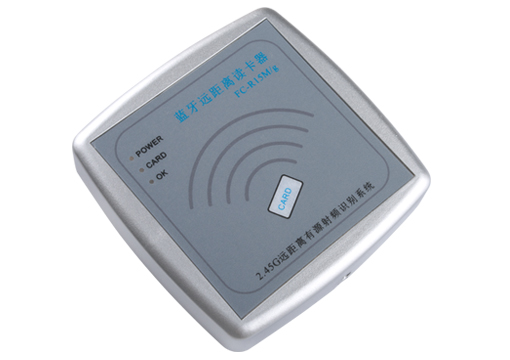

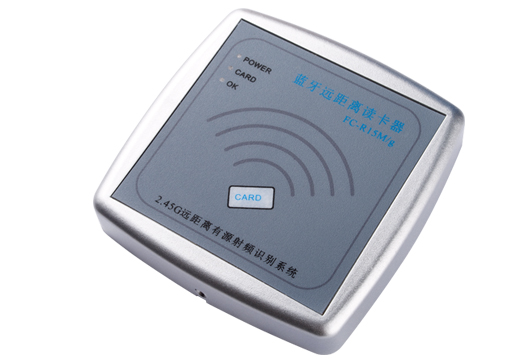

FC-R15M Single Door Long Range Access Controller
FC- R15M series long range access control is a long range card reader and access controller, FC - R15M can be used as long range card reader, also can be used as access controller.

FC-R15M long range access control built-in a set of 2.45G long range card reader, support 1-15 meters identification distance.Read card frequency (speed) and card distance can be set as you need.Built-in 20000 users storage, support legal card to open the door (relay outputs).

Product Introduction

Long Range Access Controller


FC-R15M long range access controller can be used as a access controller and card reader. It build in one group 2.45G long range card reader, support indentification distance from 1 to 15m. Reading frequency(speed) and reading distance can be set. Build in 20,000 groups user memory, support illegal card unlock(Relay output).

Suitable: Parking Lot System、Access Control System、Time Attendance System

Compatible with FCARD one card management system, support: access control、offline access control、time attendance、guard tour、POS、water controller、elevator access control、parking lot system etc.


Product Parameters

Working Voltage:DC12V

Current: <500mA

Temperature: -25℃-75℃

Humidity: 10%-90%

Reading Speed: 0.5S to 60S(Adjustable)

Identification: 1-15m adjustable

Sensor Distance: 0-150mm(ID), 1-15m(bluetooth)

Storage: 20000 Grounps

Reading Type: EM4100 Compatible format ID Card

Reading Type: Support FC-L2.45 compatible format bluetooth card

Wiegand Output: Wiegand26/34

Ground Control: support

Electic Lock Drive: 7A

Offline Operation:Support

Size: 116x116x20

Issue/Delete card: issue card by Internal button
