FC-7012E Video Door Phone
FC-7012E Video Door Phone adopts advanced technology and latest chip, which greatly improves the stability and durability of the system. It has access control function.

Video Door Phone is manufactured by FCARD, it uses 4 core design and support unlock by card, password, card+password and indoor unit.

Product Introduction

Video Door Phone

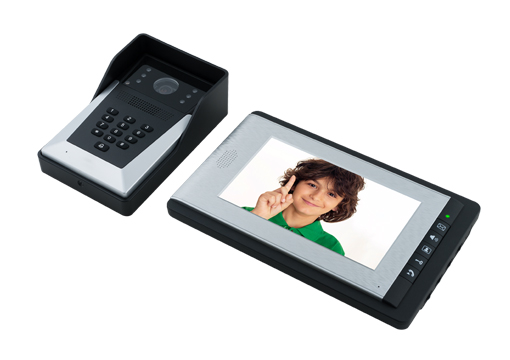

FC-7012E Video Door Phone


Introduction:

Video Door Phone is manufactured by FCARD, it use 4 core design and support unlock by card, password, card+password and indoor unit. Have door access control function, the programming can operate on keypad, very easy and convenient. Self-lock access control keypad, users can set the error times and locking time to prevent people detect the open password; Tamper alarm function, if remove while working it will sound; Maximum storage to support 1000 cards, use nonvolatile memory, still keep the cards data when power cut. Our products use advanced technology and latest cores which can improve the products stability and durability, at the same time, make the transmit distance further more. It suitable for residential, villa, office and public buildings etc.


Product Parameters

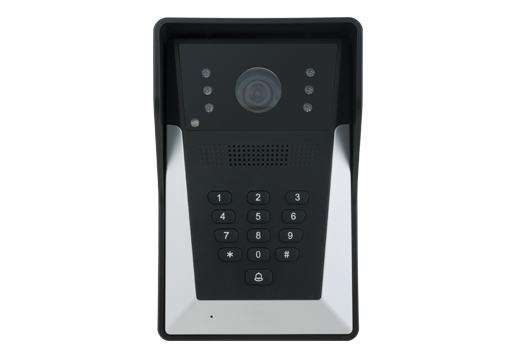

1) Outdoor Unit

Working voltage: DC9-15V(suggest14V)

Working current: <200mA

Working temperature(℃): -40-55

Working humidity: 10-90%

Viewing Angle (°): 150

Night viewing: IR light

Read card type: EM format ID card

Power locks type: Powered open door,Powered close door.

Open locks way: Indoor control,password,proximity card,proximity card+password

Size: 210mm*118mm*20mm

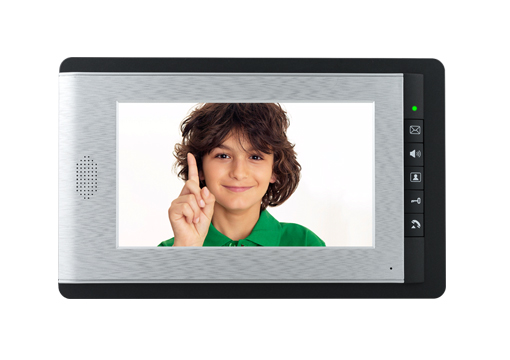

2) Indoor Unit

Working voltage: DC9-15V

Working current: <=500mA

Working temperature(℃): -40-50

Working humidity:10-90%

Power:standby: <0.5w working:<10w

Display screen: seven-inch color screen

Automatic closing time: Monitoring: 30s, Intercom :60s

Mounting: Wall Mounting

Size: 243mm*152mm*28mm

Features:

1. Have hands free and monitoring function;

2. Visitors call, will display automatically;

3. High-fidelity visual Intercom,good quality in intercom;

4. Use high definition camera and latest 7inch LCD screen,besides,advanced and reasonable circuit design,image displayed are clearly,steady;

5. Have IR light;

6. Outdoor unit can connect two indoor unit under without Tractor box;

7. Have independent standalone access control;

8. Easy wiring ,convenient install and maintain easily.

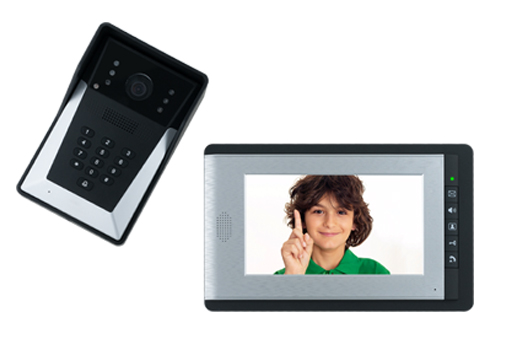

1. Appearance:

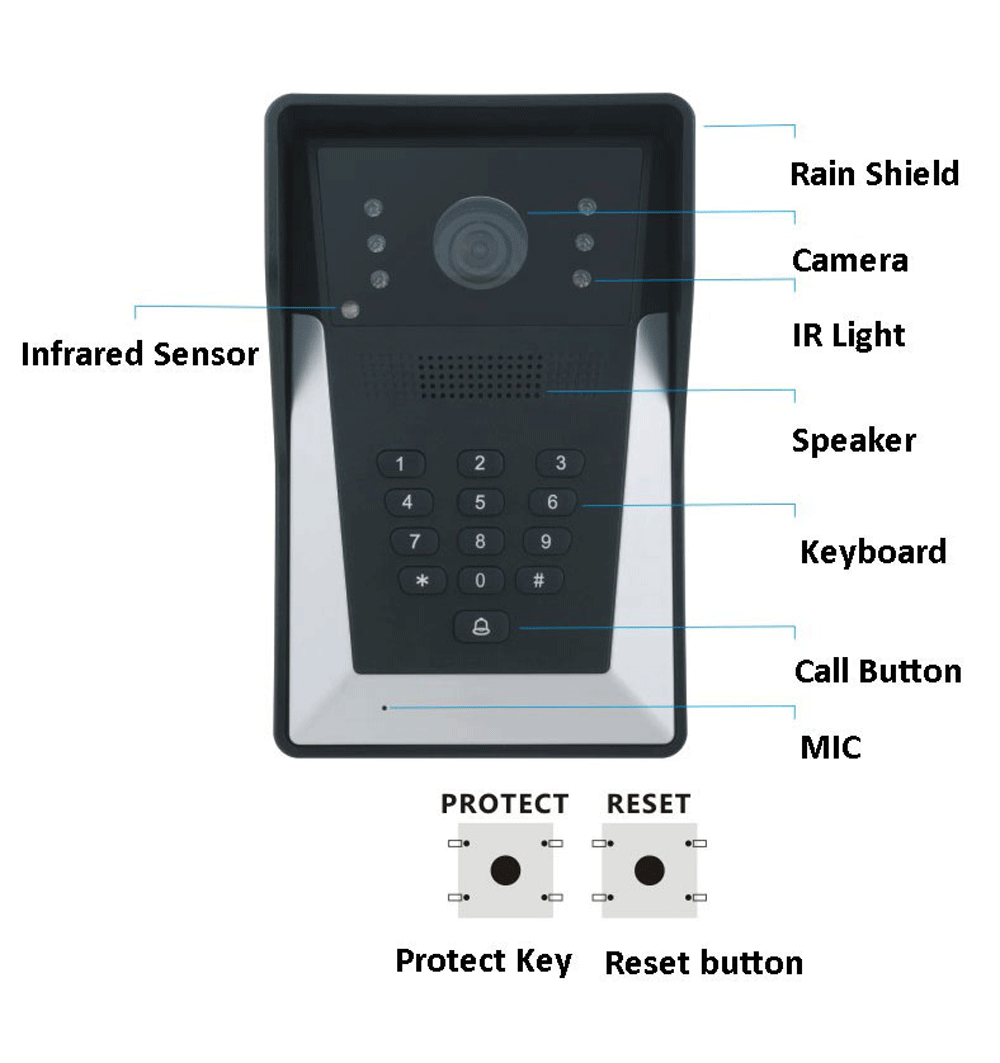

Video Door Phone Outdoor unit introduction

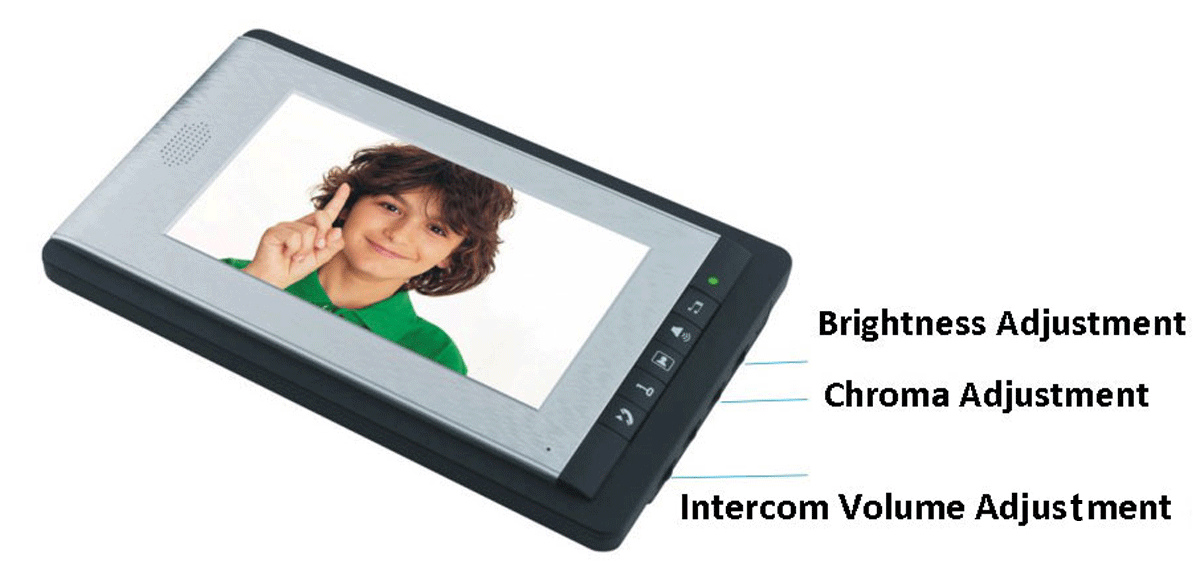

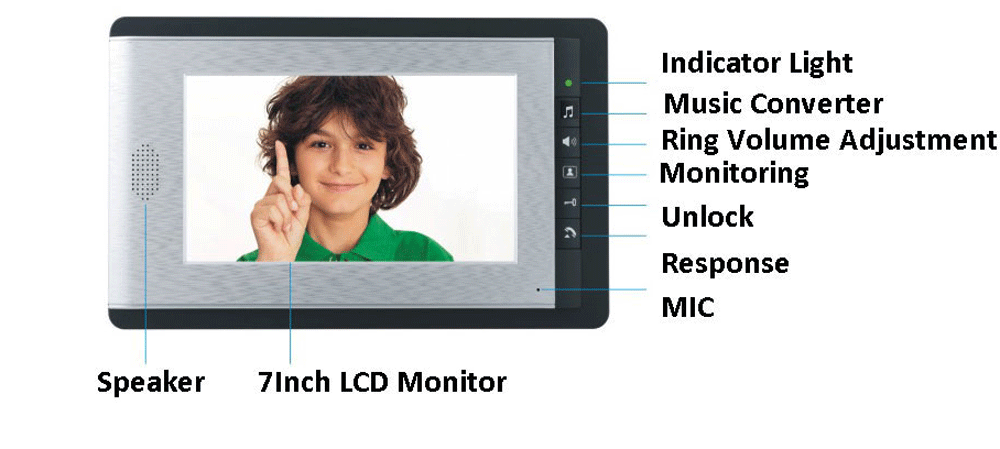

Video Door Phone Indoor unit introduction

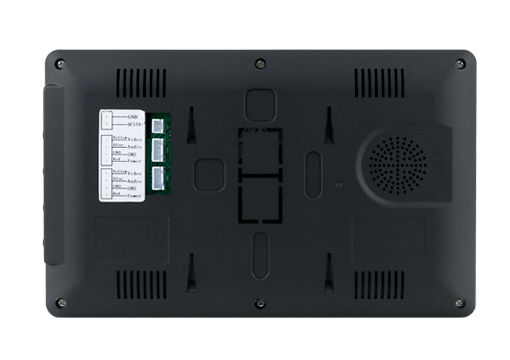

Video Door Phone interface



2. Structure Diagram:

Video Door Phone Structure Diagram

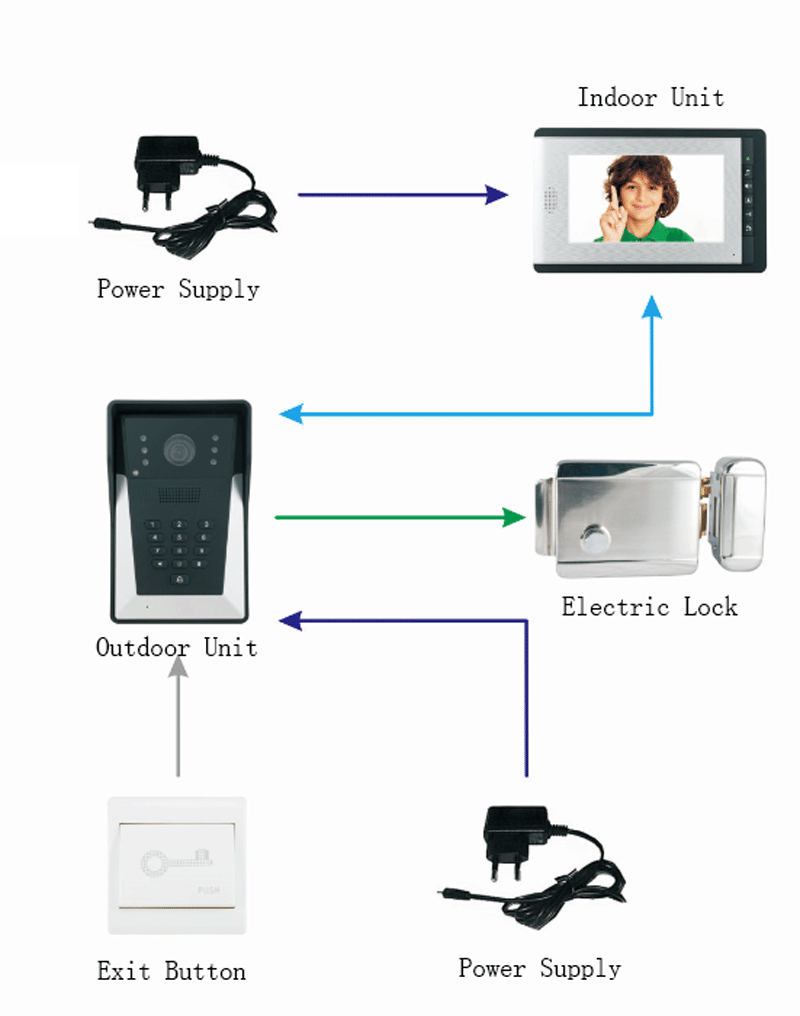

3. Wiring Diagram

1) Connect with Electric Bolt Lock.

2) Connect with Electric Control Lock.

Video Door Phone Wiring Diagram

4. Installation Diagram

1) Outdoor Unit

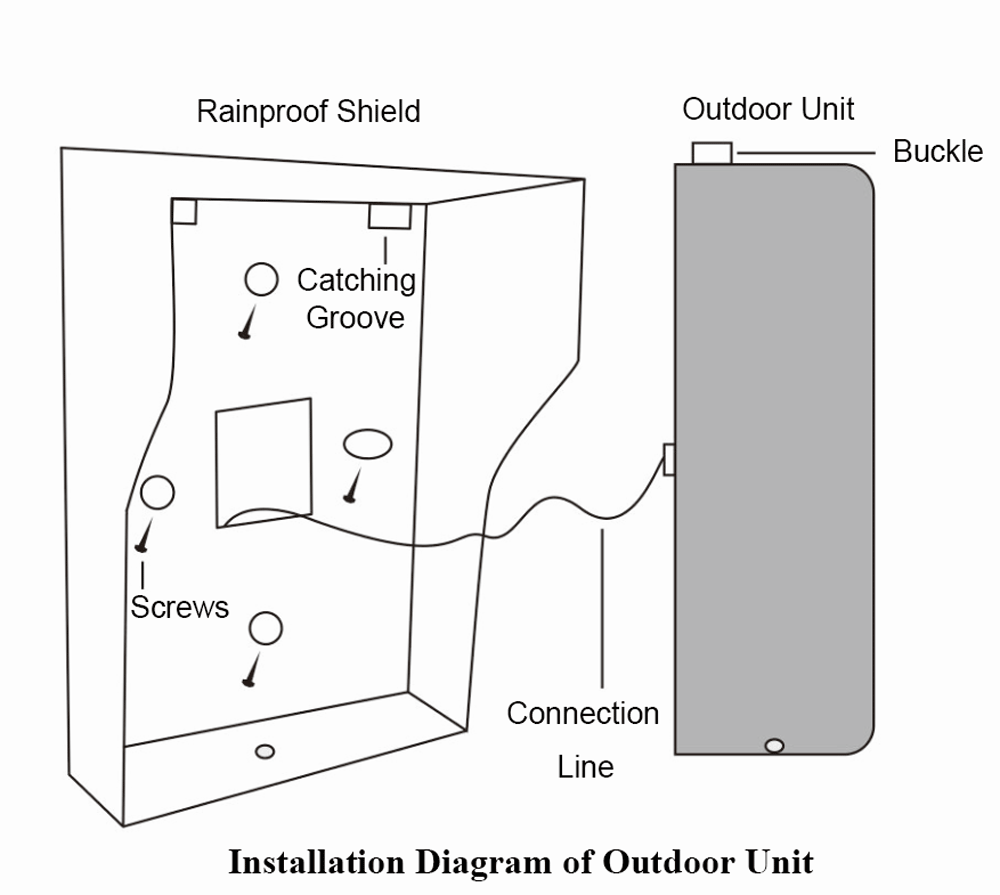

Video Door Phone Installation Diagram of Outdoor Unit

2) Indoor Unit



Caution:

1. Make sure that the camera lens is not pointing directly at the sun or at a reflective surface

2. The wire between indoor and outdoor unit's do not too long and too thin when installed.

3. Normally working range of voltage is DC12V-15V, the power line not too thin.

4. Do not connect many power plugs in a socket.

5. Please unplug the power line if didn't use it for a long time.

6. Do not put the video door phone system close to strong magnetic field.(such as:motor,radio etc.in case to affect the call quality.

7. Do not spray water or other liquid to the video door phone directly.(mustn’t operate the device in wet hand)

8. Do not attack the video door phone.

9. Do not install the video door phone in the place where is near hydrogen and toxic gas.

10. Do not use detergent or other chemical solvents to clean the equipment body and screen .(users can certificate the camera and screen by use soft cloth to maintain the quality of image.)


Compatible with FCARD one card management system. Support: Access Control System, Offline Access Control System, Access Control & Time Attendance, Guard Tour,Canteen POS System, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card management system with one card and one database.
