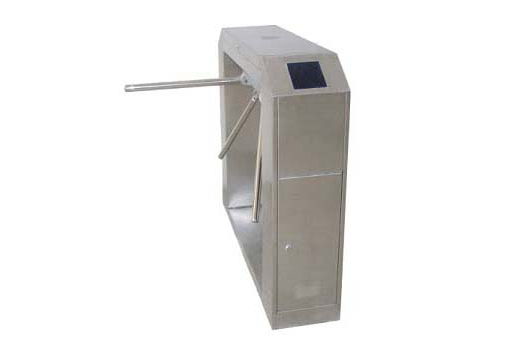

The tripod turnstile is an intelligent channel management device developed, developed and produced by our company, by configuring different access control device, the intelligent control and management of the passage can be completed.

The shape of the whole product is stamped and formed by stainless steel board, which is beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside, which can easily integrate barcode cards, ID cards, Mifare cards and other reading and writing devices on the device, thereby providing an orderly and civilized way for entry and exit, and prevent illegal entry and exit. At the same time, in order to meet the requirements of the fire passage, power outages and poles are cut off in emergency situations to organize evacuation. Cooperating with the ticket sales management system developed by our company, it can meet the needs of park automatic ticket checking.

Product Advantages:

1. The movement design is reasonable and reliable, the noise is low, the internal hydraulic device automatically buffers, the operation is stable, and the service life is long.

2. It has the function of power-off and rod-dropping, and a remote control can be added to control the rod-dropping, which is convenient for management and handling of emergencies.

3. With direction prompt LED lights.

4. The function of "with memory" or "without memory" can be set (when set to "with memory", it can be used for the occasions where there are too many people in the scenic spot to swipe the group ticket once).

5. With automatic reset function, that is, after obtaining the gate-passing access level, if there is no gate-passing within the set time, the tripod turnstile will automatically cancel this access level and return to the locked state.

6. Waterproof, sunscreen, cold and high temperature resistance.

7. It has a personalized installation interface, compatible with various smart cards such as Mifare and ID cards.

8. It has a unified and standard external electrical interface, which can be freely connected with various reading and writing device, which is convenient for system integration.

9. It can be expanded into an automatic identification system to realize functions such as access control, time attendance and charging.

10. It can be used in conjunction with other types of channel products.

System Functions:

1. A unique intermittent sheave mechanism is used to realize the zero locking and unlocking of the turnstile.

2. The whole system runs smoothly, with low noise and no mechanical shock.

3. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use.

4. There are a variety of working modes to choose from, including bidirectional card reading and current limiting, while reading the card while prohibiting traffic in the other direction, while reading the card while passing freely in the other direction, and the turnstile operating mode can be through the control board button to set, no need to change the mechanical structure.

5. With the function of falling off the pole after power off, and automatically up the pole after power on.

6. It has the functions of long-distance control of falling and up poles to meet the special needs of users and fire safety requirements.

7. It has a unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration, and can be remotely controlled and managed through the management computer.

8. It can automatically count the number of people passing by in the direction of traffic, and there is LED display.

9. It has a clear pass instruction function, which can indicate to passers whether pass or not pass in an intuitive way.

10. With card reading memory and no memory functions, and users can set according to their needs through the control board buttons.

11. Through software setting, the total number of personnel inside the place can be limited to meet the special requirements of some special occasions.

12. With automatic reset function. After the card is read, if the passer does not pass within the specified time, the system will automatically cancel the passer’s current pass access level, and the restricted pass time can be set by the administrator.

13. With anti-drilling and anti-climbing alarm function (optional).

Applications Occasion:

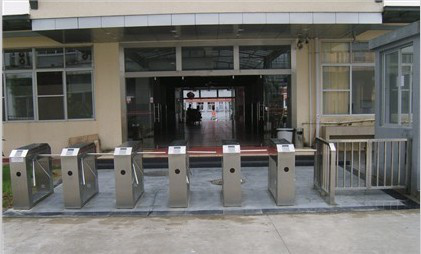

Uses: used for pedestrian passage and ticket management, suitable for: airports, subways, libraries, office buildings, theaters, and office buildings. It can be used in conjunction with various card reading, automatic ticket checking, fingerprints and other systems (which can effectively prevent personnel from trailing in).
