FC-8840A Four Doors Access Control Board

Four-way access control board FC-8800 series access control board not only has common access control functions, it also provides some practical functions that other similar products on the market do not have or rarely have. For specific functions, please refer to the product "function introduction".

Related Download

Product Introduction

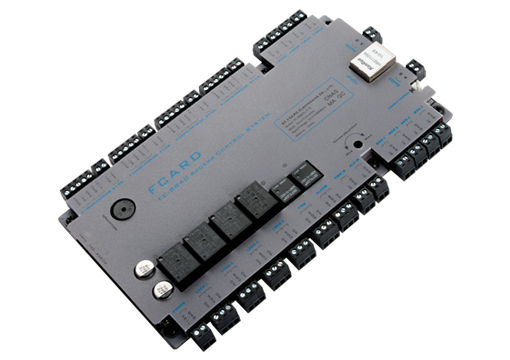

Four Doors Access Controller

Four-way access control board FC-8840A is a new generation of intelligent network access control products. The network processor is combined with the development and design of mass storage to realize the real networked data exchange, high-speed data calculation and user data management. FC-8800 series access control board not only has commonly used access control functions, it also provides some practical functions that other similar products on the market do not have or rarely have. For specific functions, please refer to the product "function introduction".

FC-8800 series access control products mainly include: FC-8610 professional time attendance access controller, FC-8810 one door access control board, FC-8820 two doors access control board, FC-8880 base station two doors access control board, FC-8840 four doors access controll board, FC-8832 elevator access control board etc., a total of 16 models. The suffix of the product model is A-type controller, which means it adopts RS485+TCP/IP dual communication mode; the suffix is R-type controller which means it adopts RS485 communication mode; the suffix is W-type controller means it adopts microwave high-frequency wireless communication mode. All the above models can be mixed and networked regardless of the communication method, and managed through a set of software to realize the real one card pass management application of one card and one library.

All of the above models can use FCARD3500 a one card pass management system software. The system supports ACCESS and SQL databases, local connection communication, and remote Internet communication.

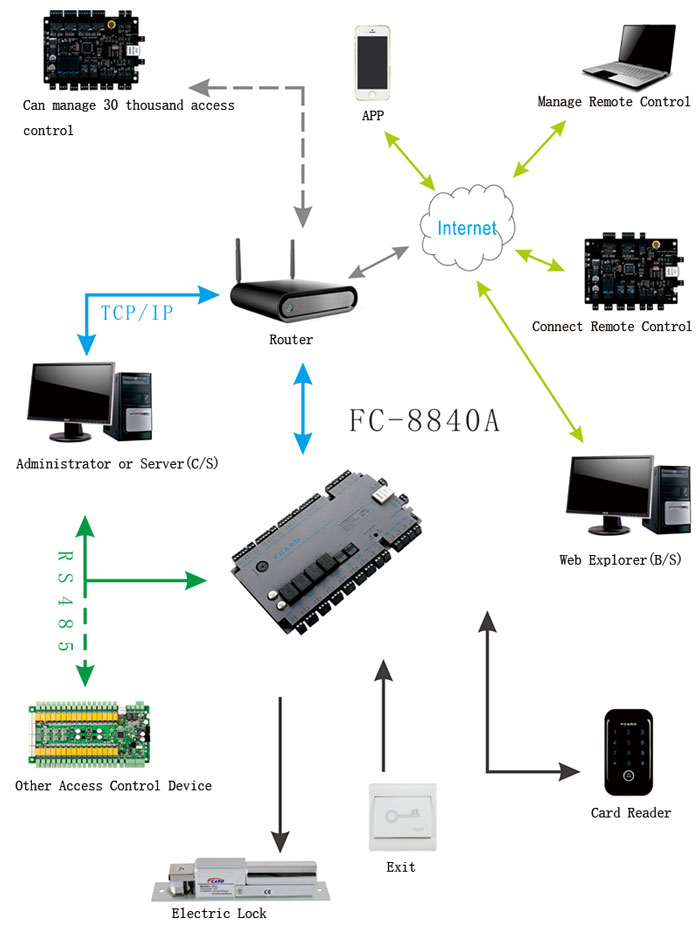

Four Doors Access Controller Matching

Product Parameters

Model: FC-8840A

Door Number: 1

Oper.Temp: -25℃-70℃

Humidity: 10-90%RH

Voltage: DC12V <500mA

Capacity: 156k users, 250k records

Upgrading: 312k users, 500k records

Off Power Safe: Flash memory available, 10 years

Data Protection Preservation

Wiegand I/O: Wiegand 26/34

Port No.: 2 Wiegand card reader ports

Distance: 100M communication distance

Other I/O: 1 push button&1 magnet release

Lock Relay: 1 set

Current: Max 250V, 6A

Alarm Relay: Two group

Language: Chinese (Pre-set), English, Cantonese

Other Language could be pre-booked

System Function

The FC-8880T base station two doors access control board also supports remote base station intelligent reporting, inbound and outbound monitoring, 6 in and 6 out monitoring control point expansion ports in the station, and TCP/IP, GPRS or 3G communication can be selected. Common functions of computer rooms and base stations such as entry and voice navigation.

Common Function

Professional Function

New Function

Offline operation, card reader to open the door, password to open the door, time control password valid, card reading + password to open, time control card reading + password valid, manual input of card number + password to open, first card to open, normally open card to open, remote open, remote Door closed, timed door open, time period normally open, real-time monitoring, abnormal monitoring, electronic map, duress alarm, fire linkage, police alarm, intrusion alarm, illegal card reading alarm, lost card report, blacklist card reading alarm, door open overtime prompt/ Alarm, anti-passback back and trailing prevention, batch upload, small amount upload, double door interlock, multi-door interlock, multi-card door opening, keyboard operation, emergency door closing, access control and attendance, 64 groups of door opening periods, holidays, etc.

Card return, record repair, anti-detection lock, card reading verification, full card door opening, full card door opening + automatic registration, IC card data writing, main board buzzer switch, clock self-repair, internal and external authentication opening, 3+1 Authentication door opening, query of the number of people in the door, telephone connection notification after alarm, the number of days the device has been running, remote hardware program upgrades, etc.

In addition to the above functions, we have also added technologies that are not available or rare in other similar products on the market, such as: card reader circuit abnormality detection and prompt, voice prompt guidance, system environment temperature detection, input Power supply temperature monitoring, trial period, online access guard patrol, advance reminder of card expiry date, intelligent clock error self-correction every day, exit switch controlled by time period, remote card reading and photo taking, anti-theft alarm host function, card reading interval setting, door sensor New functions such as alarm time period management, communication encrypted data, card valid times, self-expanding capacity, and Wiegand keyboard issuance. FC-8800 series access control board is one of the most advanced access control products at home and abroad.

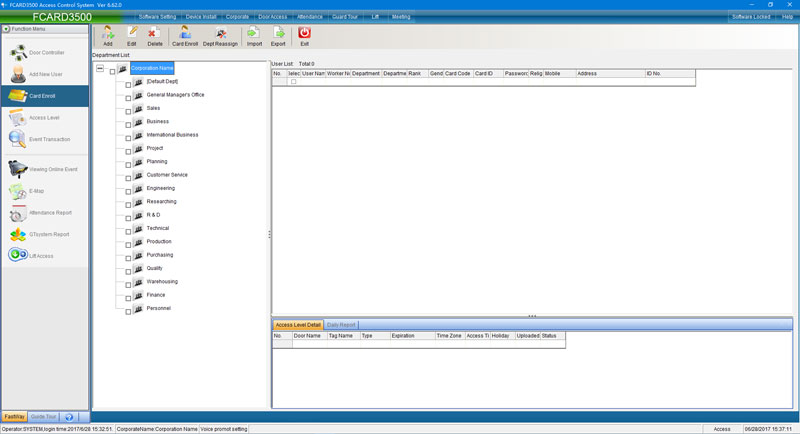

Software Photoes:

Four Doors Access Controller Software Photoes

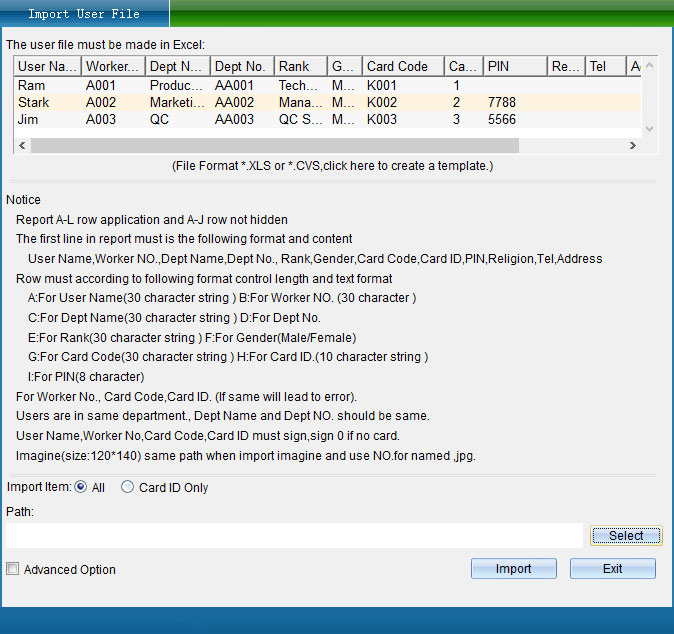

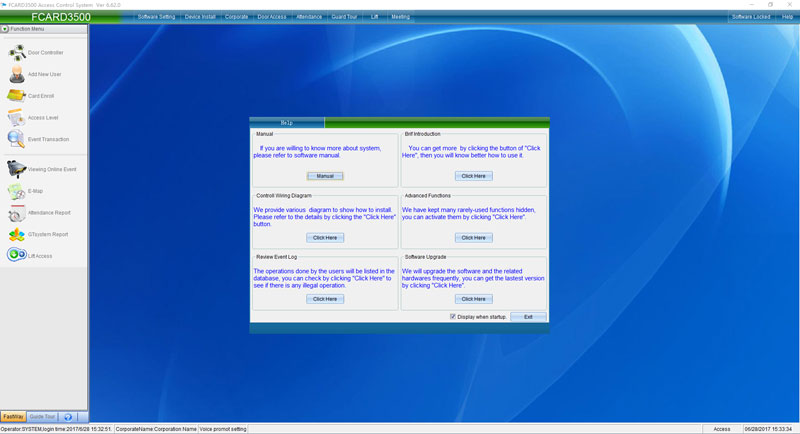

Software Photoes

Four Doors Access Controller

FC-8800 series controller adopts FCARD3500Ver6.30 or above one card pass management system as the system software. The system software supports SQL and ACCESS databases, and supports WIN XP, WIN 2003, WIN7 and other system platforms.

FCARD3500 one card pass management system adopts nine modular structure design: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module, consumption management module equal to one.

Parameters:

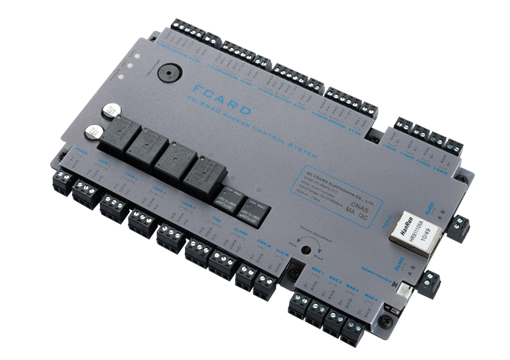

Four Doors Access Controller

Four-way access control board can manage 4 doors, support 52,000 user records, 200,000 event logs (can storage reading, alarm, push button, door sensor, system operation etc records) provide 4 lock relay output(4 lock relay output, 2 alarm relay output), 4 door sensor, 8 WG26, 34 interface, 2 RS485 and 1 TCP/IP, support DC9V-14V, working current < 300mA. This controller provides all the functions marked above "System Function".

This series products all has RS485, TCP/IP interface, Chinese voice, fire alarm input and output, bandit alarm input and output, temperature monitoring, voltage monitoring, fault reset, multi machine simultaneous communication and other functions.

Accessories:

Four Doors Access Controller

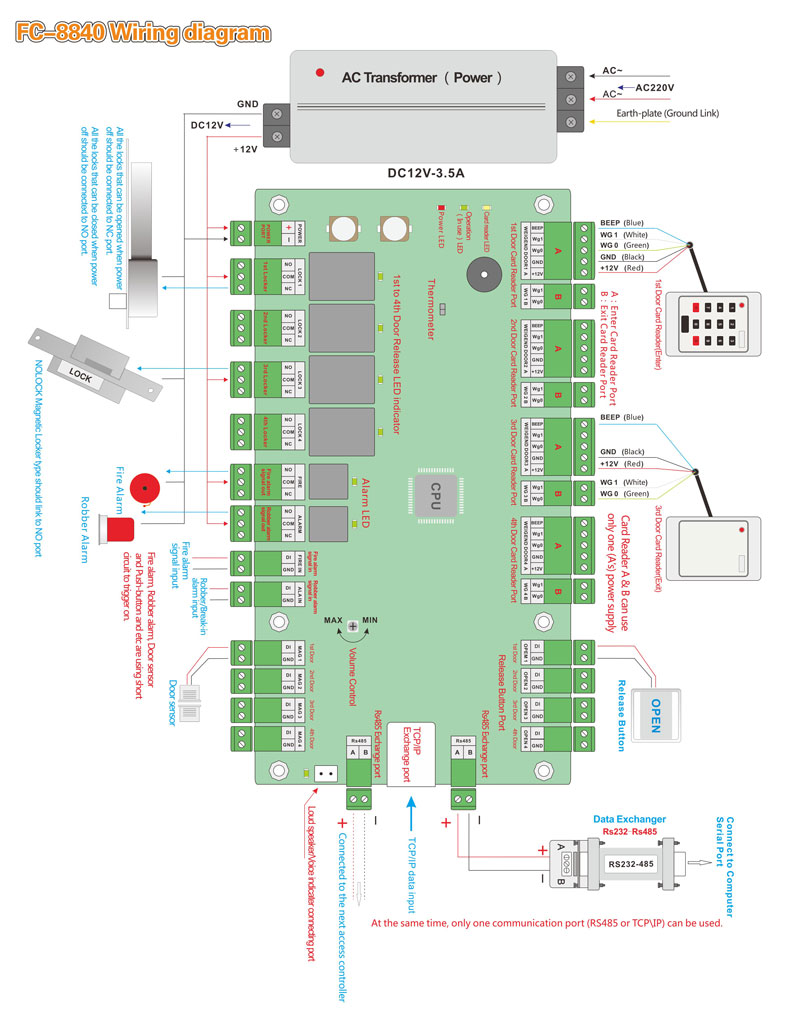

Wiring Diagram:

Four Doors Access Controller

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
