FC-2812M Mifare Card Embedded Access Control Board
FC-2812M Mifare card embedded access control is a multi-functional intelligent embedded access control specially designed for electric door locks and security systems and has been upgraded many times. It is mainly used with building intercom hosts. FC-2812M supports proximity cards (EM compatible ID card, MF1 compatible Mifare card, HID format ID card) to open the door, wireless remote control to open the door.

The FC-2812M embedded access control programming setting is carried out directly on the infrared keyboard, which is convenient to operate, simple to use and high in safety. It has the functions of adding and deleting cards, and it is convenient to add and delete cards; FC-2812M has a user capacity of 21,000 users (standard 1,000 users), using EEPROM storage, and information is stored for 10 years without loss.

Product Introduction

IC Card Embedded Access Control Board

FC-2812M Mifare Card Embedded Access Control Board


FC-2812M Mifare card embedded access control is a multi-functional intelligent embedded access control specially designed for electric door locks and security systems and has been upgraded many times. It is mainly used with building intercom hosts. FC-2812M supports proximity cards (EM compatible ID card, MF1 compatible Mifare card, HID format ID card) to open the door, wireless remote control to open the door, the FC-2812M programming setting is directly carried out on the infrared keyboard, easy to operate, simple to use, and high in security. It has the functions of adding and deleting cards, and it is convenient to add and delete cards. FC-2812M has a user capacity of 21,000 users (standard 1,000 users), using EEPROM storage, and information is stored for 10 years without loss.

Product Parameters

Working Voltage: DC9-15V

Working Current: < 120mA

Working Temperature: -10℃-75℃

Working Humidity: 10-90%

Reading Speed: < 0.2 s

Reading Distance: 0-80mm

Control Output: Dry node relay output, max current 3A

User Capacity: 1000(Can be extended to 21,000)

Exit Switch: Support

Enter/Exit Reading Card: Support

Door Sensor Alarm: Support

Fire Alarm Linkage: Support

Admin Card Manage: Support

Data Backup: Support

Wireless Remote Controller: Support

Alarm Output: Support

Offline Used: Support

Wireless Remote Controller: Support 315MHZ wireless remote controller unlock

Issuing Device: IR remote controller, Admin card issue card

Size: 90L x 55W x 16H mm

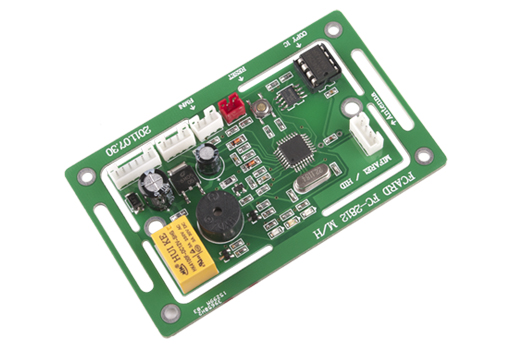

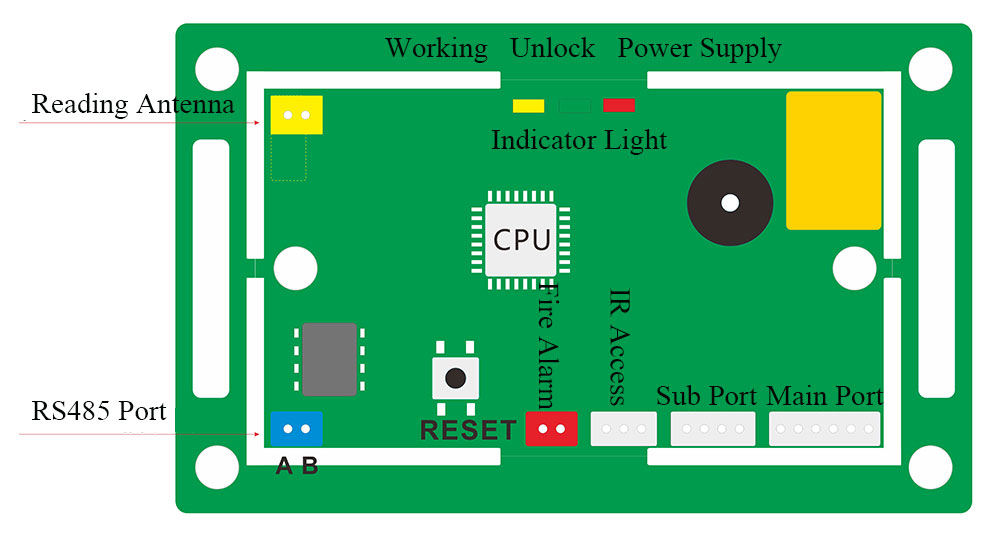

Appearance:

IC Card Embedded Access Control Board Appearance

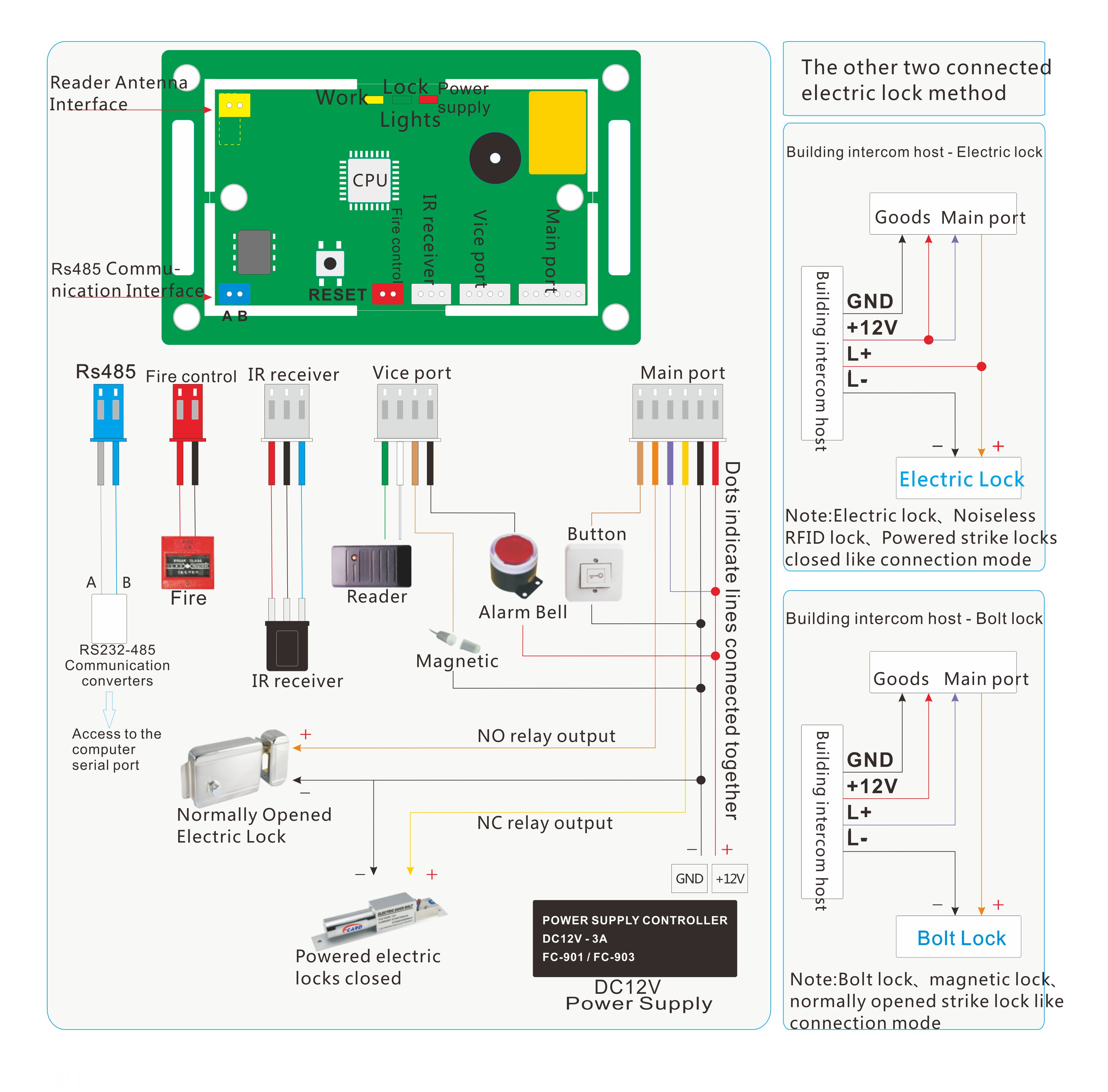

Wiring Connection Diagram:

(Note: Before you connect the device, make sure that the operation is under the state without electricity, so as to avoid device burned due to misconnection or short circuit etc.)

Wiring Connection Diagram

Function:

1. Support large capacity: use EEPROM memory, can independently store 20,000 cards (standard 1,000) data or password data.

2. Support automatic expansion: automatic identify memory capacity and automatic expansion it (just need to change the memory, no need to return manufacturers to upgrade and expand).

3. Support backup function: effectively prevent data loss, other FC-2812 data can be copied to this model device, reduce repeat issue card.

4. Support self protection function: with superior anti-interference ability and self diagnosis, self-protection ability, to ensure the system operation safely.

5. Support door sensor alarm and fire linkage, alarm output, master card to issue/delete card, any card unlock + automatic registration.

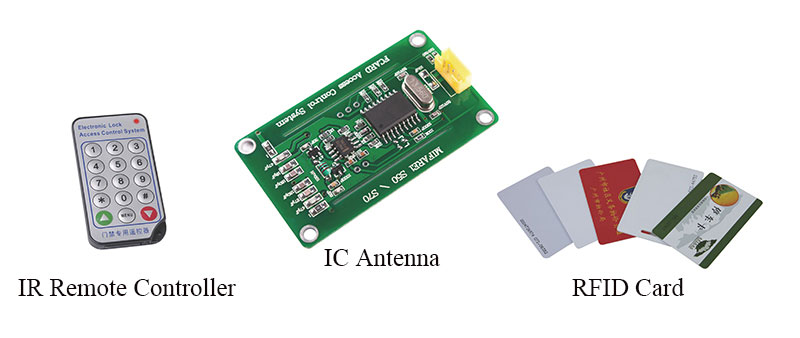

Accessories:

Embedded Access Control Board Accessories


Advantage:

1. Designed with multi compatible installation bit, can compatible with more building intercom host.

2. Automatic identify memory capacity and automatic expansion it (just need to change the memory, no need to return manufacturers to upgrade and expand).

3. Backup function, effectively prevent data loss, other FC-2812 data can be copied to this model device, reduce repeat issue card.

4. Various types of cards to meet the needs of more users.

5. Any card unlock + automatic registration, avoid the card can not be recovered and other issues.


Compatible with FCARD one card pass management system. Support: Access Control System, Offline Access Control System, Time Attendance Access Controller, Guard Tour, Consumption Machine, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card pass management system with one card and one database.
