Guangzhou Fcard Electronics Co.,Ltd is a company which mainly specialized in "One Card Pass"system, It has 10 years experience in this filed. At present, our main products have:Access Control series,Time Attendance series,POS and Water control series,Guard Tour Series,Elevator Access Control Series,Parking Lot series,Turnstile series,Fingerprint Access Control series,Smart Locks series,etc.
In order to optimise and improve "One Card Pass"system, our company publish new products: water controller series. It have integrated and split types. The model are: FC-3500M integrated type water controller and split water controller.
Introduction:
Water Controller Series is designed by Guangzhou Fcard Electronics co.,ltd. It use Mifare card as the payment way; designed separately with controller、flow meters and solenoid valve, customers can choose the suitable way according to the requires; it is suitable for public bathroom、dormitory bathroom etc, occasions; Easy to install and use, electronical and intelligent calculation mode; is the major component in the school and enterprise.
Functions
01、The device is designed separately with controller、flow meters and solenoid valve.
02、LCD screen,can see the charging modes,operation status, using time.
03、Card reading and button switch two ways to control water, more humanize.
04、Open water after charge, prevent wasting water.
05、Have days limit and times limit function,can limit the daily limit and each times limit of the card.
06、The period of consumption with 64 groups can be set,e ach period have 4 times can be set, limit the access rights and use time.
07、The device and cards validity can be set.
08、The way of record storage: alarm and cycle while full.
09、Support management of blacklist and loss reported card, convenience to users report the loss and prevent somebody who pick up the card consumed illegally.
10、Record the details of consumption,can search the bills,report the loss and reissued card.
Parameters
Working Voltage: DC9V-14.8V(Standard DC12V)
Working Current: <500mA（Split）、<800mA（Integrated）
Operating Temperature: -5℃ to 45℃
Humidity: <95
Frequency of card reading: 13.56MHZ
Record Capacity: 10,000
Users Capacity: 26,000blacklist or loss reported card
Type of reading: Mifare
Communication Way: RS485
Method of Charge: Timing/Flow/Times
Billing Accuracy: Minimun billing amount 0.01 yuan
Working Pressure: 0.02MPA-0.08MPA (Integrated)
Nozzle Diameter: DN15
Dimension:125mmL x 85mmW x 30mmH (Split)
-------------------155mmL x 85mmW x 80mmH (Integrated)
Range of use:
Factories, schools, hotels, gyms, swimming pools, apartments, rental house etc.
Outlook:

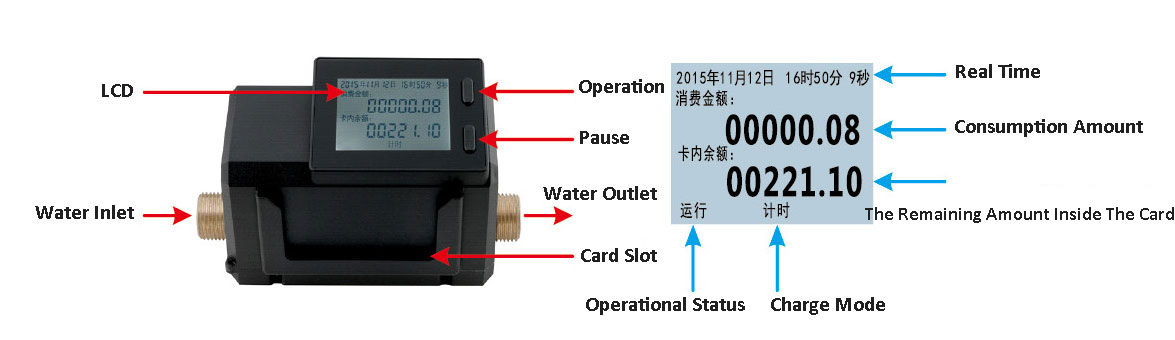

1)Integrated Type

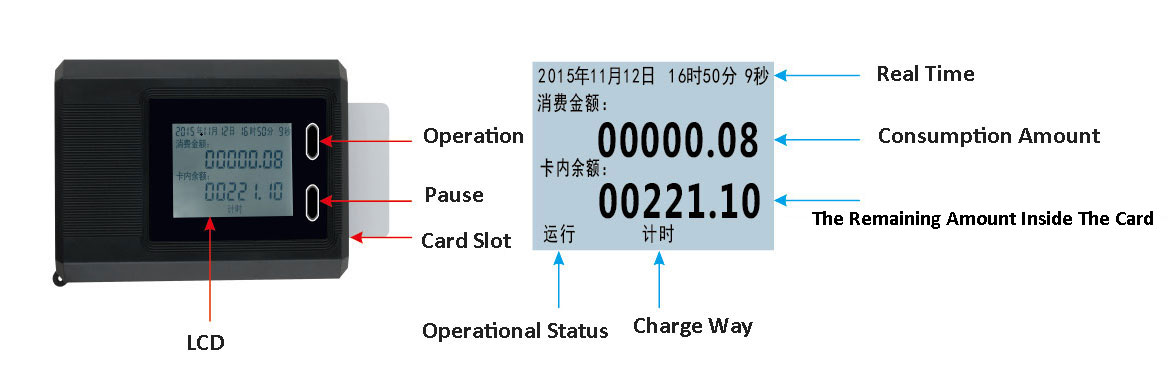

2)Split Type

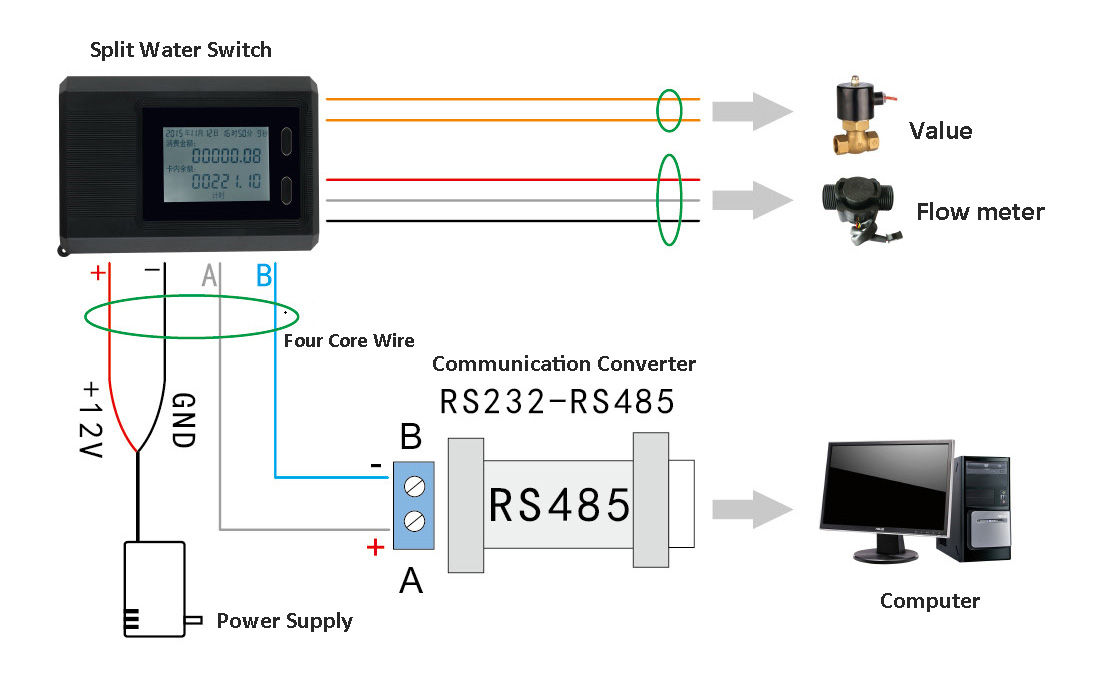

Structure Diagram:
1)Integrated Type
2)Split Type
