FC-8900 serial is an intelligent network access control system. Designed and manufactured in view of integrating of network processor and large capacity;it is truly enabling the network data exchange and high speed calculation. These serial products contain not only the basic access control functions,but also some practical functions which are rarely in other similar products. For more detail function, please kindly refer to “Functions”below.

FC-8900 serial contains 16 models:FC-8610（Professional Access Control and Time Attendance System）,FC-8910（1-channel access contro system）,FC-8920（2-channel access control system）,FC-8940（4-channel access control system）and FC-8832（elevator access control）etc.model with suffix“A”means combinated both Rs485 and TCP/IP communication methods inside, suffix“R”means Rs485 communication method only,suffix“T”means TCP/IP communication method only and suffix“W”means high frequency micro-wave communication method only.The above listed 4 communication methods can be cross using under one net-work,which controlled by one software.In such way, one card can access to the whole net-work,
FCARD3500 software or updated versions is utilizing for this serial products.

Access and SQL Database is both supported,and the communication can base on Local Area Network（LAN）or Remote Ethernet Network.

Basic Function:

Off-line Operation,Card Access,P/W Access,Periond P/W Access,Card+P/W Access,Period Card+P/W Access,Card ID+P/W Access,Pre-assigned Card Release,Normal Card Access, Remote Release & Lock, Set Time Release, Period Release, Real Time Monitoring, Fault Indication, Map, Force in Alarm, Fire Alarm Release,Robber Alarm,Break in Alarm,Illegal Card Alarm,Lost Card Disable,Black-list Card Alarm,Long-time Release Alarm,Sneak in Prevent,Group Data Uploading, Normal Uploading, 2-channel interlock, Multi-lock interlock, Multi-card Release, Key-board Control, Emergency Lock, Access control and Time recording, 64 interval Release, Holiday/Special day setting, and etc.

Professional Function:

Card data Recover,Data Repair,Prevent P/W Detecting,Card Distinguish,with Auto Register,Program IC card by write data in it,Mother Board Buzzer Switch,Time Clock Repair, Card Request for Confirmation Release, 3+1 Confirmation Release, Check in Number Summary, Alarm with Telephone Connecting, Run Time Checking,Remote system updating and etc.

New Function:

FC-8900 serial providing new technic such as Error Wiring Detecting and alarm,voice prompts,Environment Temperature Detecting,In-put Power Stability Detecting,Testing Period Setting,Access Control and Online Patrol,Clock self amending daily,Push-bottom Available Interval Setting,Remote Photo Taking once Punch Card, Burglar alarm host functions, Read Card Interval Setting, Channel sensor alarm time management, Encrypted communication data, Card Active Times Setting,Capacity expansion,Program card by keyboard on card reader.Combined with these functions,FC-8900 serial product could be one of the most advanced access control in the world. Support five computers management at same time, one computer supervises the operation status, one computer downloads the data, others for other functions, achieve real multicomputer management. New cross board interlock function, new cross board anti-pass back function, each the board collaborate without opening computers.

Paramaters:

FC8910A Single Door Access Control Board

Product Model: Single Door Access Control Board(Support Access Control、Time Attendance、Guard Tour and Anti-Theft Function)

Worknig Current: DC 9-14V <300mA

Temperature: 0-60℃

Communication Way: RS485 and TCP/IP

Data Storage : 156,000 Users, 500,000 Records

Card Reader Port:2 Wiegand 26、34

Other Port: 1 Exit Button、1 Door Sensor、2 Alarm Output、1 Voice Speaker Interface

Relay Output: 1 Group of Door Relay Output, 2 Groups of Alarm Relay Output

Board Size:150mm*105mm*20mm

FC8910A Two Door Access Control Board

Product Model: Two Door Access Control Board(Support Access Control、Time Attendance、Guard Tour and Anti-Theft Function)

Worknig Current: DC 9-14V <350mA

Temperature: 0-60℃

Communication Way: RS485 and TCP/IP

Data Storage: 156,000 Users, 500,000 Records

Card Reader Port:4 Wiegand 26、34

Other Port: 2 Exit Button、2 Door Sensor、2 Alarm Output、1 Voice Speaker Interface

Relay Output: 2 Group of Door Relay Output, 2 Groups of Alarm Relay Output

Board Size:150mm*105mm*20mm

FC8940A Four Door Access Control Board

Product Model: Four Door Access Control Board(Support Access Control、Time Attendance、Guard Tour and Anti-Theft Function)

Worknig Current: DC 9-14V <500mA

Temperature: 0-60℃

Communication Way: RS485 and TCP/IP

Data Storage: 156,000 Users, 500,000 Records

Card Reader Port:8 Wiegand 26、34

Other Port: 4 Exit Button、4 Door Sensor、2 Alarm Output、1 Voice Speaker Interface

Relay Output: 4 Group of Door Relay Output, 2 Groups of Alarm Relay Output

Board Size:200mm*105mm*20mm

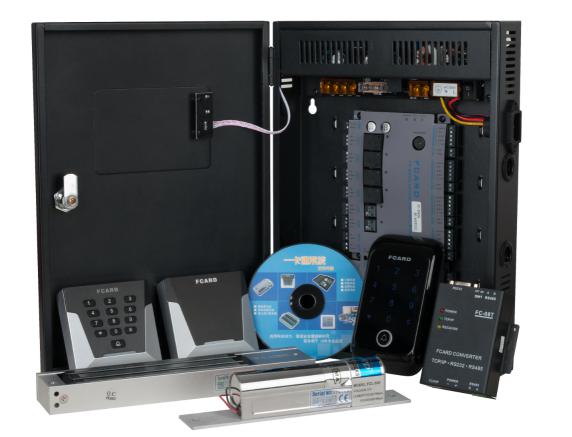

Accessories:

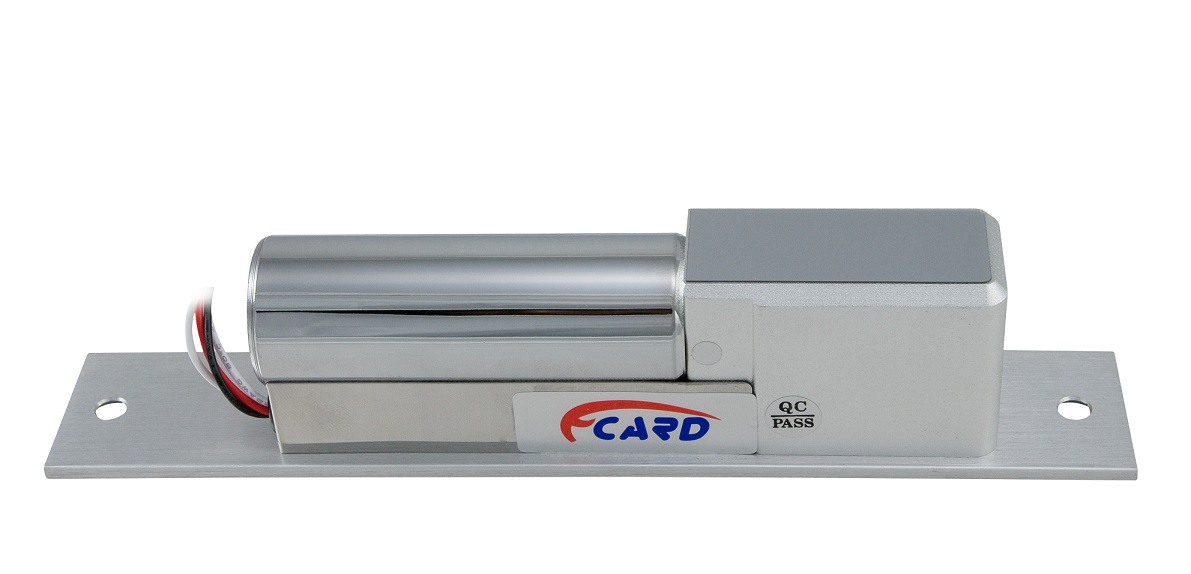

FC-200 Electric Bolt Lock

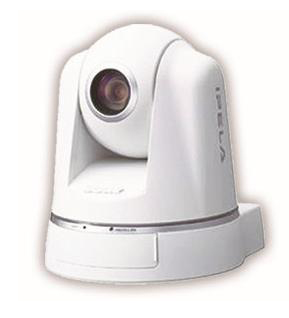

Camera of Video Surveillance

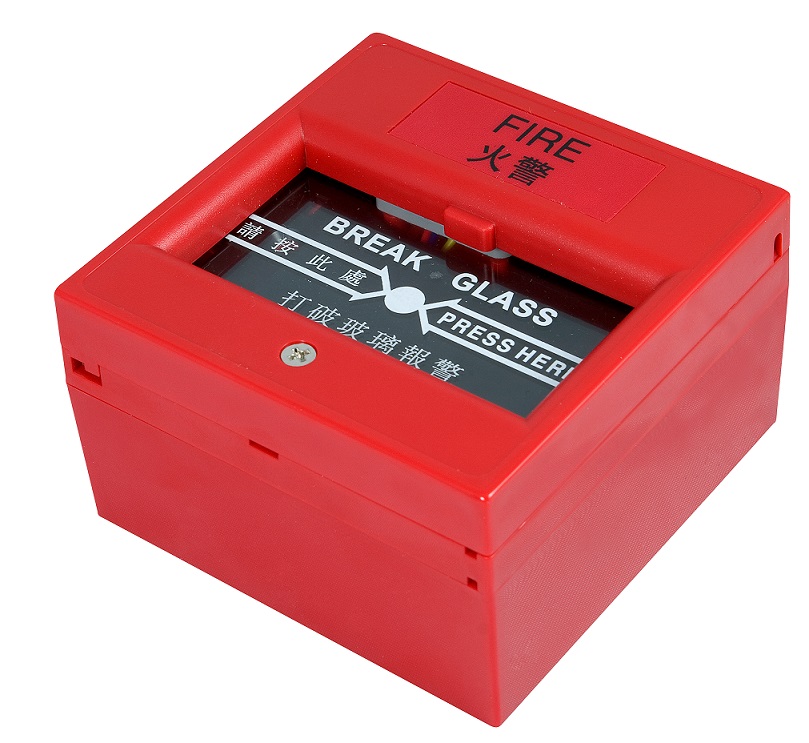

Break glass switch

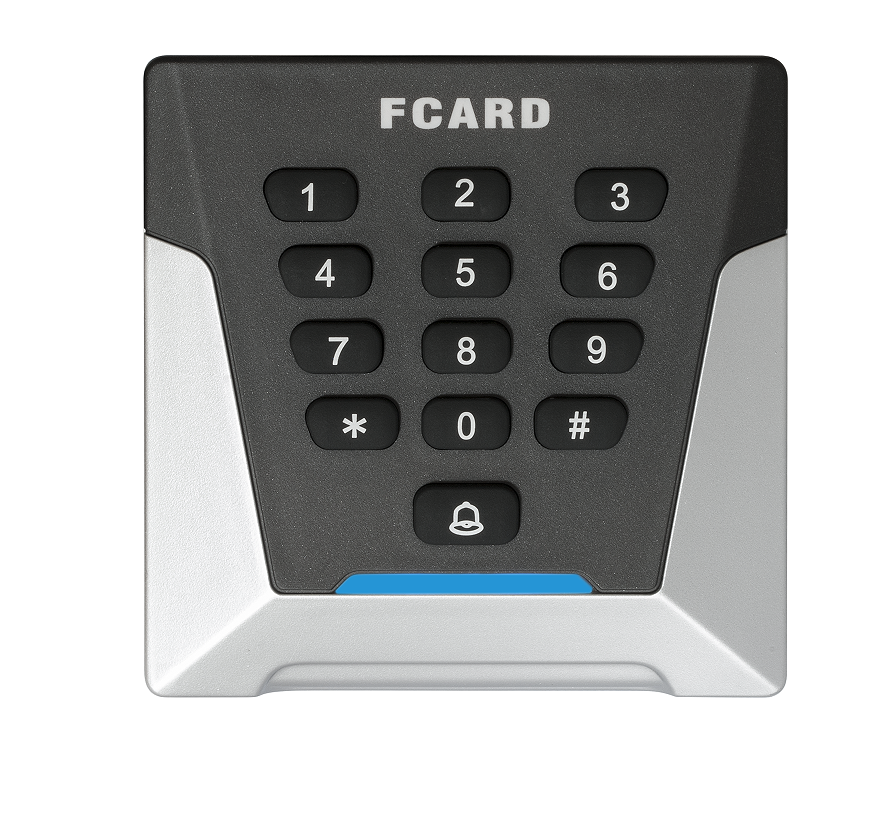

FC-185K RFID Card Reader

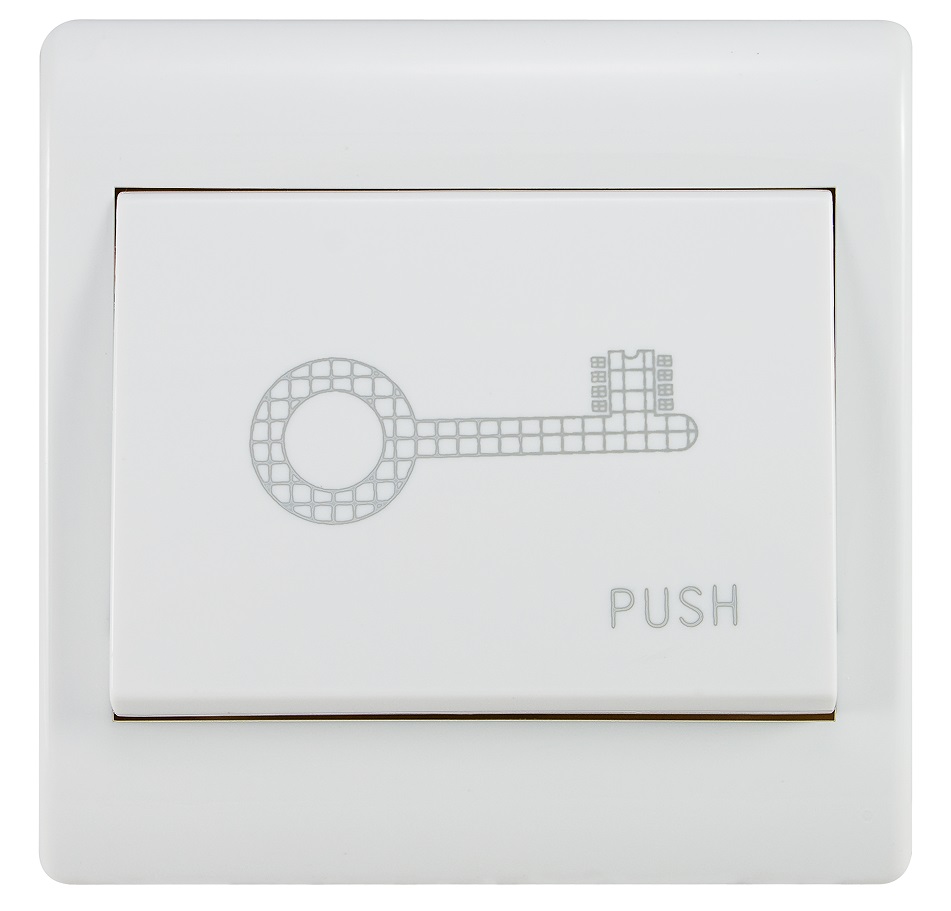

FC-10K Plasic Exit Button

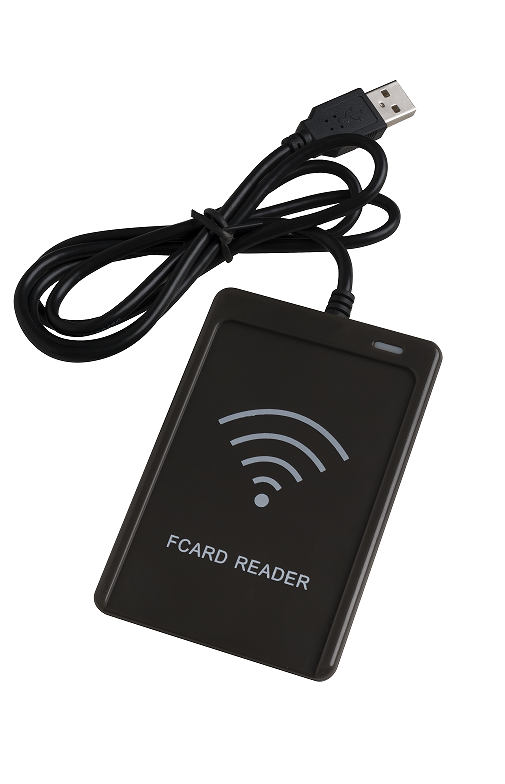

FC-502MS IC Card Issusing Device

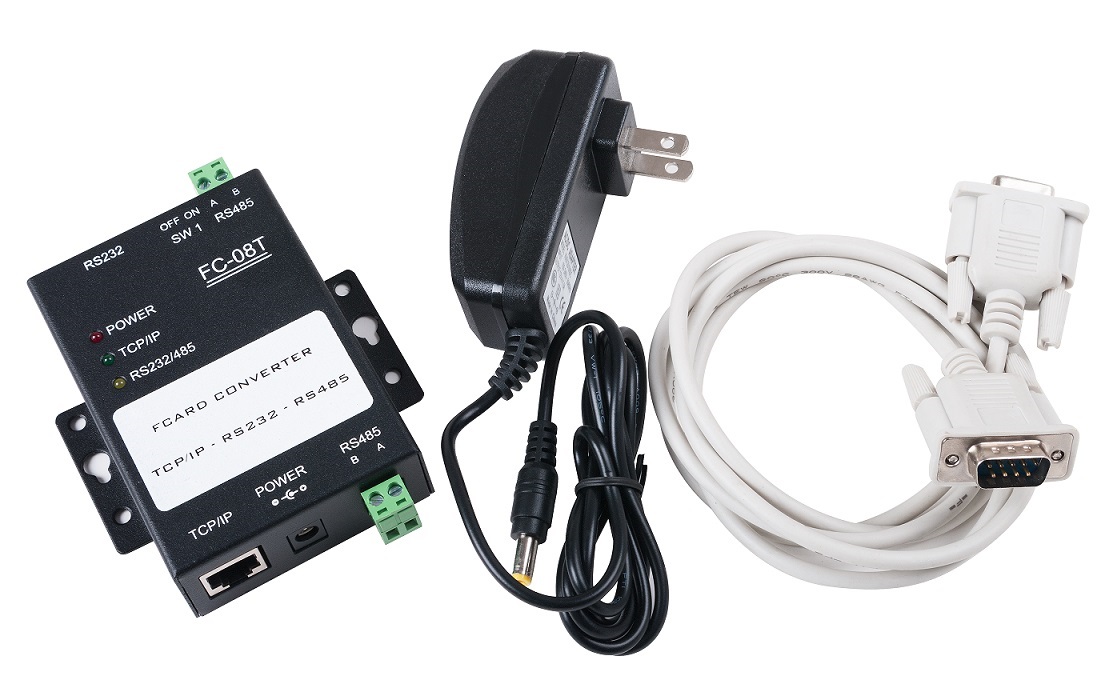

FC-08T TCP/IP Converter

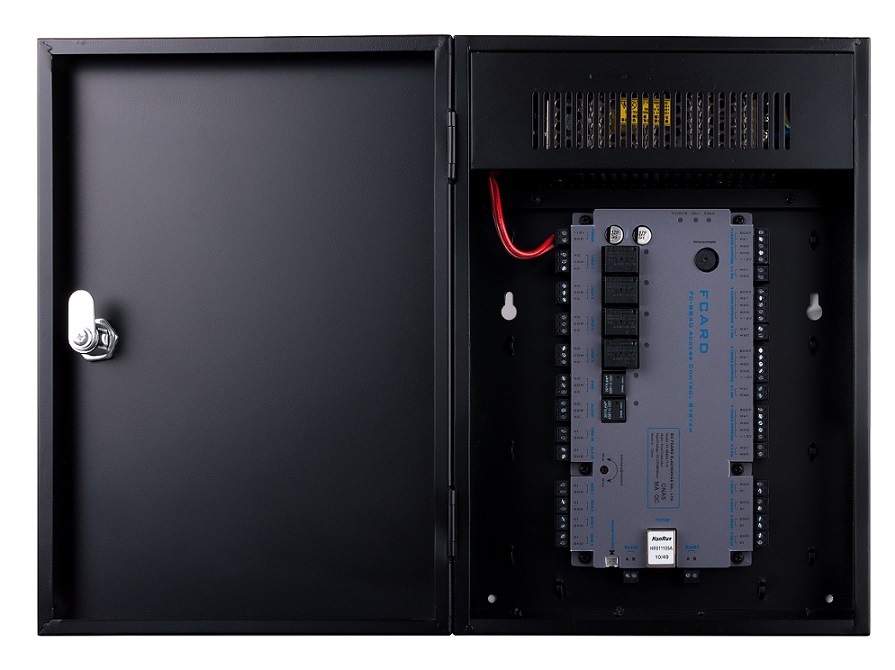

FC-02A Power Supply Box

Features:

Manage Doors: 1 2 4

Voltage Currant: DC12V < 300mA DC12V < 350mA DC12V < 500mA

Board Size: 105mm*105mm*20mm 200mm*105mm*20mm

Temperature: -25℃-70℃

Data Storage: 250k records

Operating Humidity: 10-90%RH, (No condensation)

Users Capacity: 156K Users(registered card、lost card、blacklist card)

Capacity Extension: each door can extended to 312K users、500K records

Off power safe Flash memory available, 10 years data protection preservation

Wiegand I/O: Standard Wiegand 26bit, 34bit transition ( The default setting is 26 bit, can changed in software)

Port No. 2: Wiegand card reader ports 4 Wiegand card reader ports 4 Wiegand card reader ports

Distance: 100M communication distance( recommended < 80M)

Other I/O: 1 push button& 1 magnet release / 1 fire gate alarm&1 break in alarm for each door

Lock relay: 1 set 2 set 4 set

Current: Every relay with NC, COM,NO main internal control, max 250V, 6A

Alarm relay: Two group(one for fire alarm output, another for bandit alarm output) available connect to external alarm board (supports four type alarm inputs&outputs)

Remote Upgrade: TCP/IP Communication port of FC-8900 series all support remote upgrade, the function will be changed after upgrade, if you want to know more please see upgrade instructions

Interlocking Function: none two door interlock 2、3、4 Interlock Optional

Indicator: 1 group Power, 1 group heartbeat, 1 group reading signal, 1 Relay, 2 TCP/IP, 1 RS485

Fire Alarm Mode: After Alarm 1、alarm and opened 2、alarm didn’t opened 3、 no effect (Optional)

Bandit Alarm Output: after alarm 1、alarm and locked 2、alarm didn’t unlocked 3、alarm when have signal, without rescinding 4、no effect

Software: FCARD3500 V6.30(or above version) Simplified Chinese、Traditional Chinese、English

Environmental monitoring: use high-precision temperature sensor, when temperature too high or too low it can detected automatically, abnormal will be record

Power Monitoring: You can set the Validity Probation period for 1 days to 65534 days , Can not be used after expiration

The clock self-correction: We all know that any clock has a certain error, and in order to allow more accurate time, then we will automatically correct the error every day to achieve, so that the error is smaller. Or even in 1 year only 1 second error

Database: Access/SQL

Language: Chinese (Pre-set), English, Cantonese, Other Language could be pre-booked
