Support 240×320 ultra high definition resolution Provides 300 lumens of brightness, Images can be seen clearly both indoor and outdoor

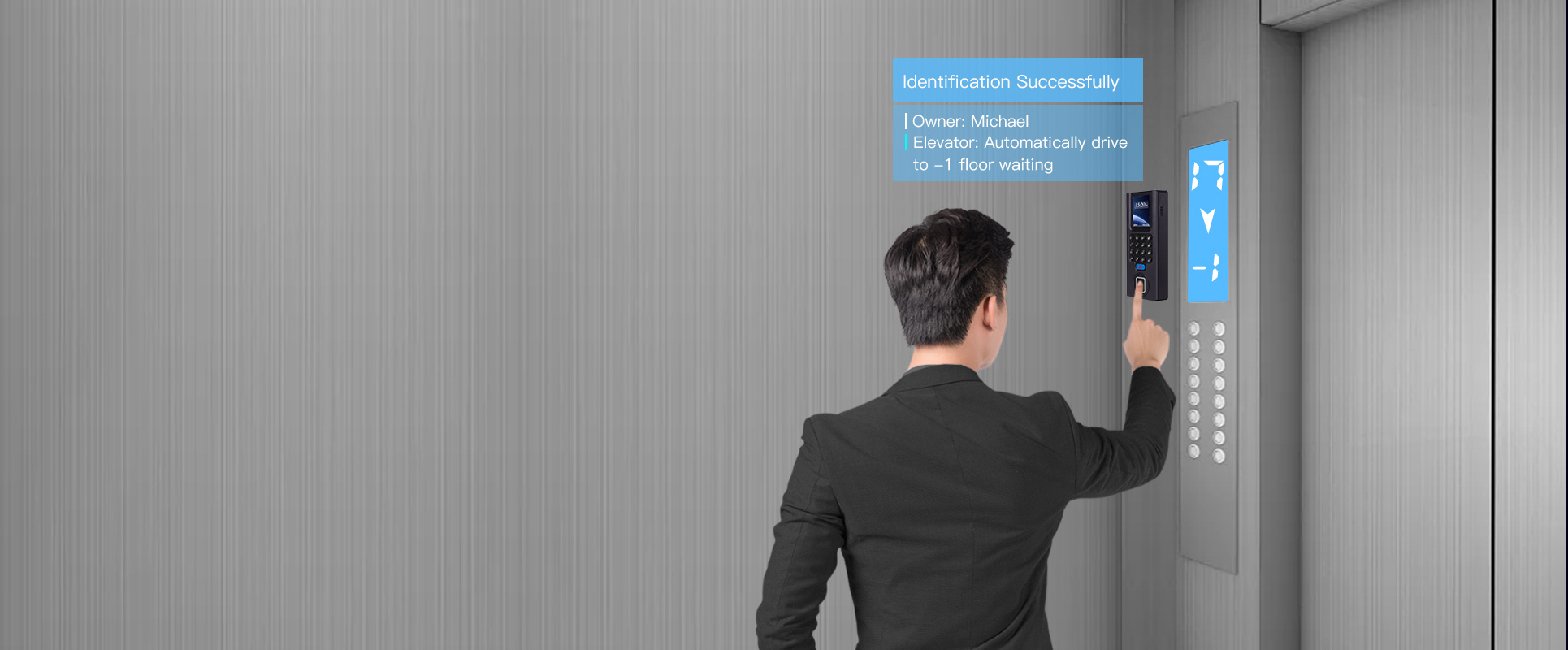

Facial Recognition to Control Elevator
Can manage up to 64 floors
Support authorization for one person with multiple
floors access and specified floor access
Large Fingerprints Capacity
2,000 Fingerprints
内存100000条数据存储能力
100,000 Records Storage
Reading Card Technology (Mifare Card)
13.56MHz supports not only Mifare cards, but also NFC cards,
NFC phones, CPU cards
(Can set the card type and whether to enable encryption and card control technology)
Changing the Booting Picture
Customized booting picture presents a new look
Let each booting of device is full of surprises

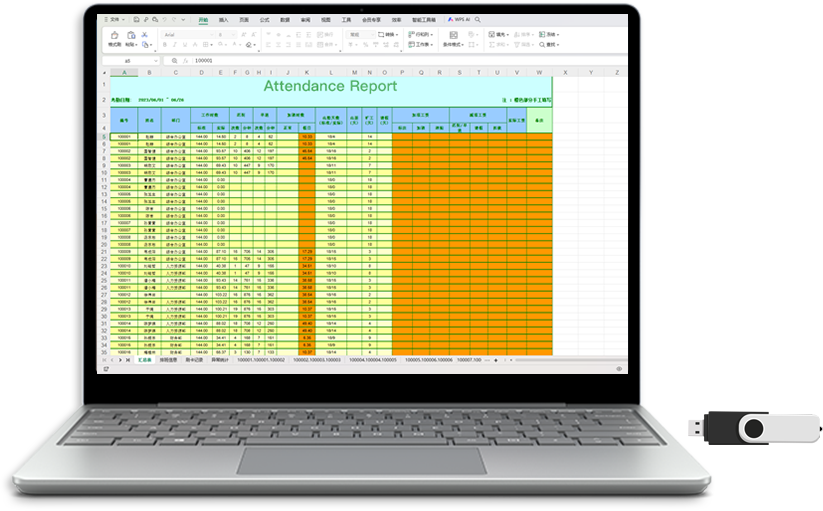

USB Flash Drive to Download Report
Attendance Schedule by USB drive
View Attendance Records
Support Independent Attendance
Can Independently Complete Attendance Work and Output the Reports

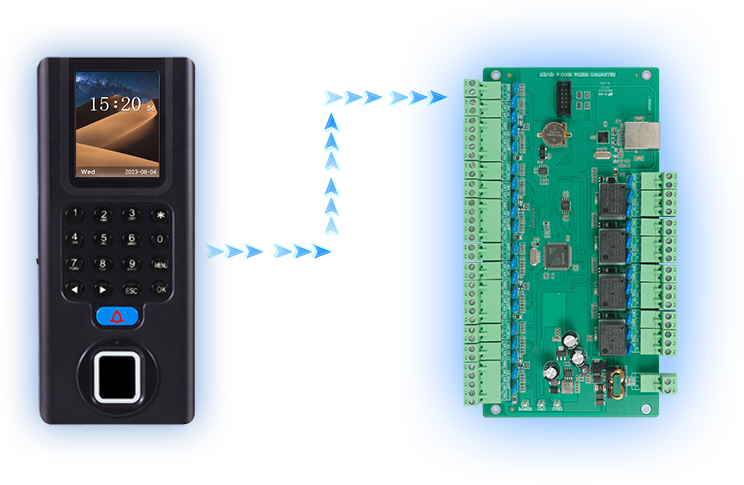

Working as WG26/WG34
Built in card reader function, can reading
card and scan fingerprint and other data
Transferred to the door access control
board through wiegand signal
Temporary Visitor's Password to Open Door
When a temporary visitor needs to enter the owner's
residence, they can generate a temporary
password to share with the visitor. Then visitor can use
this temporary password to enter the owner's residence

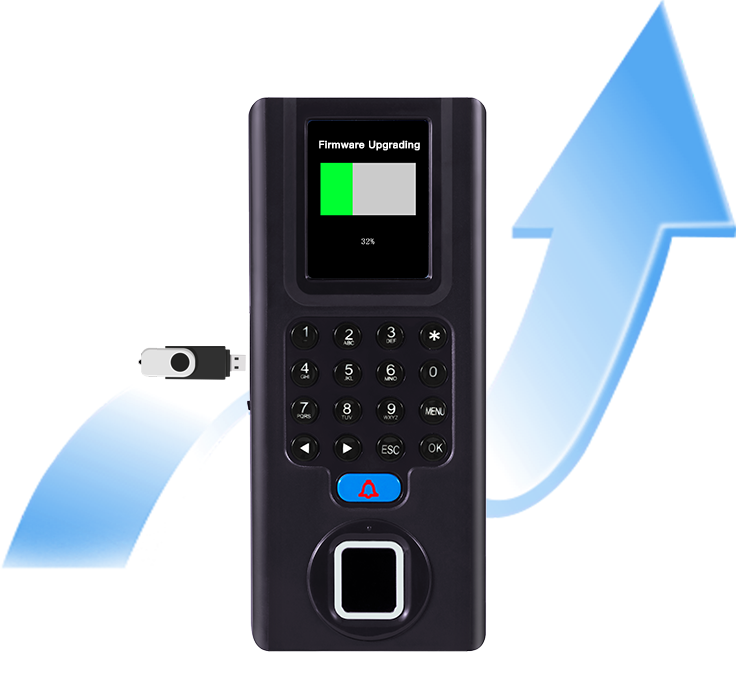

Support OTA Upgrade
Improve the application value of device through upgrading
Ver:1.0
Ver:2.0
Ver:3.0
Ver:4.0
Ver:5.0
Ver:6.0

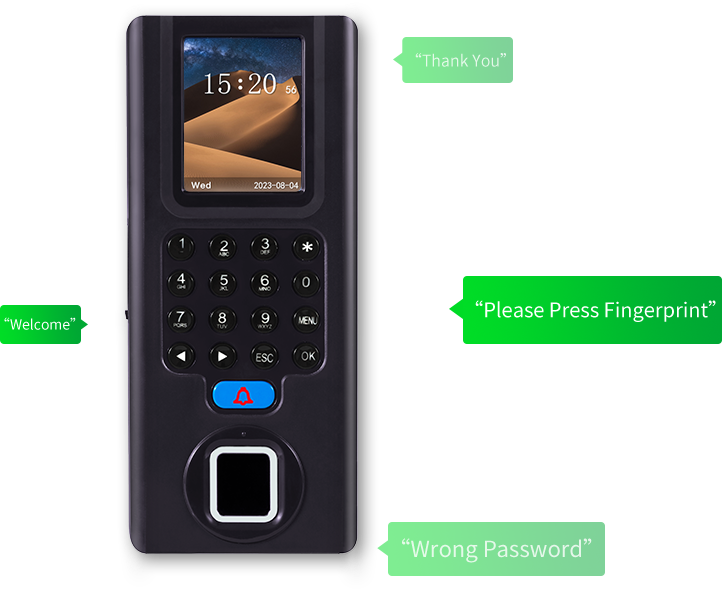

Voice Remind
Voice can be changed independently for
meeting the requirements of different country
Protecting the Design of Mainboard
Prevent the physical damage to the mainboard
and other internal components from
external impacts, vibrations, pressure, etc

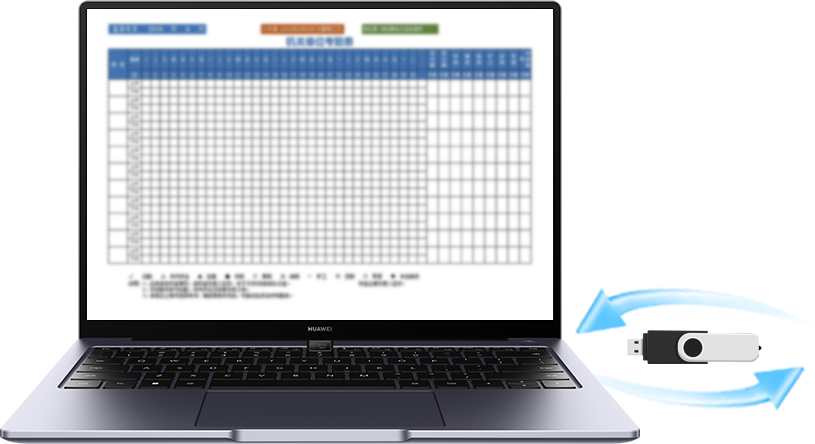

USB Drive Backup
and Restore Data
Realize all-in-one machine input and share
it with more machines for use

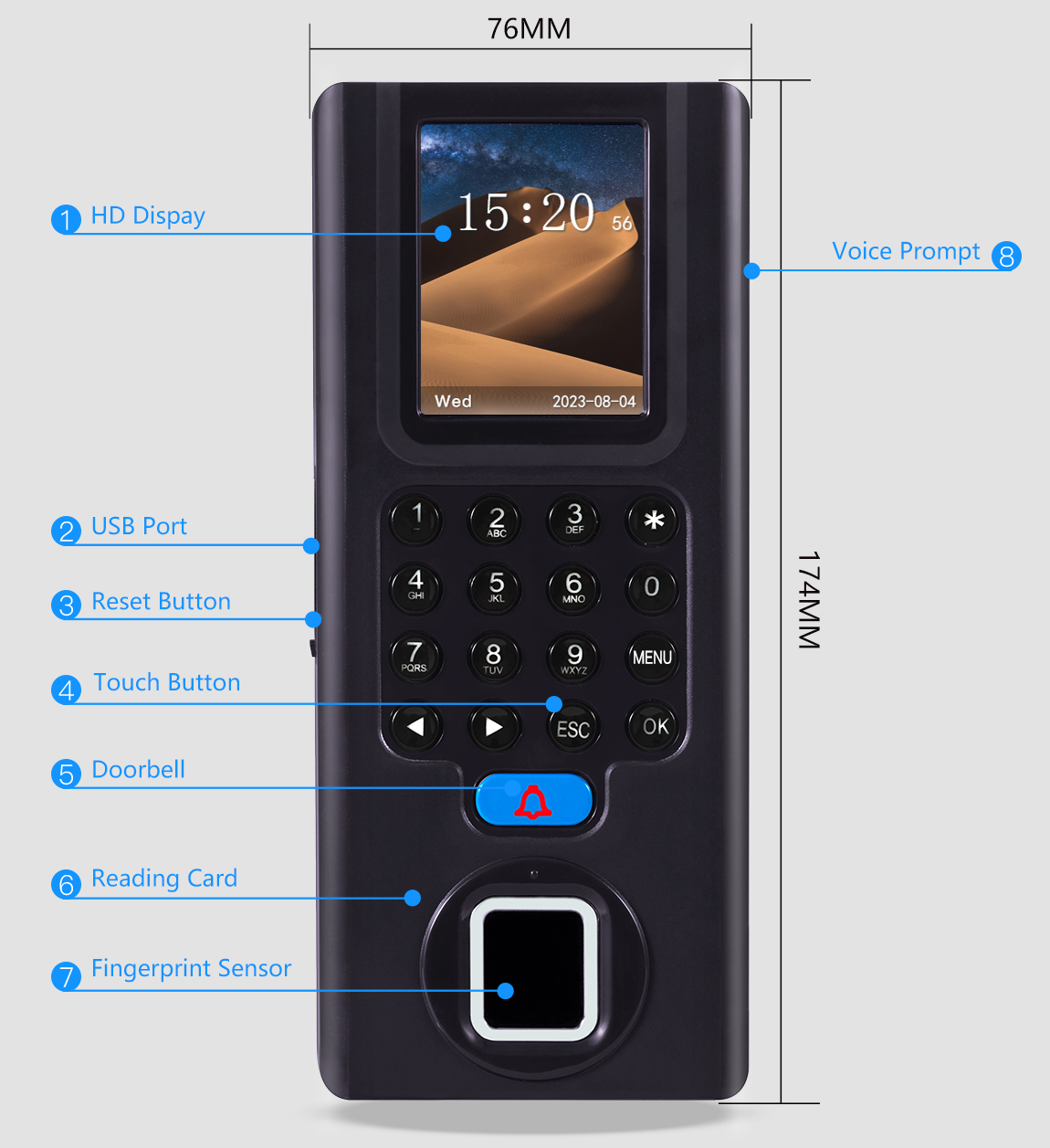

Appearance Diagram
APPEARANCE DESCRIPTION
Technical Parameters
Main Uses:
Access Control, Time Attendance
Working Voltage:
DC12V(9 ~ 14V)
Working Current:
<1000mA
Working Environment:
Temperature: -30℃~65℃;
Humidity:
10 ~ 90%, RH
Operating System:
LINUX System
User Capacity:
2,000 Fingerprints; 2,000 Passwords; 2,000 Cards (Mifare Card or ID Card)
Record Capacity:
100,000 Records; 10,000 System Records
Recognition Distance
0.3m-3m
Recognition Speed:
< 0.3S
Material :
ABS Plastic Housing
Size:
174x76x25mm
Weight:
0.2KG
Algorithm Support:
Fingerprint Identification
Management Mode:
Touch Button
Registration Mode:
Fingerprint, Password, ID Card (ID Card/Mifare Card/CPU Card are Optional))
Comparison Mode:
1:N/1:1
Firmware Upgrade:
Support USB Drive Upgrade
Camera:
Wide Dynamic Binocular 1 Megapixel HD Camera
Display Screen:
2.4-inch HD Screen
Communication Interface:
Wiegand26/34/66, RS485

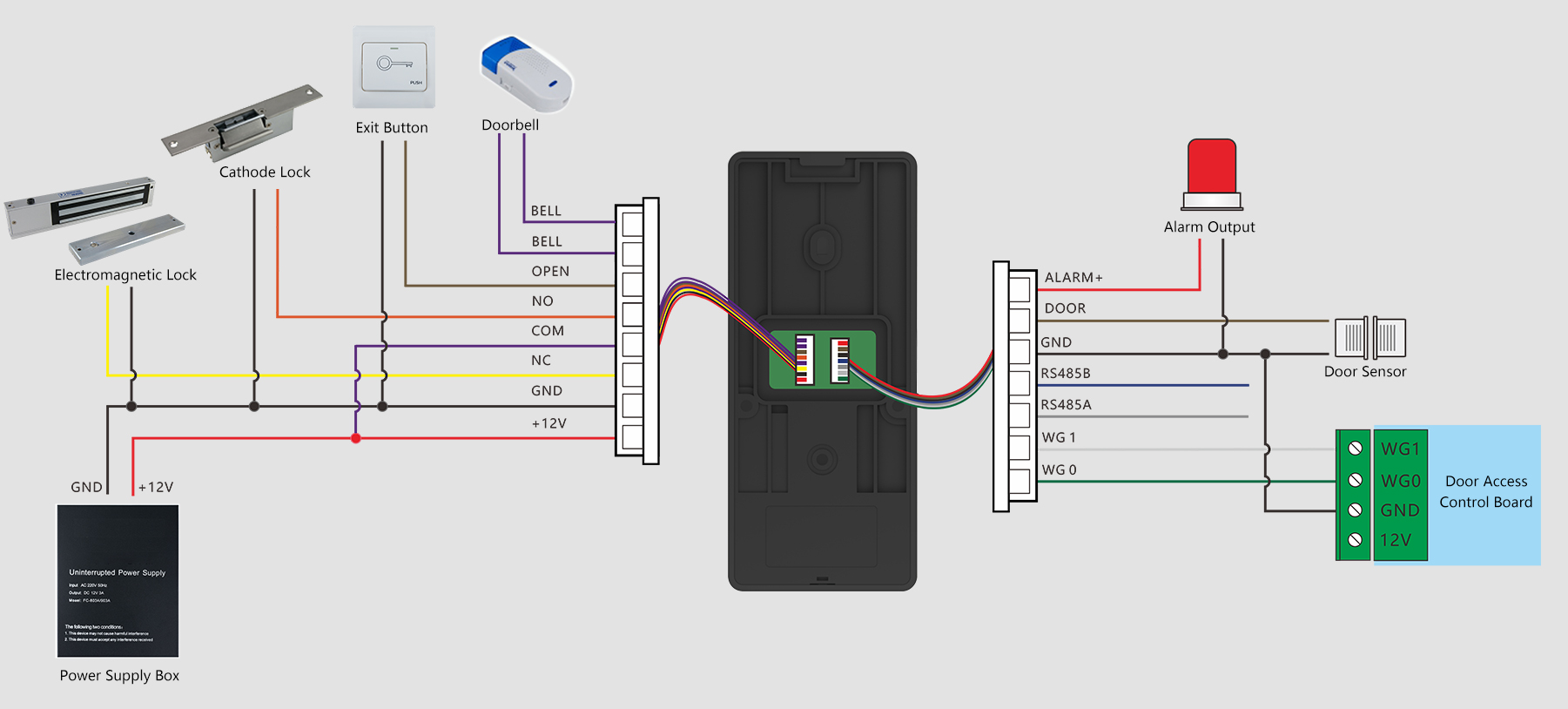

Other Interfaces:
Exit Button x1, Door Sensor x1, Alarm Output x1, Wiegand Output x1, Magnetic Lock Control x1
