FC-DJ01+DJ02 Indoor Unit of Face Recognition Terminal

Multi-Function

HD
Screen
6 Kinds of
Subject Styles
8 Groups of
Anti-theft
Monitoring
Function
TCP/IP
Communication
Extension
Intercom
POE
Power Supply
Video
Intercom
Lift
Management
Online
Upgrade
WIFI
Communication
Touch
Screen

4.3 Inches/7 InchesUltra HD Dispaly Screen

Provides 500 lumens of brightness
Images can be seen both indoor and outdoor
Regardless of the size chosen,
it has consistent functionality

Linux 4.0.9 Embedded

System Advantages

AK3761E Series

AI Facial Professional CPU

Support 800MHz Main Frequency,

Built in 128M DDR2 Memory

Specialized AI Chips for Face, Fingerprint, Palm Vein,
QR Code, Password, Mifare Card, Video Data, etc

TCP/IP + WIFI
Two Communication Modes

The recommended communication distance between TCP/IP and the

switch is within 80 meters, and the WIFI distance is within 20 meters.

HTTP+MQTT+WebSocket+TCP+UDP+WEB

Multiple Communication Protocols

Support multiple communication protocols,

including HTTP, MQTT, WebSocket, TCP, UDP and WEB

Support WEB Management

Can directly open the WEB page through the IP address;

support personnel, department, equipment parameters,

record managements and other operation settings

Support POE
Power Supply

Direct power supply and
communication through Ethernet cable

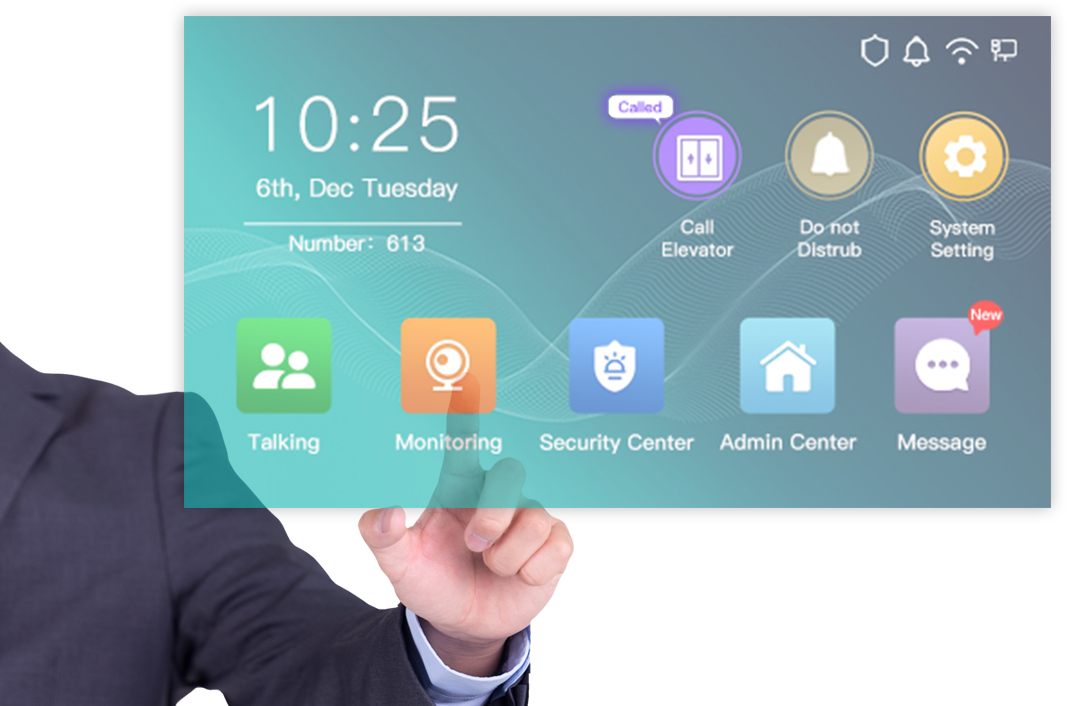

Touch Screen

When it is inconvenient for users to
manage their devices through a computer,
device provides a touch screen menu management function,
which can directly authorize personnel to open doors,
time attendance and taking elevators

Weather
Forecast Function

fast and real-time intelligent recognition of 68 weather

conditions including sunny, cloudy, rainy, snowy, foggy, etc.

Call Elevator In Advance

Can click on the indoor unit to call the elevator in advance,
and the elevator will arrive at the designated
floor according to the user's needs

Elevator Pick-up and
Drop-off of Visitors

Call the elevator through the indoor
unit to any designated floor.

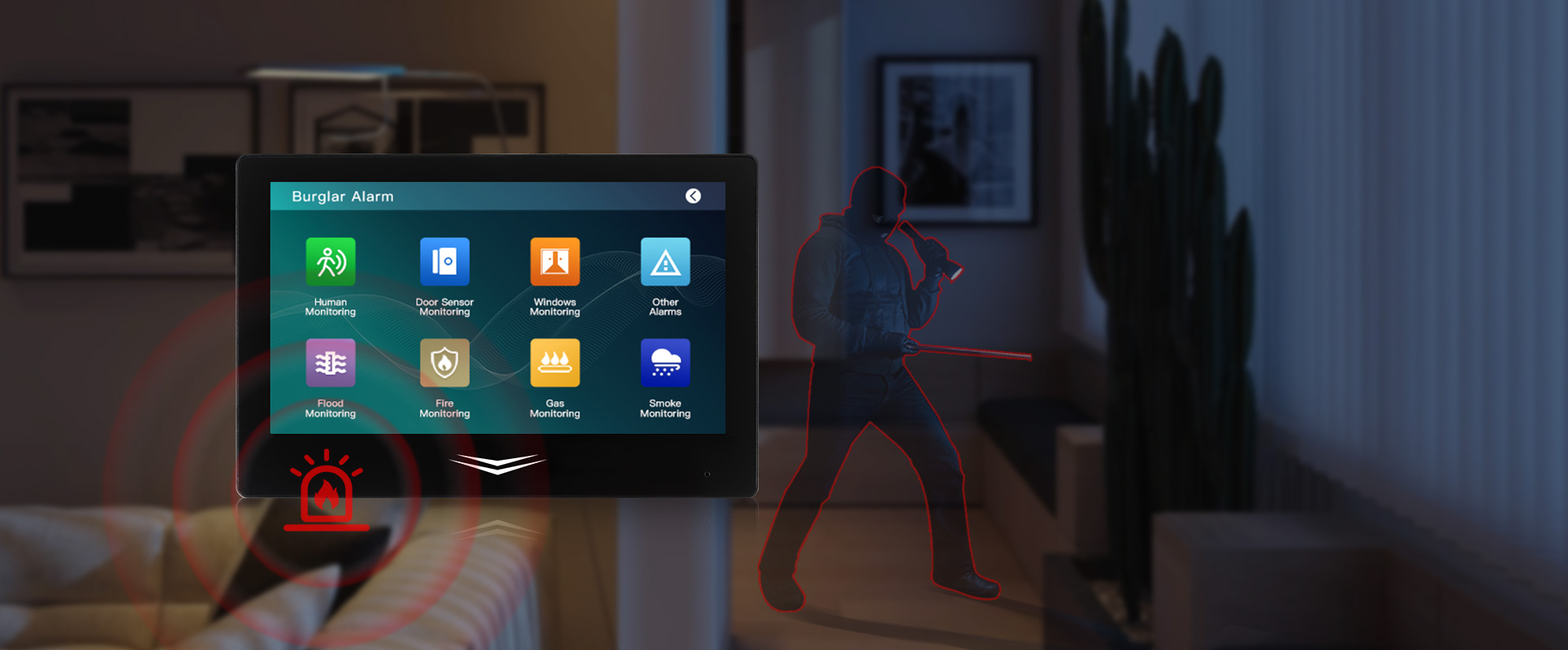

8 Kinds of
Alarm Functions

Suitable for various situations that require alarm
High performance, reliability, and sensitivity
Realtime monitoring and issuing alerts to ensure your safety

Video Intercom

Support Direct Calling and
Dial-up Calling Modes

Other Country Languages

Can Be Customized

Support Customize

Multiple National Languages

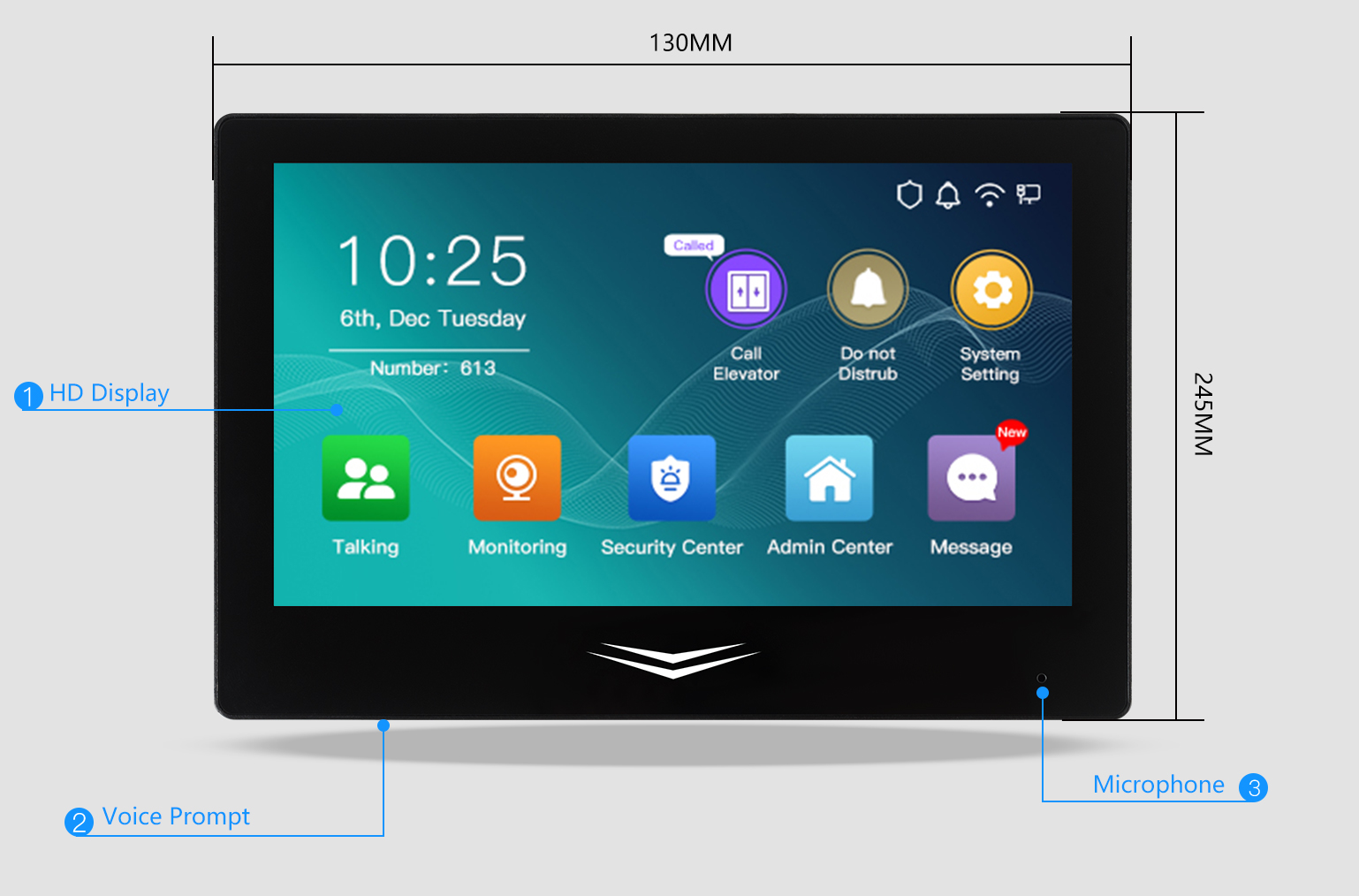

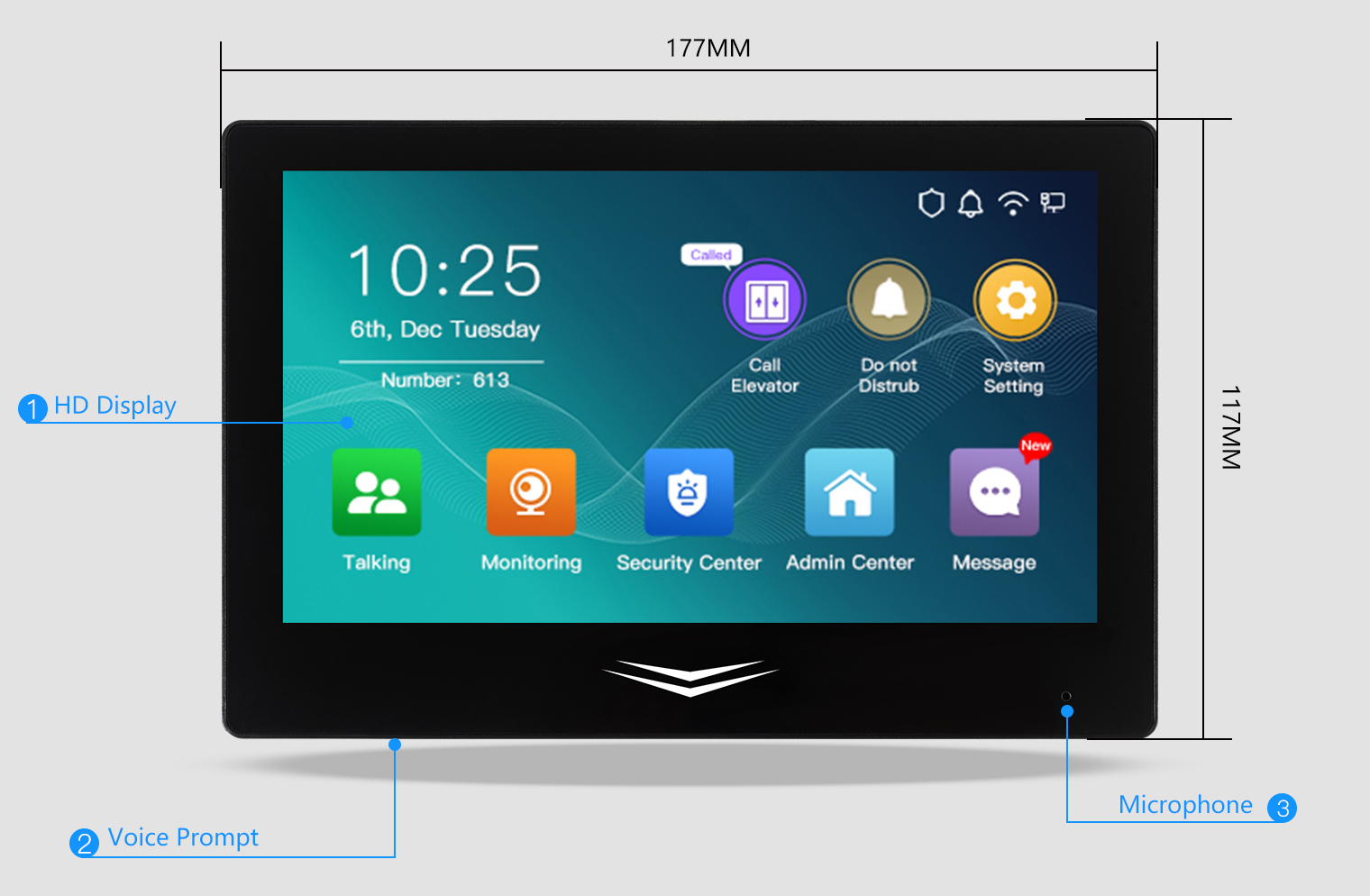

Appearance Diagram

APPEARANCE DESCRIPTION

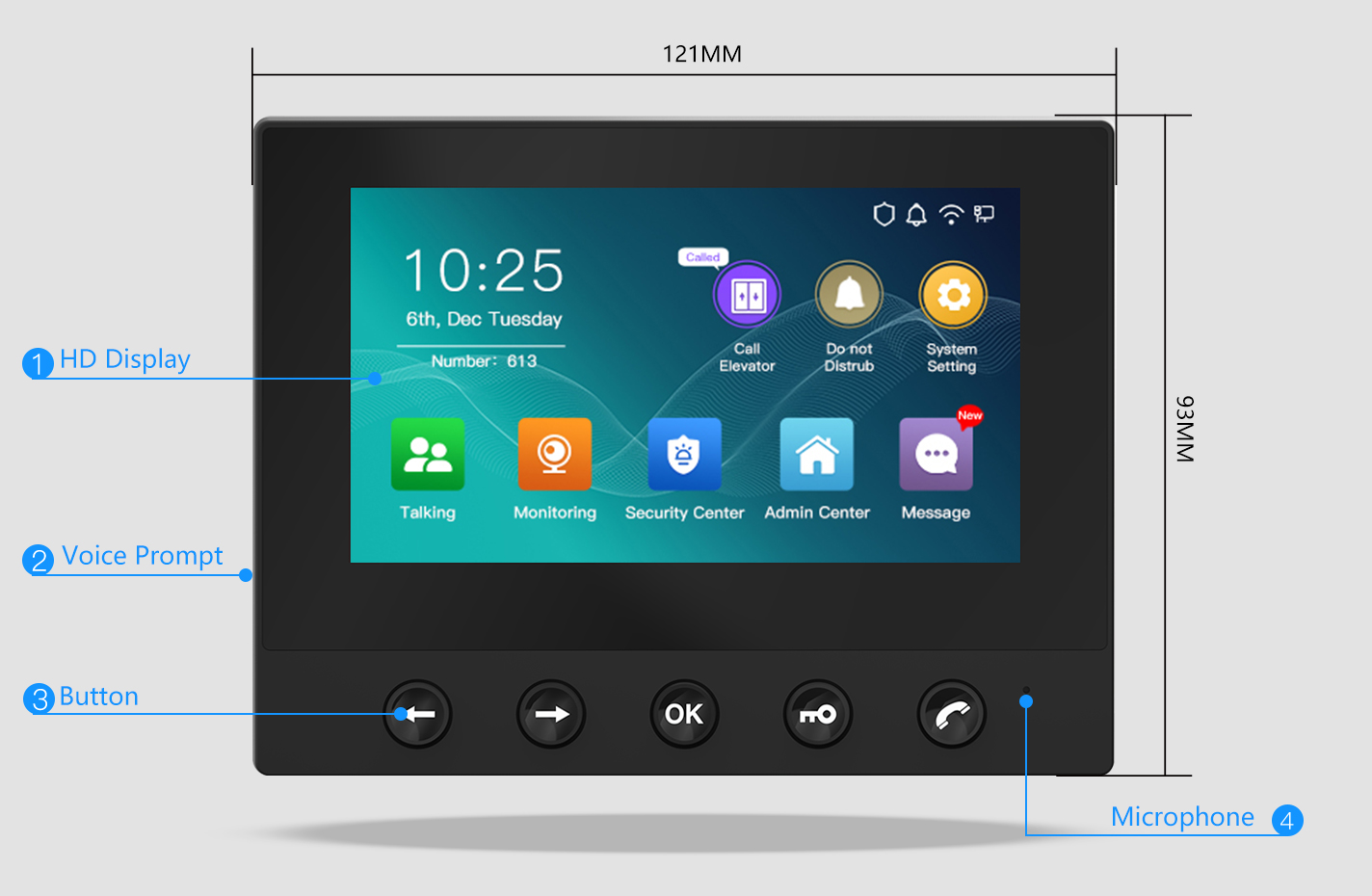

Appearance Diagram

APPEARANCE DESCRIPTION

Technical Parameters

Main Uses:

Indoor Unit Intercom
Working Voltage:

DC12V（9 ~ 14V）
Working Current:

500mA
Working Environment:

Temperature: -30℃～65℃;
Humidity:

10 ~ 90%，RH
Communication Mode:

TCP/IP, WIFI
Power Supply:

12V Input or POE Supply
Call Elevator:

Support
Operating System:

LINUX System
Material:

ABS Plastic Housing+Tempered Glass Panel
Size:

177×117×26mm（FC-DJ01）121×93×24mm（FC-DJ02）
Weight:

0.3KG

Management Mode:

Touch Screen
Alarm Input:

8 Groups (Anti-theft, Door Sensor, Windows, Flood, Fire, Smoke, Others)
Alarm Output:

1 Group (Can Driving 100mA Warning Lights or Speakers)
Comparison Mode:

1:N/1:1
Firmware Upgrade:

Support Software OTA Upgrade
Display Screen:

7-inch (FC-DJ01)/4.3-inch (FC-DJ02) ISP Full-view HD Screen
Storage Capacity:

128M DDR3 Memory and 1GB EMMC Storage
Communication Interface:

TCP/IP, WIFI
Installation:

Wall Mounted
