FC-8280 Dynamic Face Recognition Access Control Terminal (Turnstile Type)

Multi-Function

High-definition
Screen
High-definition
Binocular Camera
50,000
Faces
1 Million
Attendance Logs
LINUX
System
Binocular Liveness
Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong
Light Recognition
Voice
Remind
QR Code
Identification (Optional)
Palm Vein Recognition
(Optional)
IP65
Waterproof
Metal
Material
Cloud
Software
U Disk To
Export Data
Online
Upgrade
SDK For
Integration
Multiple
Communication Modes
Free Docking
Platform

CS System

Desktop Software Management

Support Personnel Management,

Access Control, Time Attendance,

Elevator Control, Guard Tour,

Meeting Management, Vistor Management, etc

Support ACCESS and SQL Database

BS System

Cloud Software Management

Device actively communicates with the server

Our cloud software supports computer, iPad, and mobile versions. It can be

used by installing apps or directly logging into the system through a browser

SV810 Series

AI Facial Professional CPU

Support 2-Core Cortex A7 1GHz, 1.2 Tops NPU

512M DDR3 Memory

Super large capacity face recognition, QR code recognition,

attendance application dedicated AI processor

8-inch
HD Display Screen

Support 800x1280 ultra high definition resolution

Provides 500 lumens of brightness, with true color LCD glass

Images can be seen clearly both indoor and outdoor

Reading Card Function Can be Customized

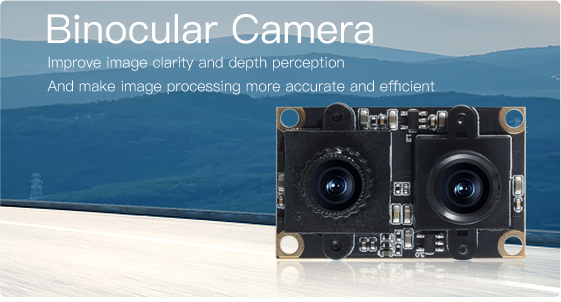

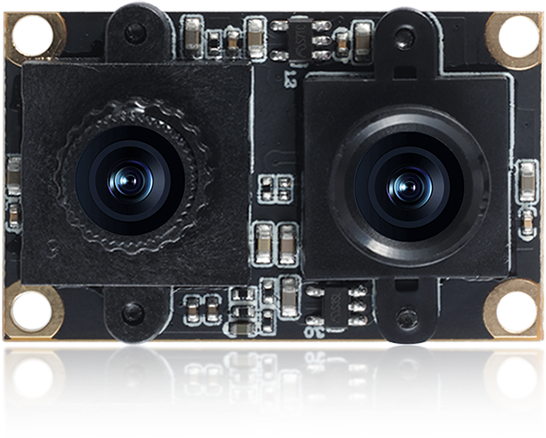

IMX307 + GC2145

Binocular 2 Megapixel Camera

SONY IMX307 provides ultra clear color picture quality

More outstanding in facial recognition, palm vein recognition,

and QR code recognition, with faster speed and clearer and smoother images

Adopt professional glass green filter
to make the color more outstanding

Wide Dynamic Strong
Light Suppression Technology

Capable of adapting to various complex lighting

environments such as backlight and strong light,

to ensure high-precision facial recognition rates

in different scenes and environments

Support Wide Dynamic
Technology at Night Support Wide Dynamic
Technology at Strong Light Not Support Wide
Dynamic Technology

50,000 Users Capacity

50,000 Users(50,000 Faces, 10,000 Palm Veins, 50,000 Cards, 50,000 QR Code, 50,000 Passwords)
可扩容至100000用户
1 Million Attendance Logs

TCP/IP + WIFI
Two Communication Modes

The recommended communication distance between TCP/IP and the

switch is within 80 meters, and the WIFI distance is within 20 meters.

HTTP+MQTT+WebSocket+TCP+UDP+WEB

Multiple Communication Protocols

Support multiple communication protocols,

including HTTP, MQTT, WebSocket, TCP, UDP and WEB

Support WEB Management

Can directly open the WEB page through the IP address;

support personnel, department, equipment parameters,

record managements and other operation settings

Reading Card Technology
(Mifare Card)

13.56MHz supports not only Mifare cards, but also NFC cards,

NFC phones, CPU cards

(Can set the card type and whether to enable
encryption and card control technology)

QR Code Recognition

Utilizing existing color high-definition cameras

combined with rolling QR code algorithms, to achieve

QR code recognition and authentication

QR code door opening, QR code attendance,

QR code visitor authentication and QR code to take elevator

Face

Recognition Technology

Support OTA Upgrade and
USB Flash Drive Upgrade

Device Continuously Upgrades to Enhance Application Value

Ver:1.0

Ver:2.0

Ver:3.0

Ver:4.0

Ver:5.0

Ver:6.0

Linux 4.0.9 Embedded

System Advantages

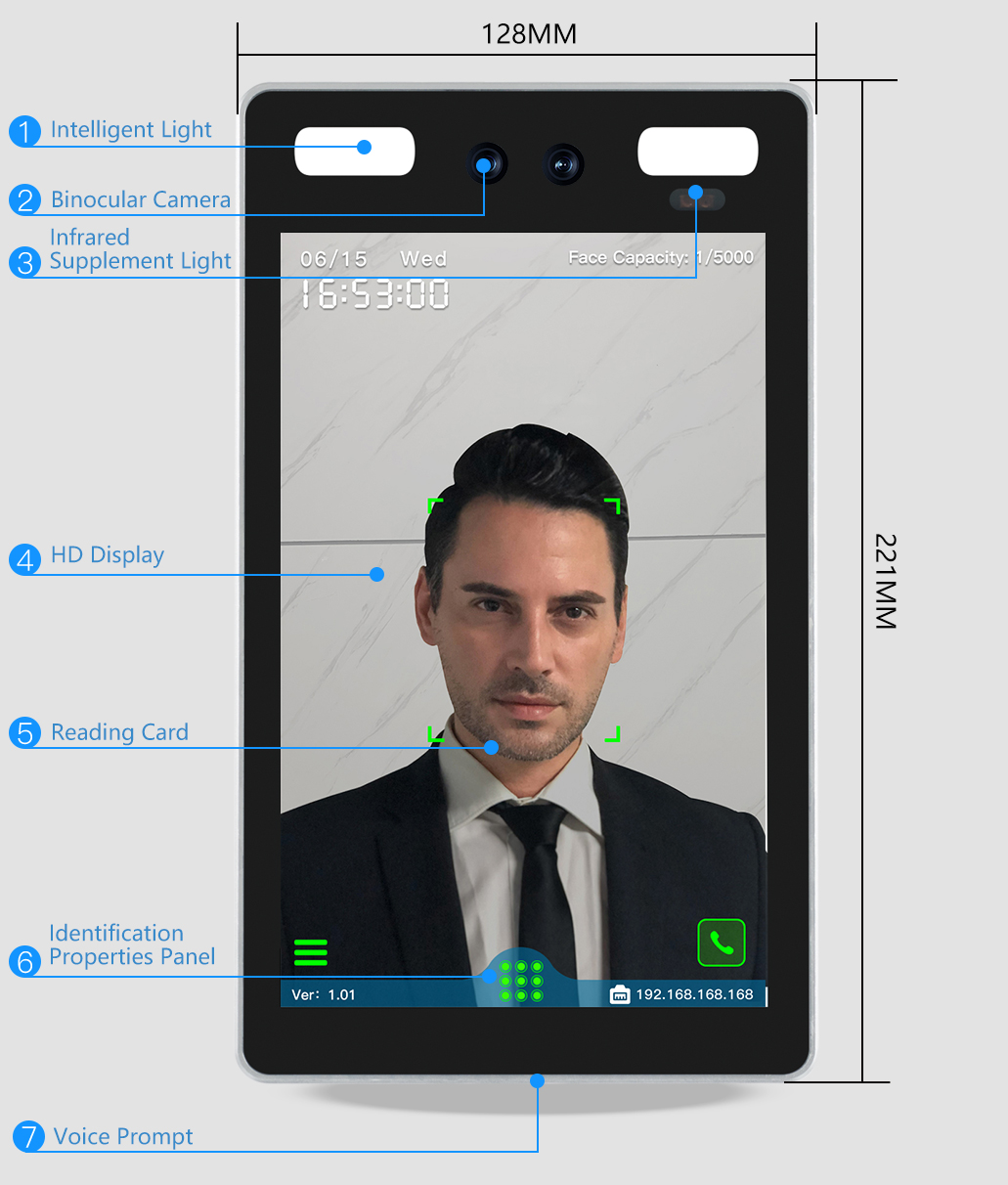

Appearance Diagram

APPEARANCE DESCRIPTION

Technical Parameters

Main Purpose:

Access control, Time Attendance
Working Voltage:

DC12V（9 ~ 14V）
Working Current:

<2000mA
Working Environment:

Temperature: -30℃～65℃；
Humidity:

10 ~ 90%, RH
Operating System:

LINUX System
User Capacity:

50,000 Faces, 50,000 Cards, 50,000 Passwords;
Record Capacity:

1 Million Records, 50,000 Record Photos, 10,000 System Records;
Recognition Distance:

0.3-3m
Recognition Speed:

< 0.3S
Material:

Metal Housing+Tempered Glass Panel
Size:

215×112×25mm
Wieght:

0.6KG

Algorithm Support:

Face Recognition, Mask Recognition
Management Mode:

Touch Screen, Desktop Software,
Cloud Software, Mobile App
Registration Mode:

Face, Password, Mifare Card
(Dual Frequency Card Optional)
Comparison Mode:

1:N/1:1
Firmware Upgrade:

Support Software OTA Upgrade or
USB Drive Upgrade
Camera:

Wide Dynamic Binocular 2 Megapixels HD Camera
Display Screen:

8-inch ISP Full View HD Screen
Storage Capacity:

Memory 256M DDR3, Storage 8GB EMMC
Communication Interface:

TCP/IP、WIFI、Wiegand26/34/66

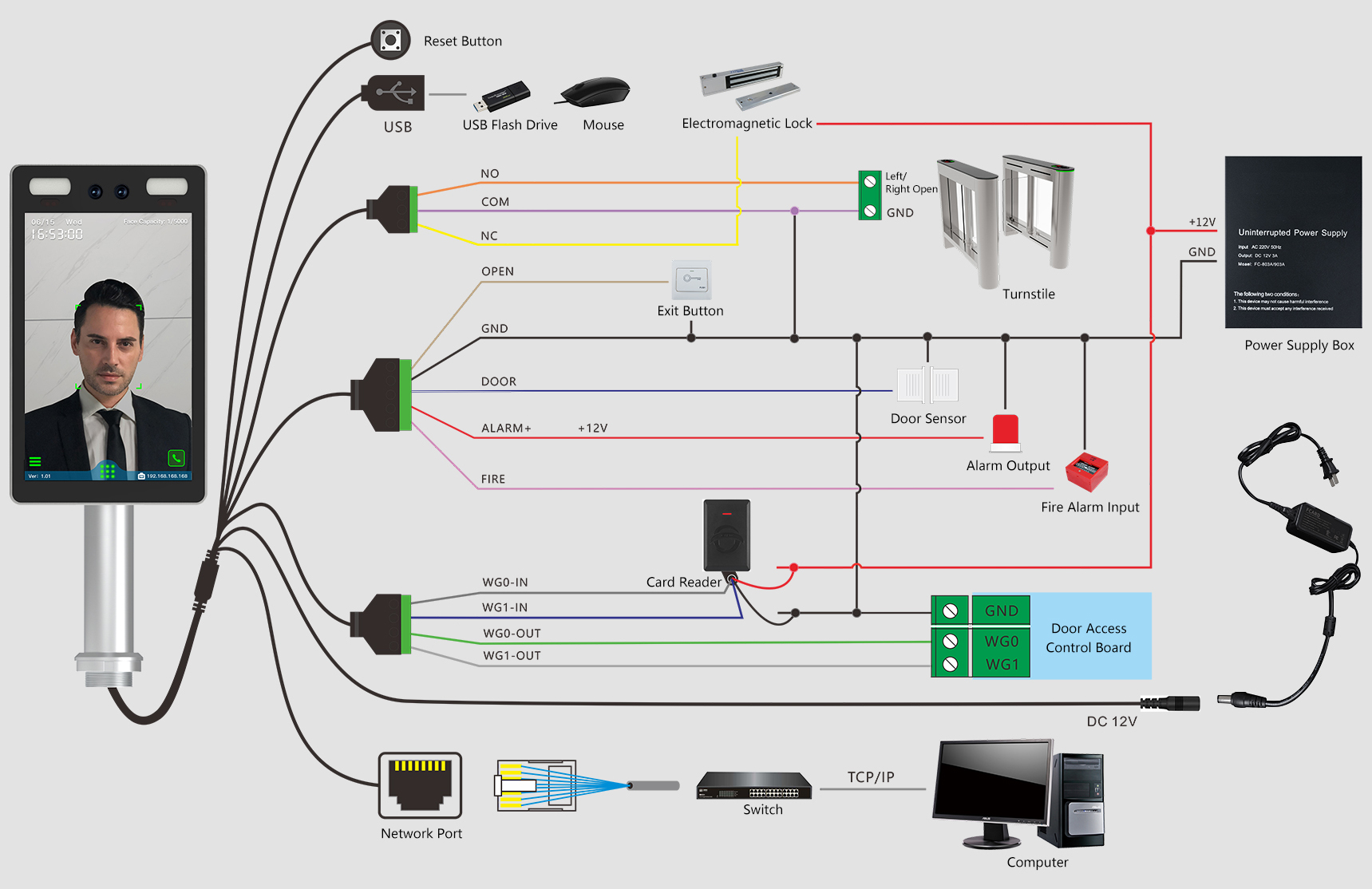

Other Interfaces:

Exit Button x 1, Door Sensor x 1,
Fire Alarm Input x 1, Alarm Output x 1, Wiegand Input x 1,
Wiegand Output x 1, Lock Control x 1, USB x 1, RS485 x 1

FC-8280

Dynamic Face Recognition Access Control Terminal (Turnstile Type)
