Multi-Function

CS System

Desktop Software Management

Support Personnel Management,

Access Control, Time Attendance,

Elevator Control, Guard Tour,

Meeting Management, Vistor Management, etc

Support ACCESS and SQL Database

BS System

Cloud Software Management

Device actively communicates with the server

Our cloud software supports computer, iPad, and mobile versions. It can be

used by installing apps or directly logging into the system through a browser

SV806 Series

AI Facial Professional CPU

Support Dual-core Cortex A7 1GHz Main Frequency,

0.6Tops NPU, Built in 256M DDR3 Memory

Specialized AI Chips for Face, Fingerprint, Palm Vein,

QR Code, Password, Mifare Card, Video Data, etc

5.5-inch
Ultra HD Display Screen

Support 720x1280 ultra high definition resolution

Provides 500 lumens of brightness, with true color LCD glass

Images can be seen clearly both indoor and outdoor

（Reading Card Function Can Be Customized）

IMX307 + GC2145

Binocular 2 Megapixel Camera

SONY IMX307 provides ultra clear color picture quality

More outstanding in facial recognition, palm vein recognition,

and QR code recognition, with faster speed and clearer and smoother images

Adopt professional glass green filter
to make the color more outstanding

Wide Dynamic Strong
Light Suppression Technology

Capable of adapting to various complex lighting

environments such as backlight and strong light,

to ensure high-precision facial recognition rates

in different scenes and environments

Support Wide Dynamic
Technology at Night Support Wide Dynamic
Technology at Strong Light Not Support Wide
Dynamic Technology

Large Data Storage

  • 20,000 Users 20,000 Faces, 10,000 Palm Veins, 10,000 Fingerprint, 20,000 Cards, 20,000 QR Codes, 20,000 Passwords

  • 可扩容至50000用户

  • 1 Million Access Records and Attendance Records

TCP/IP + WIFI
Two Communication Modes

The recommended communication distance between TCP/IP and the

switch is within 80 meters, and the WIFI distance is within 20 meters.

HTTP+MQTT+WebSocket+TCP+UDP+WEB

Multiple Communication Protocols

Support multiple communication protocols,

including HTTP, MQTT, WebSocket, TCP, UDP and WEB

Support WEB Management

Can directly open the WEB page through the IP address;

support personnel, department, equipment parameters,

record managements and other operation settings

Touch Screen

When it is not convenient for users to manage

their devices through a computer, the device

provides a touch screen menu management function,

which can directly authorize personnel for opening doors,

time attendance, or taking elevator

Reading Card Technology
(Mifare Card)

13.56MHz supports not only Mifare cards, but also NFC cards,

NFC phones, CPU cards

(Can set the card type and whether to enable
encryption and card control technology)

Fingerprint Identification

Using High-resolution Texture Recognition Lenses

Built in liveness detecting sensor, supports massive

fingerprint authentication and liveness judgment

Palm Vein Recognition

Using 850nm light speed to determine the authenticity of palm veins

Combining texture and palm shape for algorithmic operations

Utilizing human biometrics to achieve personal identification

Less error rate, higher accuracy, faster speed, non-contact

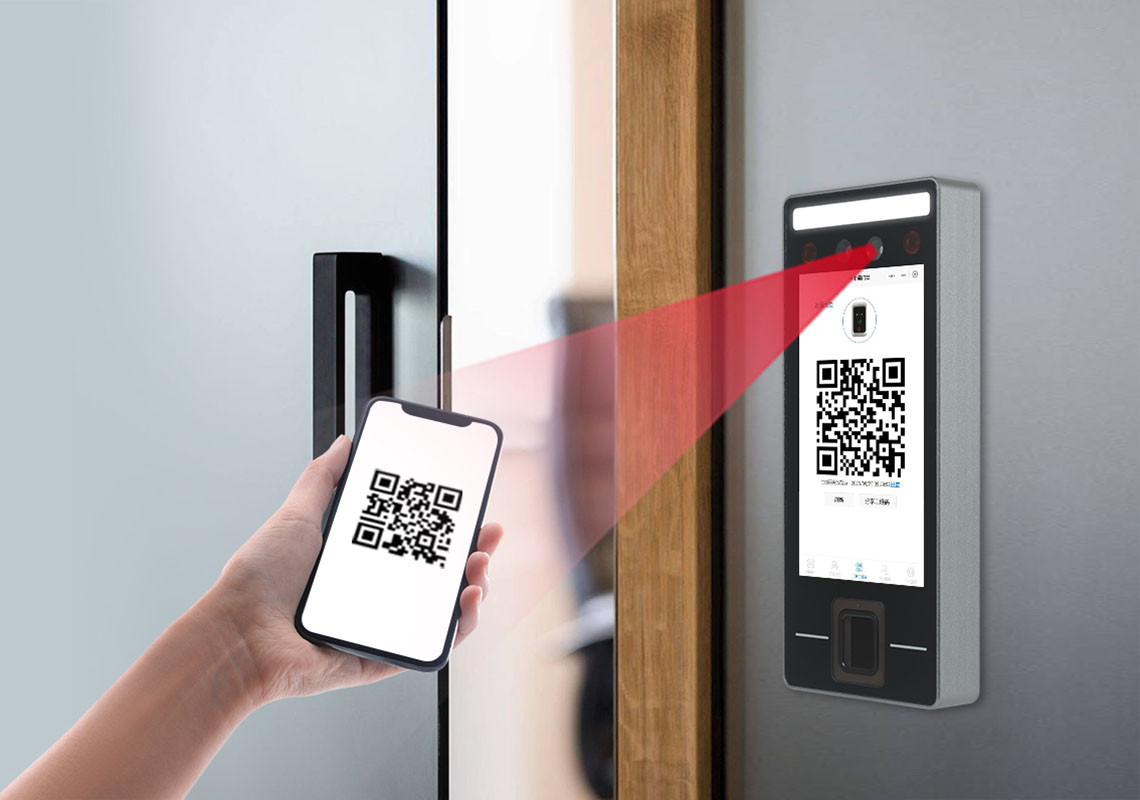

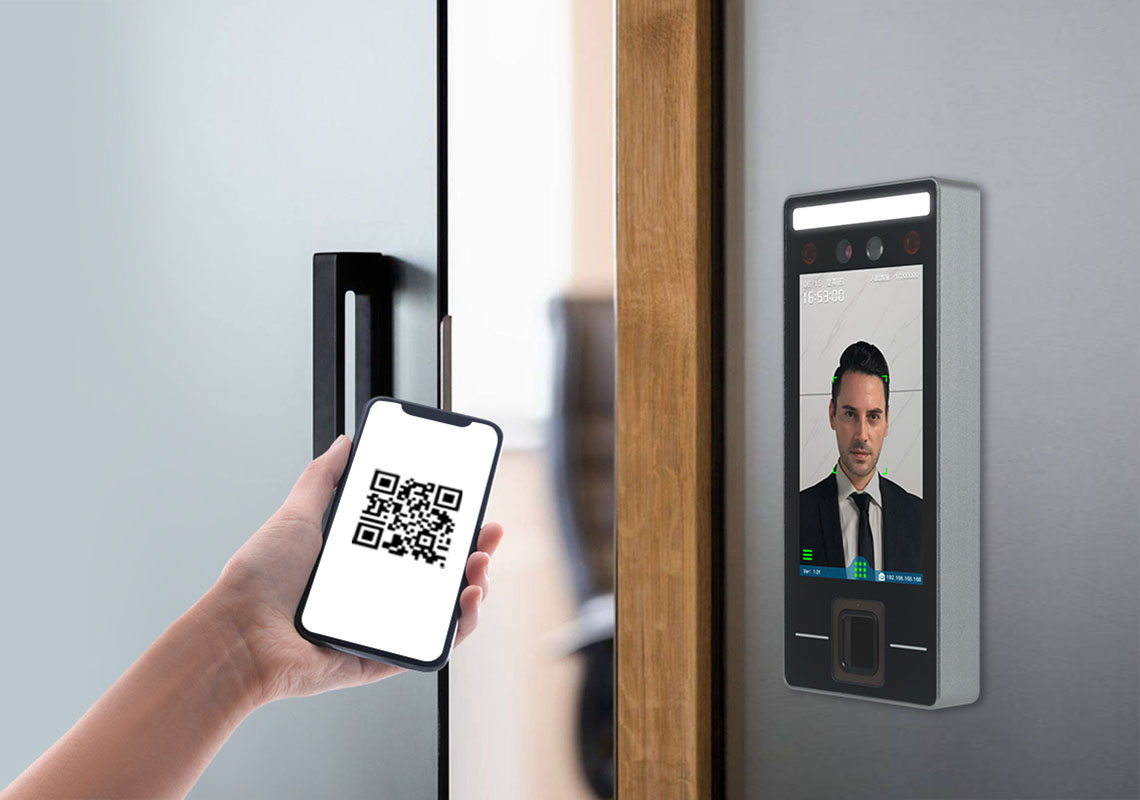

QR Code Recognition

Utilizing existing color high-definition cameras

combined with rolling QR code algorithms, to achieve

QR code recognition and authentication

QR code door opening, QR code attendance,

QR code visitor authentication and QR code to take elevator

Face Recognition Technology

Owner: Michael

Elevator: Take Elevator to the 6th Floor

Facial Recognition
to Control Elevator

Swipe Card/Facial Recognition/QR Code/Password/
Palm Vein/Fingerprint Verification to Take Elevator

It Can Cooperate with the Intercom System to
Automatically Pick Up and Drop Off Visitors

Video Intercom

Support Direct Calling and
Dial-up Calling Modes

Standby Advertising
Image Playback

Can be Used for Notification and Promotion

Can switch wallpapers

Some Models Support Advertising
Images and Video Playback

13 Combination Authentication Modes

Selecting the Following Confirmation Modes As Needed

Support Multiple

National Languages

Built in Multi-national Voice

USB Flash Drive to
Download Report

  • Attendance Schedule
    by USB drive

  • View Attendance Records

Support Independent Attendance

Can Independently Complete Attendance Work and Output the Reports

Support OTA Upgrade and
USB Flash Drive Upgrade

Device Continuously Upgrades to Enhance Application Value

Ver:1.0

Ver:2.0

Ver:3.0

Ver:4.0

Ver:5.0

Ver:6.0

Linux 4.0.9 Embedded

System Advantages

OEM Technology

Provide self-service OEM technology to achieve comprehensive customization

of OEM or ODM for product models, advertising images,

product names, manufacturer names, software information, etc

Professionally Meeting the Needs of Various Channels
Users can modify the OEM information according to their needs

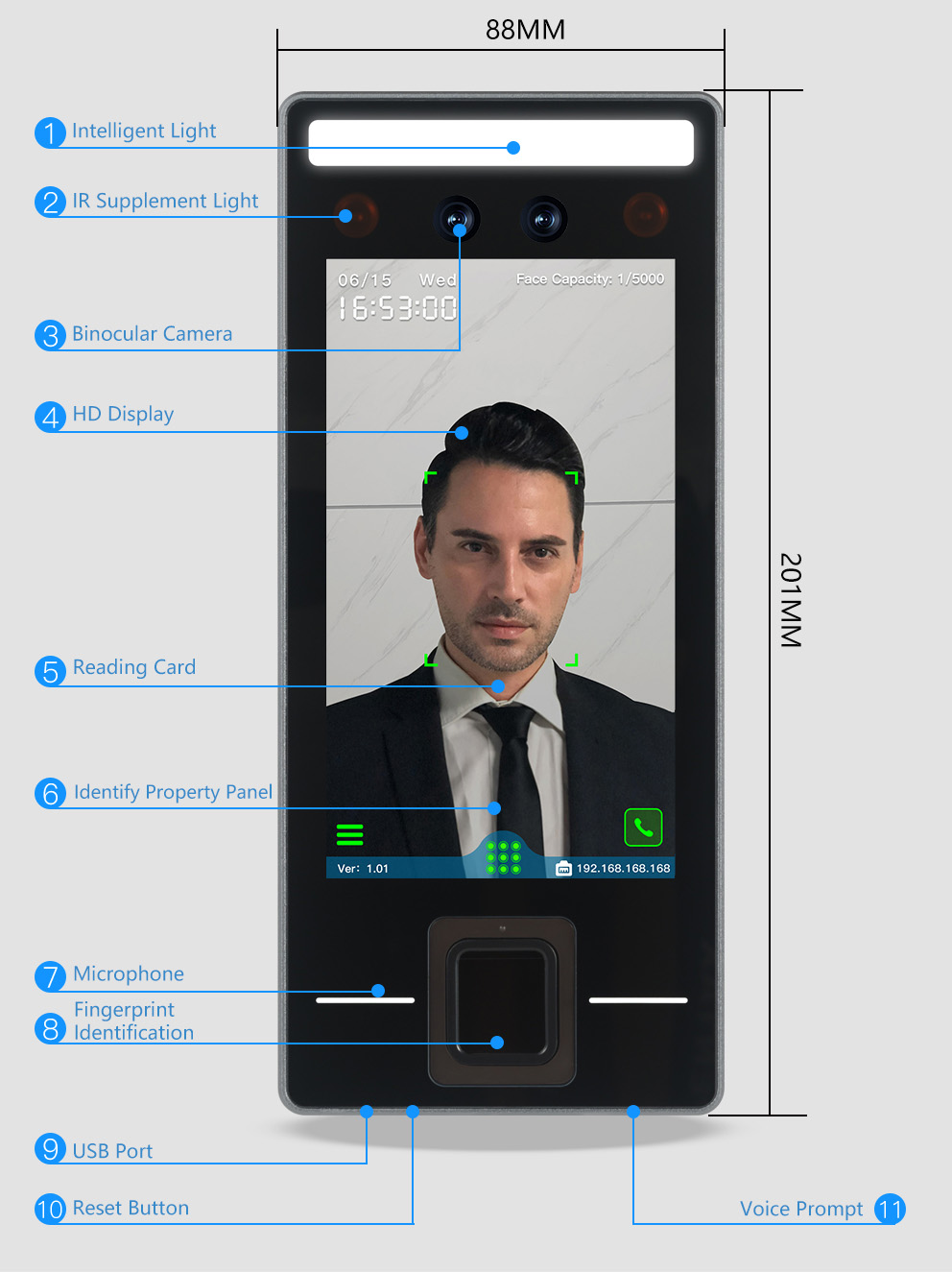

Appearance Diagram

APPEARANCE DESCRIPTION

Technical Parameters

  • Main Uses:

    Access Control, Time Attendance, Video Intercom,
    Elevator Control, Cabinet Lock

  • Working Voltage:

    DC12V（9 ~ 14V）

  • Working Current:

    <2000mA

  • Working Environment:

    Temperature: -30℃～65℃；
    Humidity: 10 ~ 90%, RH

  • Operating System:

    LINUX System

  • User Capacity:

    20,000 Faces; 20,000 QR Codes; 20,000 Cards; 20,000 Passwords; 10,000 Fingerprint; 10,000 Palms

  • Record Capacity:

    1 Million Records; 10,000 Recording Photos;
    10,000 System Records

  • Recognition Distance:

    0.3m-3m

  • Recognition Speed:

    < 0.3S

  • Material:

    Metal Housing+Tempered Glass Panel

  • Size:

    200×88×23mm

  • Weight:

    0.5KG

  • Elevator Expansion:

    Support for Elevator and Cabinet Lock

  • Algorithm:

    Face Recognition, Fingerprint Identification,
    Palm Vein Recognition, QR Code Verification

  • Management Mode:

    Touch Screen, Desktop Software,
    Cloud Software, Mobile App

  • Registration Methods:

    Face, Palm Vein, Password, Mifare Card, Dual Frequency Card Optional (ID Card and Mifare Card)

  • Comparison Mode:

    1:N/1:1

  • Firmware Upgrade:

    Software OTA Upgrade or USB Flash Drive Upgrade

  • Camera:

    Wide Dynamic Binocular 2 Megapixel HD Camera

  • Display Screen:

    5.5-inch ISP Full-view HD Screen

  • Storage:

    256M DDR3 Memory, 8GB EMMC Storage

  • Communication:

    TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66

  • Other Interfaces:

    Exit Button x1, Door Sensor x1, Fire Input x1,
    Alarm Output x1, Wiegand Output x1, Wiegand Input x1,
    Magnetic Lock Control x1, USB x1, RS485 x1

  • Installation Ways:

    Wall Mounted or Installed on the Turnstile

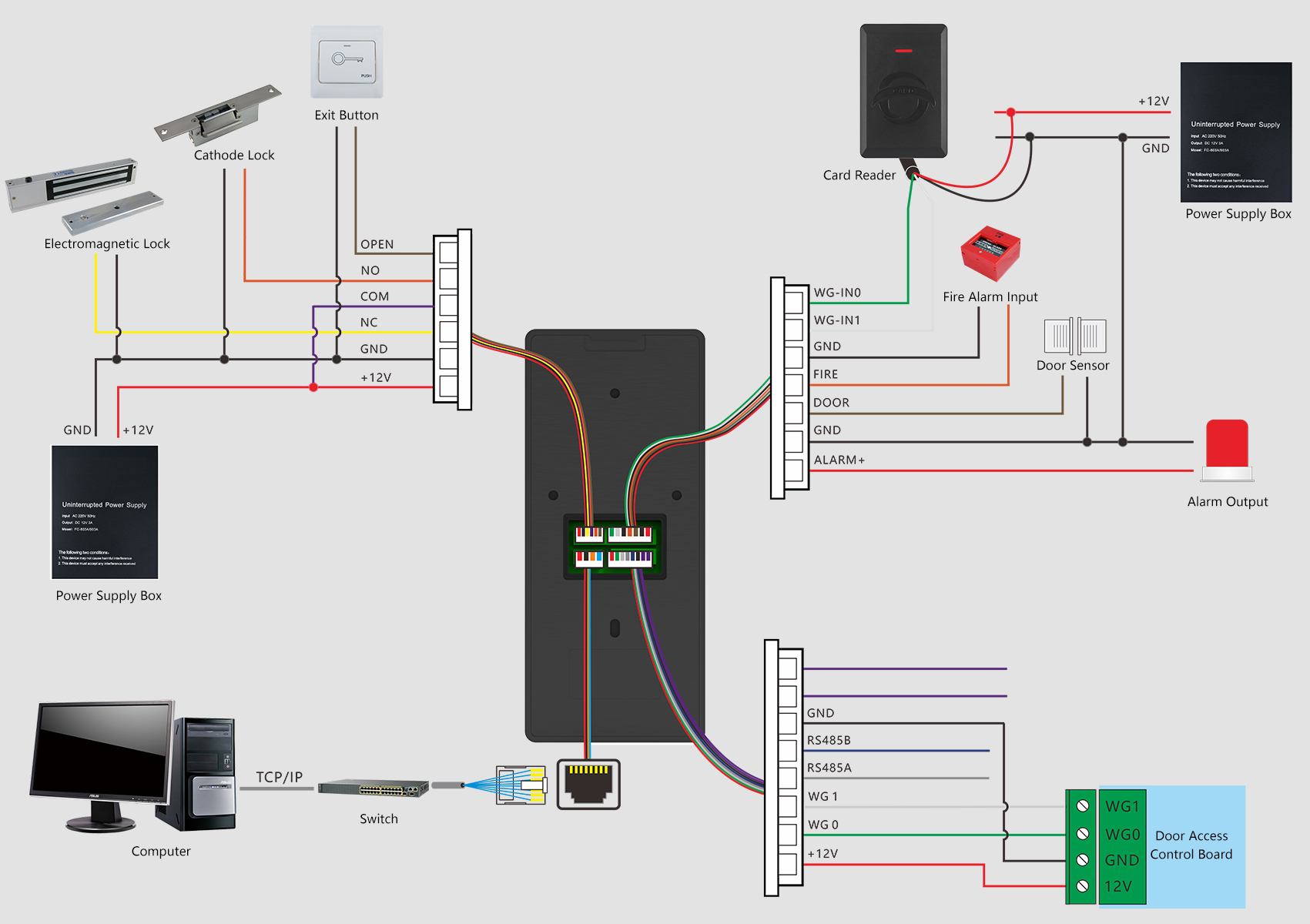

Wiring Diagram

Wiring Diagram
