FC-8245 Fingerprint& Face Recognition Terminal

Multi-Function

High-definition
Screen
High-definition
Binocular Camera
5,000 Faces
200,000
Attendance Logs
LINUX System
Binocular Liveness Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong Light Recognition
Voice
Remind
QR Code
Recognition
Palms
Recognition
AI
Processor
CS
Management
Cloud
Management
Fingerprint
Identification
Remote
Upgrade
SDK
Integration
Multi-communication
Mode
Free Docking to
Other Platforms

CS System

Desktop Software Management

Support Personnel Management,

Access Control, Time Attendance,

Elevator Control, Guard Tour,

Meeting Management, Vistor Management, etc

Support ACCESS and SQL Database

BS System

Cloud Software Management

Device actively communicates with the server

Our cloud software supports computer, iPad, and mobile versions. It can be

used by installing apps or directly logging into the system through a browser

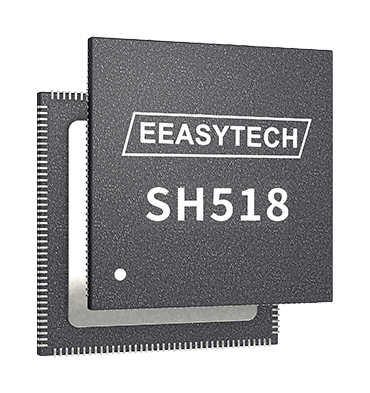

SH518 Series

AI Facial Professional CPU

Support Dual-Core 1GHz, 0.8 Tops NPU

Built-in 256M DDR3 Memory

Specialized AI Chips for Face, Fingerprint, Palm Vein,

QR Code, Password, Card, etc.

4.5 Inches / 5 Inches
HD Display Screen

Support 480×854 ultra HD resolution

Provides 400 lumens of brightness

Images can be seen clearly both indoor and outdoor

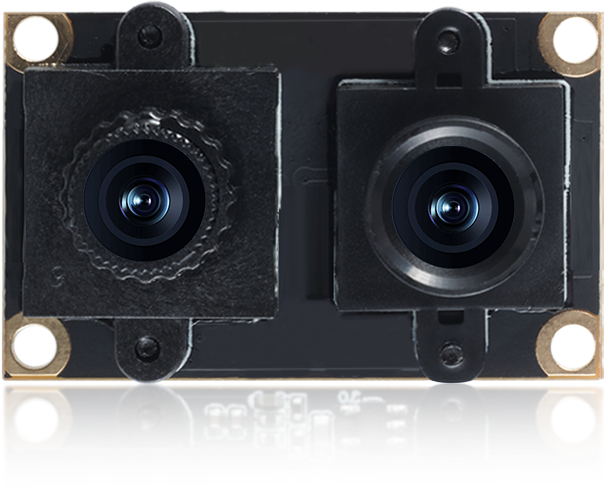

GC1084 + GC1084

Binocular Camera

Adopt double 1 Megapixel true color COMS chip

It is more outstanding in face, palm vein and QR code recognition.

The speed is faster and the images are clearer and smoother.

Adopt professional glass green filter
to make the color more outstanding

Wide Dynamic Strong
Light Suppression Technology

Capable of adapting to various complex lighting

environments such as backlight and strong light,

to ensure high-precision facial recognition rates

in different scenes and environments

Support Wide Dynamic
Technology at Night Support Wide Dynamic
Technology at Strong Light Not Support Wide
Dynamic Technology

Large Data Storage

5,000 Users5,000 Faces, 5,000 Palm Veins, 5,000 Fingerprints, 5,000 Cards, 5,000 Passwords
可扩容至20000用户
200,000 Attendance Logs

TCP/IP + WIFI
Two Communication Modes

The recommended communication distance between TCP/IP and the

switch is within 80 meters, and the WIFI distance is within 20 meters.

HTTP+MQTT+WebSocket+TCP+UDP+WEB

Multiple Communication Protocols

Support multiple communication protocols,

including HTTP, MQTT, WebSocket, TCP, UDP and WEB

Support WEB Management

Can directly open the WEB page through the IP address;

support personnel, department, equipment parameters,

record managements and other operation settings

Touch Screen

When it is not convenient for users to manage

their devices through a computer, the device

provides a touch screen menu management function,

which can directly authorize personnel for opening doors,

time attendance, or taking elevator

Reading Card Technology
(Mifare Card)

13.56Mhz supports not only Mifare cards,

but also NFC cards and CPU cards.

(Can set the card type and whether to enable
encryption and card control technology)

Fingerprint Identification

Using High-resolution Texture Recognition Lenses

Built in liveness detecting sensor, supports massive

fingerprint authentication and liveness judgment

Palm Vein Recognition

Using 850nm light speed to determine the authenticity of palm veins

Combining texture and palm shape for algorithmic operations

Utilizing human biometrics to achieve personal identification

Less error rate, higher accuracy, faster speed, non-contact

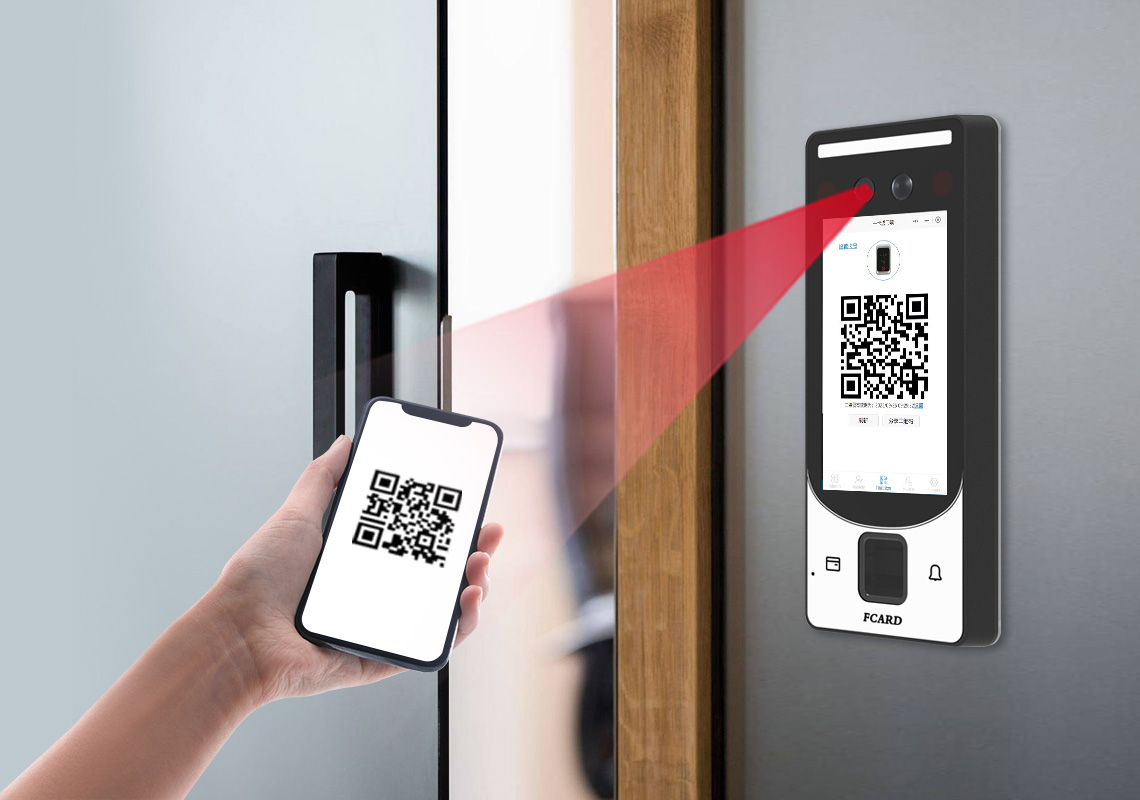

QR Code Recognition

Utilizing existing color high-definition cameras

combined with rolling QR code algorithms, to achieve

QR code recognition and authentication

QR code door opening, QR code attendance,

QR code visitor authentication and QR code to take elevator

Face

Recognition Technology

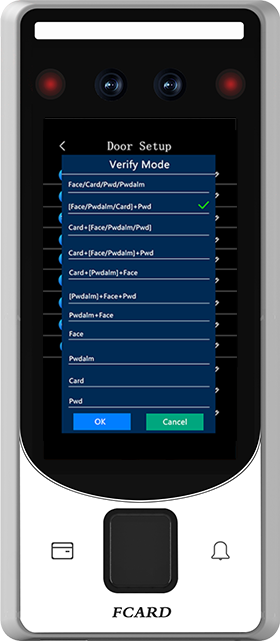

13 Combination Authentication Modes

Selecting the Following Confirmation Modes As Needed

Support Multiple

National Languages

Built in Multi-national Voice

USB Flash Drive to
Download Report

Attendance Schedule
by USB drive
View Attendance Records

Support Independent Attendance

Can Independently Complete Attendance Work and Output the Reports

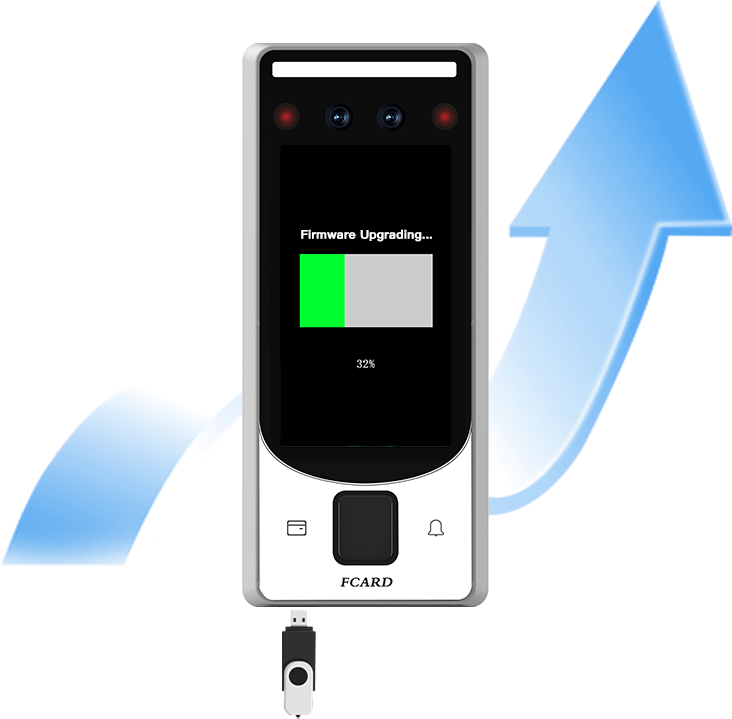

Support OTA Upgrade and
USB Flash Drive Upgrade

Device Continuously Upgrades to Enhance Application Value

Ver:1.0

Ver:2.0

Ver:3.0

Ver:4.0

Ver:5.0

Ver:6.0

OEM Technology

Provide self-service OEM technology to achieve comprehensive customization

of OEM or ODM for product models, advertising images,

product names, manufacturer names, software information, etc

Professionally Meeting the Needs of Various Channels

Users can modify the OEM information according to their needs

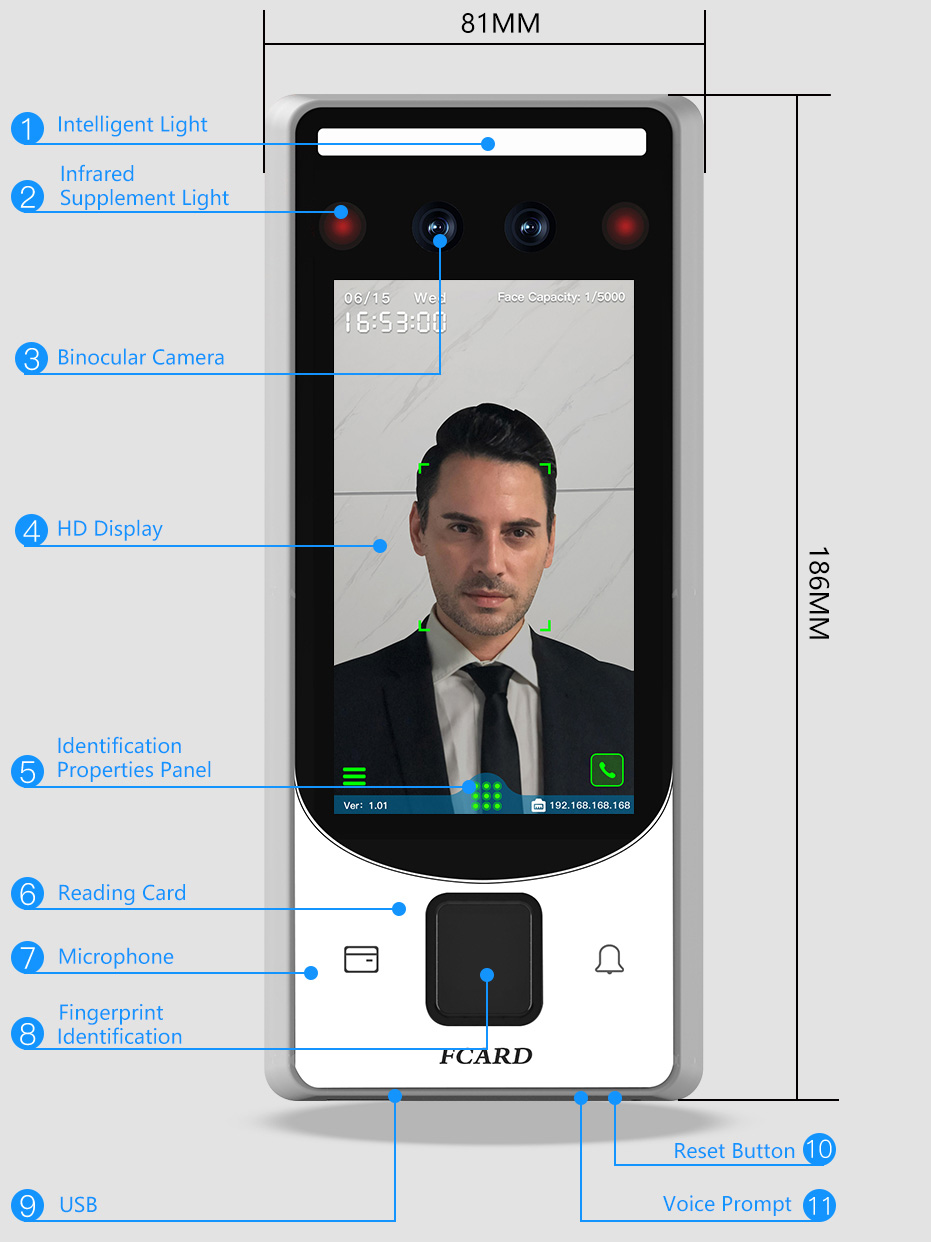

Appearance Diagram

APPEARANCE DESCRIPTION

Technical Parameters

Main Uses:

Access Control, Time Attendance
Working Voltage:

DC12V（9 ~ 14V）
Working Current:

<1000mA
Working Environment:

Temperature: -30℃～65℃；
Humidity: 10 ~ 90%, RH
Operating System:

LINUX System
User Capacity:

5,000 Faces; 5,000 QR Codes; 5,000 Cards;
5,000 Passwords; 5,000 Fingerprints; 5,000 Palms
Record Capacity:

200,000 Records; 10,000 Recording Photos;
10,000 System Records
Recognition Distance:

0.3m-2m
Recognition Speed:

< 0.3S
Material:

ABS Plastic Housing+Acrylic Glass Panel
Size:

165×79×21mm
Weight:

0.6KG

Algorithm:

Face Recognition, Fingerprint Identification,
Palm Vein Recognition, QR Code Verification
Management Mode:

Touch Screen, Desktop Software,
Cloud Software, Mobile App
Registration Methods:

Face, Palm Vein, Password, Mifare Card
Comparison Mode:

1:N/1:1
Firmware Upgrade:

Software OTA Upgrade
Camera:

Wide Dynamic Binocular 2 Megapixel HD Camera
Display Screen:

4.5-inch ISP Full-view HD Screen
Storage:

256M DDR3 Memory, 8GB EMMC Storage
Communication:

TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66

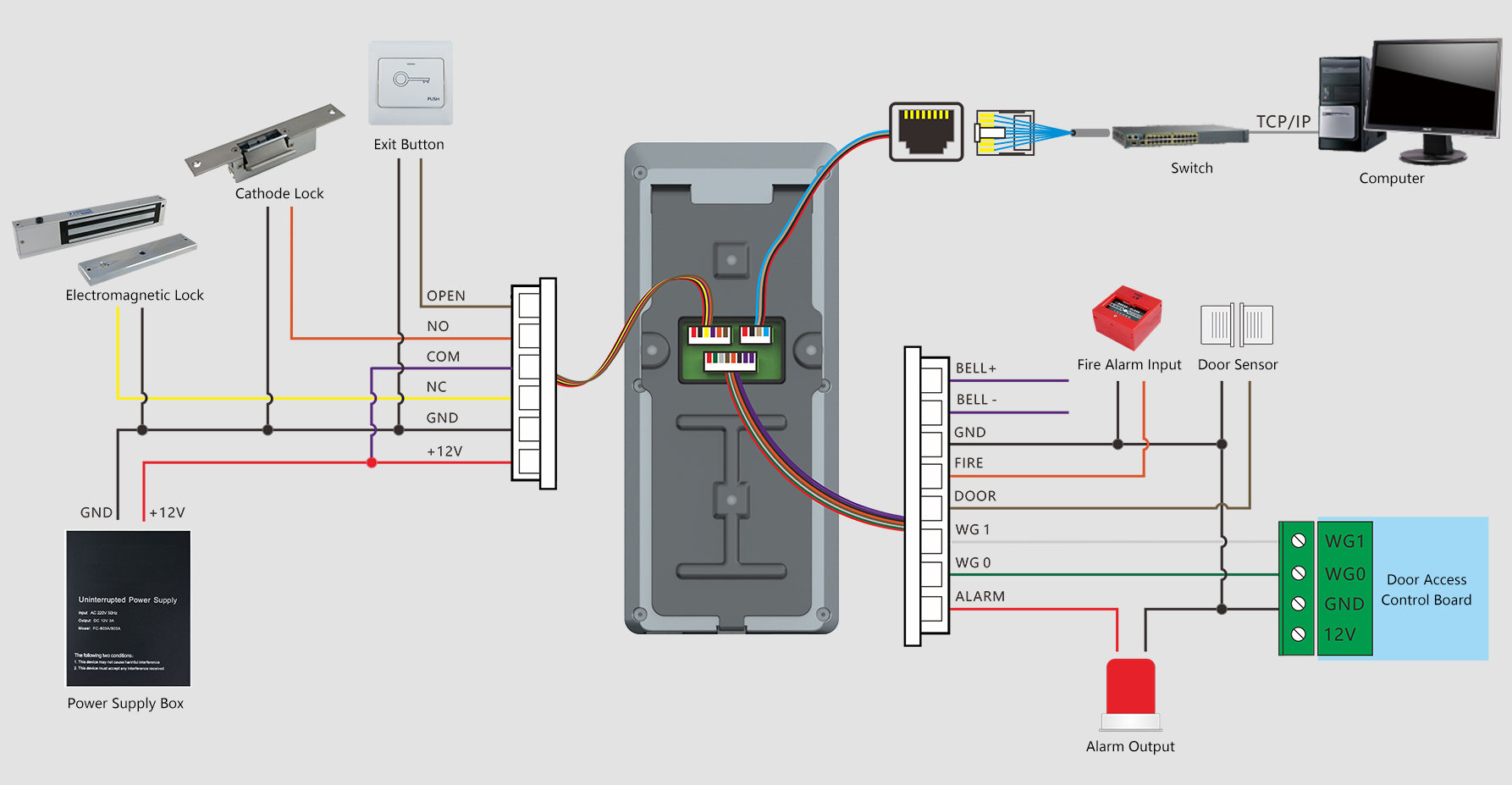

Other Interfaces:

Exit Button x1, Door Sensor x1,
Alarm Output x1, Wiegand Output x1, Magnetic Lock Control x1
Installation Ways:

Wall Mounted or Installed on the Turnstile

FC-8245

Fingerprint&Face Recognition Terminal
