FC-8201 Dynamic Face Recognition Terminal (Turnstile Type)

Multi-Function

High-definition
Screen
High-definition
Binocular Camera
20,000 Faces
1 Million Logs
LINUX System
Binocular Liveness Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong Light Recognition
Voice
Remind
QR Code
Recognition
Palms
Recognition
Video
Intercom
Lift
Management
Cloud
Management
U Disk
To Export Data
Remote
Upgrade
SDK
Integration
Multi-communication
Mode
Free Docking to
Other Platforms

CS System

Desktop Software Management

Support Personnel Management,

Access Control, Time Attendance,

Elevator Control, Guard Tour,

Meeting Management, Vistor Management, etc

Support ACCESS and SQL Database

BS System

Cloud Software Management

Device actively communicates with the server

Our cloud software supports computer, iPad, and mobile versions. It can be

used by installing apps or directly logging into the system through a browser

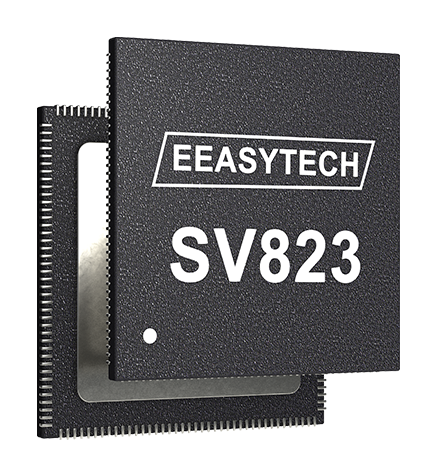

SV823 Series

AI Facial Professional CPU

Supports Dual-Core 1.2GHz Main Frequency,

1.0Tops NPU, Built in 1G DDR3 Memory

Specialized AI Chips for Face, Fingerprint, Palm Vein,

QR Code, Password, Mifare Card, Video Data, etc

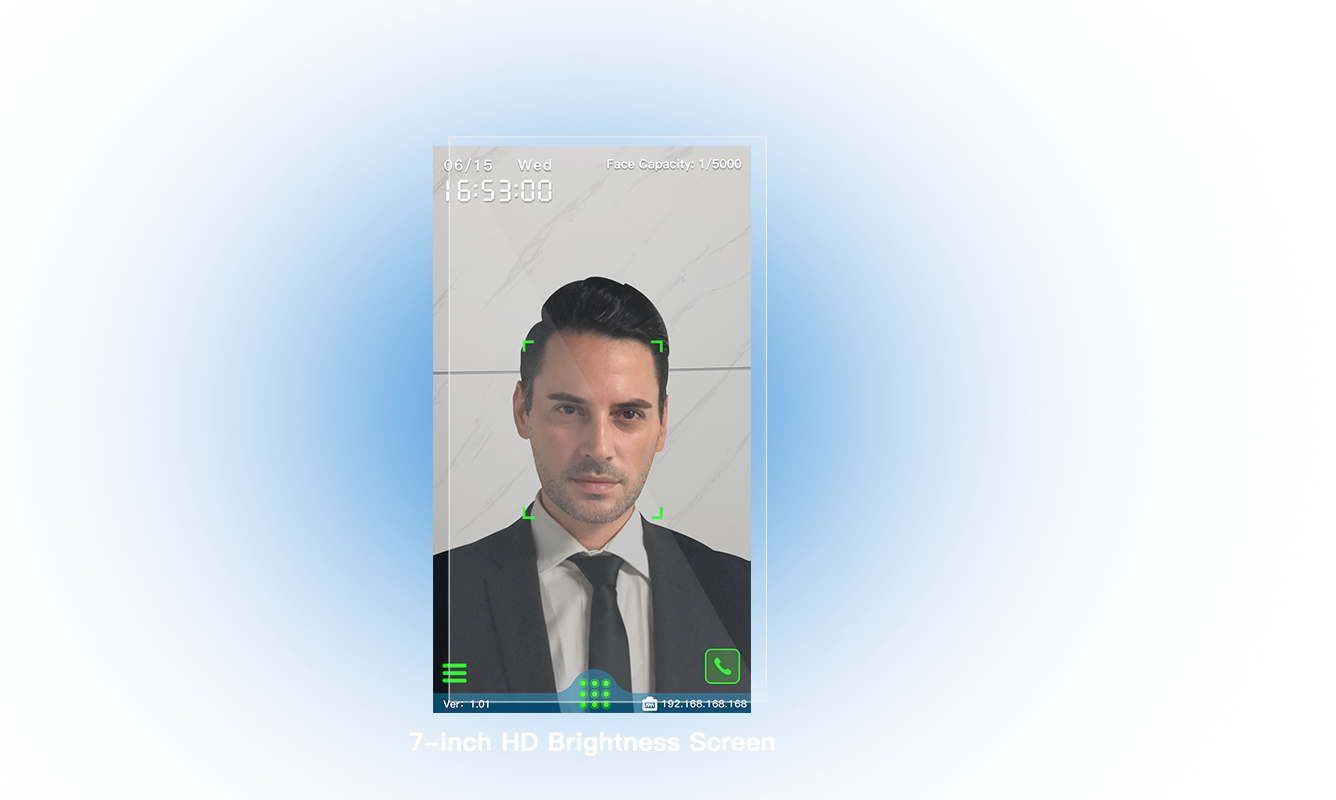

7 Inches

Ultra HD Display Screen

Support 800x1280 ultra HD resolution

Provides 500 lumens of brightness, with true color LCD glass

Images can be seen clearly both indoor and outdoor

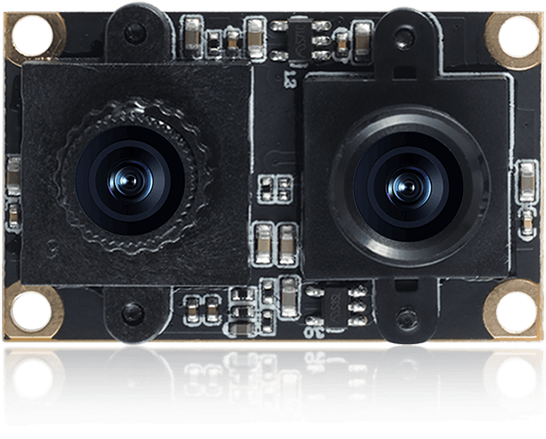

GC2093 + GC2053

Binocular Camera

Adopting Dual 2 Megapixel True Color COMS Chips

More Outstanding in Facial Recognition

Palm Vein Recognition, and QR Code Recognition

Faster speed, clearer and smoother images

Simultaneously using 3-frame level

strong backlight recognition technology

Under various ultra strong and low light conditions

it can still be clearly displayed

Adopt professional glass green filter
to make the color more outstanding

Wide Dynamic Strong
Light Suppression Technology

Capable of adapting to various complex lighting

environments such as backlight and strong light,

to ensure high-precision facial recognition rates

in different scenes and environments

Support Wide Dynamic
Technology at Night Support Wide Dynamic
Technology at Strong Light Not Support Wide
Dynamic Technology

Large Data Storage

20,000 Users 20,000 Faces, 10,000 Palm Veins, 20,000 Cards, 20,000 QR Codes, 20,000 Passwords
可扩容至50000用户
1 Million Access Records and Attendance Records

TCP/IP+WIFI+4G (Optional)

Three Communication Modes

4G Communication Can be Customized

The recommended communication distance between TCP/IP

and the switch is within 80 meters, and the WIFI distance is within 20 meters.

HTTP+MQTT+WebSocket+TCP+UDP+WEB

Multiple Communication Protocols

Support multiple communication protocols,

including HTTP, MQTT, WebSocket, TCP, UDP and WEB

Support WEB Management

Can directly open the WEB page through the IP address;

support personnel, department, equipment parameters,

record managements and other operation settings

Touch Screen

When it is not convenient for users to manage

their devices through a computer, the device

provides a touch screen menu management function,

which can directly authorize personnel for opening doors,

time attendance, or taking elevator

Reading Card Technology
(Mifare Card)

13.56MHz supports not only Mifare cards, but also NFC cards,

NFC phones, CPU cards

(Can set the card type and whether to enable
encryption and card control technology)

Temperature Detection

Built In Facial Temperature Recognition Algorithm

Using medical temperature sensor, high temperature

detecting will alarm and not allowed to entry

This function can be customized

Palm Vein Recognition

Using 850nm light speed to determine the authenticity of palm veins

Combining texture and palm shape for algorithmic operations

Utilizing human biometrics to achieve personal identification

Less error rate, higher accuracy, faster speed, non-contact

QR Code Recognition

Utilizing existing color high-definition cameras

combined with rolling QR code algorithms, to achieve

QR code recognition and authentication

QR code door opening, QR code attendance,

QR code visitor authentication and QR code to take elevator

Face Recognition Technology

Video Intercom

Support Direct Calling and
Dial-up Calling Modes

Standby Advertising
Image Playback

Can be Used for Notification and Promotion

Can switch wallpapers

Some Models Support Advertising
Images and Video Playback

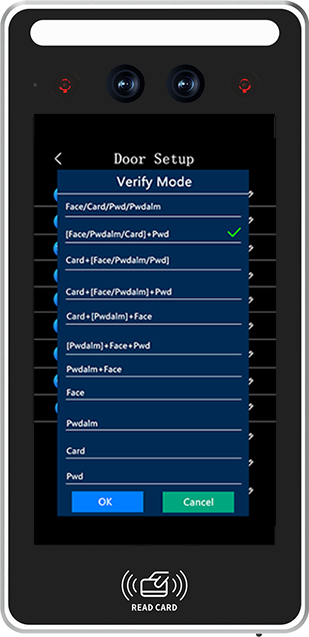

13 Combination Authentication Modes

Selecting the Following Confirmation Modes As Needed

Support Multiple

National Languages

Built in Multi-national Voice

USB Flash Drive to
Download Report

Attendance Schedule
by USB drive
View Attendance Records

Support Independent Attendance

Can Independently Complete Attendance Work and Output the Reports

Support OTA Upgrade and
USB Flash Drive Upgrade

Device Continuously Upgrades to Enhance Application Value

Ver:1.0

Ver:2.0

Ver:3.0

Ver:4.0

Ver:5.0

Ver:6.0

Linux 4.0.9 Embedded

System Advantages

OEM Technology

Provide self-service OEM technology to achieve comprehensive customization

of OEM or ODM for product models, advertising images,

product names, manufacturer names, software information, etc

Professionally Meeting the Needs of Various Channels

Users can modify the OEM information according to their needs

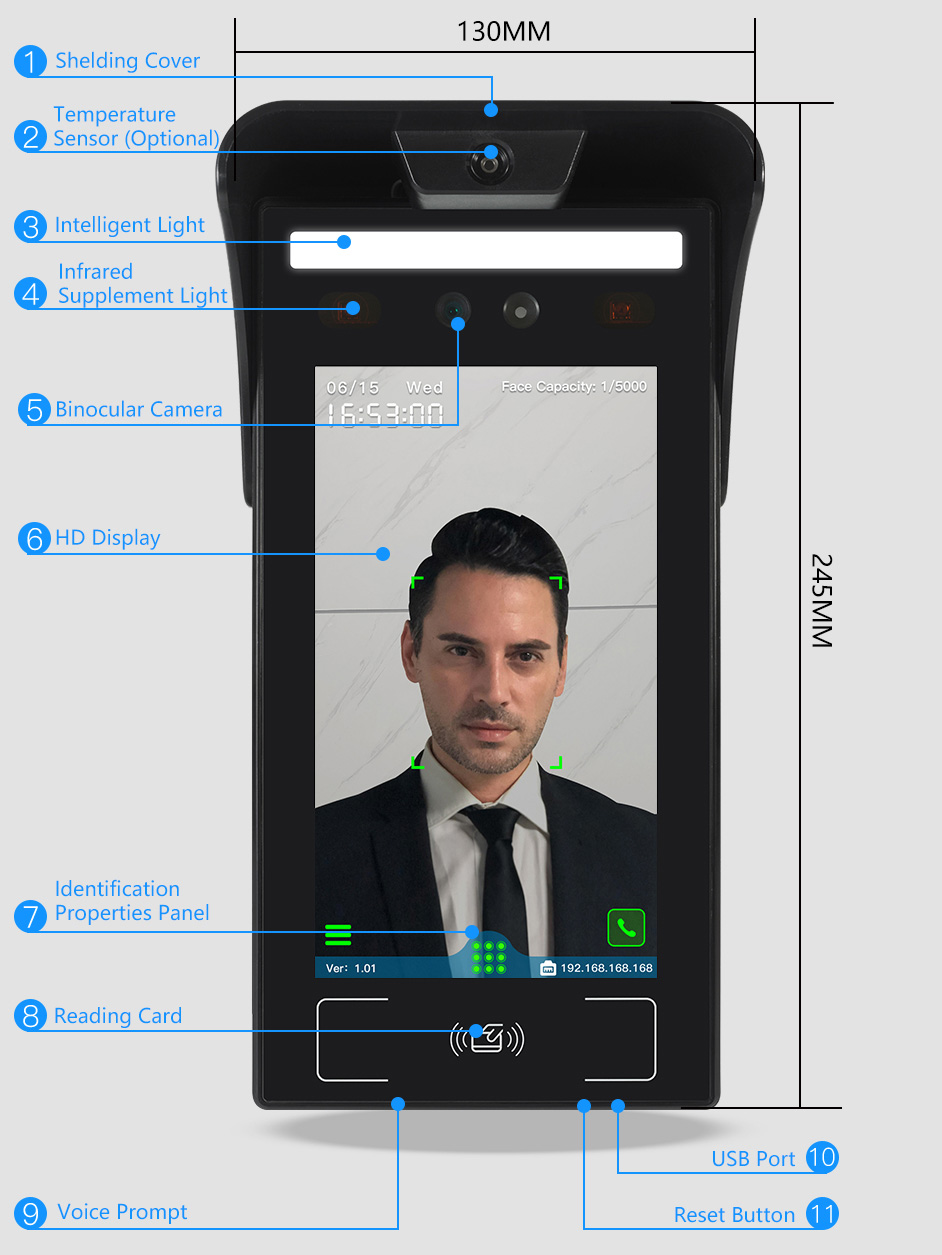

Appearance Diagram

APPEARANCE DESCRIPTION

Technical Parameters

Main Uses:

Access Control, Time Attendance, Video Intercom
Working Voltage:

DC12V（9 ~ 14V）
Working Current:

<2000mA
Working Environment:

Temperature: -30℃～65℃；
Humidity: 10 ~ 90%, RH
Operating System:

LINUX System
User Capacity:

20,000 Faces; 20,000 QR Codes; 20,000 Cards;
20,000 Passwords; 10,000 Palms
Record Capacity:

1 Million Records; 10,000 Recording Photos;
10,000 System Records
Recognition Distance:

0.3m-3m
Recognition Speed:

< 0.3S
Material:

ABS Plastic Casing+Tempered Glass Panel
Size:

245×130×25mm
Weight:

0.6KG

Algorithm:

Face Recognition, Palm Vein Recognition,
QR Code Verification
Management Mode:

Touch Screen, Desktop Software,
Cloud Software, Mobile App
Registration Methods:

Face, Palm Vein, Password, Mifare Card, Dual Frequency Card Optional (ID Card and Mifare Card)
Comparison Mode:

1:N/1:1
Firmware Upgrade:

Software OTA Upgrade or USB Flash Drive Upgrade
Camera:

Wide Dynamic Binocular 2 Megapixel HD Camera
Display Screen:

7-inch ISP Full-view HD Screen
Storage:

256M DDR3 Memory, 8GB EMMC Storage
Communication:

TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66

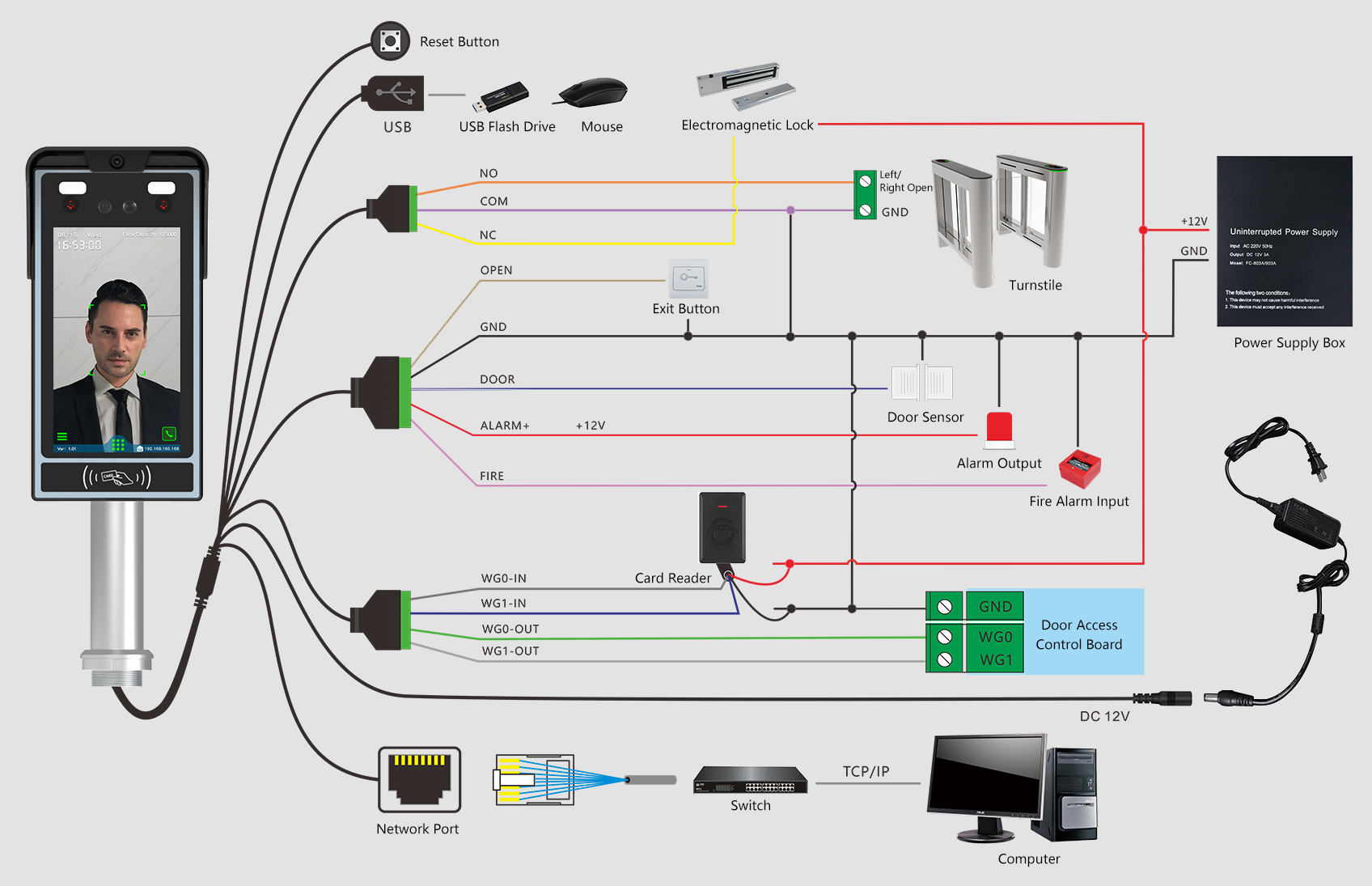

Other Interfaces:

Exit Button x1, Door Sensor x1, Fire Input x1,
Alarm Output x1, Wiegand Output x1, Wiegand Input x1,
Magnetic Lock Control x1, USB x1, RS485 x1
Installation Ways:

Wall Mounted or Installed on the Turnstile
