Wiring Diagram of FC-8820A Two Doors Access Control Board and Electric Control Lock

Details of the problem:

Hello, I want to connect the electric lock to the FC-8820A two doors access control board, how to connect? Please provide the connection diagram of the two doors access control board, thank you

Expert answer:

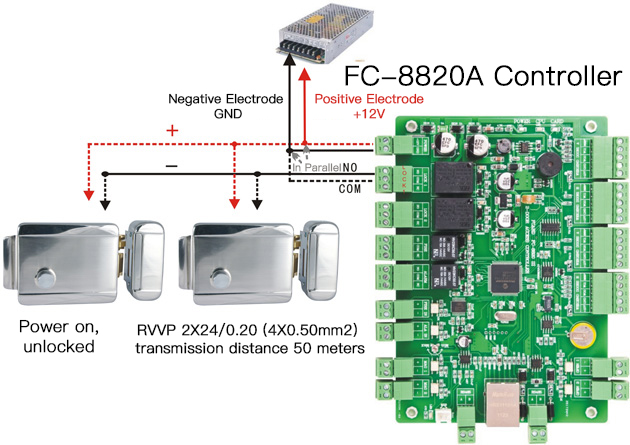

Hello, thank you for purchasing our company's access control products, you can refer to the following pictures to connect
