FC-185 RFID card reader, using advanced radio frequency receiving circuit design and embedded microcontroller, combined with efficient decoding algorithms, completes the reception of 64bits Read-Only EM4100 compatible ID cards (EM cards).

FC-185 RFID card reader is suitable for various radio frequency identification applications such as access control, time attendance, charging, anti-theft, etc.

Product Parameters

Working Mode: DC10.8-13.8V    -> Standard DC12V

Antenna: Build in

Working Current: 50-70mA

Communication Distance: 120m

Transfer Way: Realtime

Reading Speed: < 0.2s

Reading Interval: < 0.5s

Working Humidity: 10-90%

Build in Speaker: Buzzer

LED: Built in three groups

Working Temperature: -35℃-75℃

Reading Frequency: 125KHz / 13.56MHz

Device Color: Silver + Grey

Size: 87L x 87W x 23H mm

Models: FC-185E, FC-185M, FC-185H, FC-185S

Networking: Wiegand 26bits / Wiegand 34 standard format data output

Shell Material: PVC and Spray-painting  > Internal have black resin adhesive(prevent water)

Reading Distance: 0-60mm(ID card)   0-50mm (Mifare card)

Product Introduction

RFID Reader

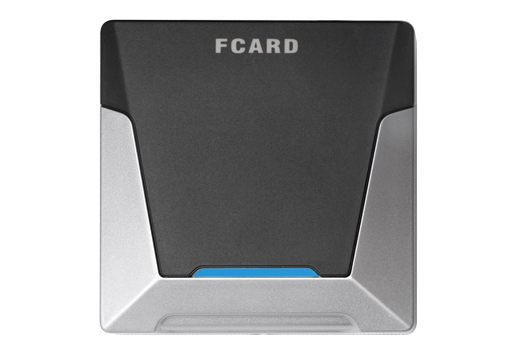

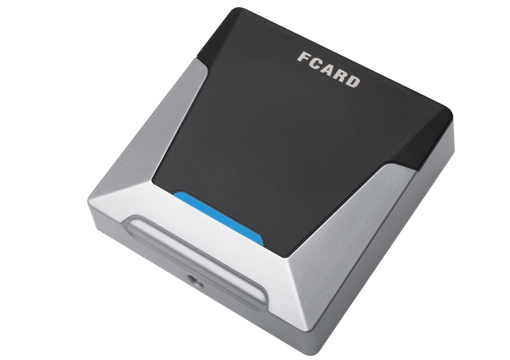

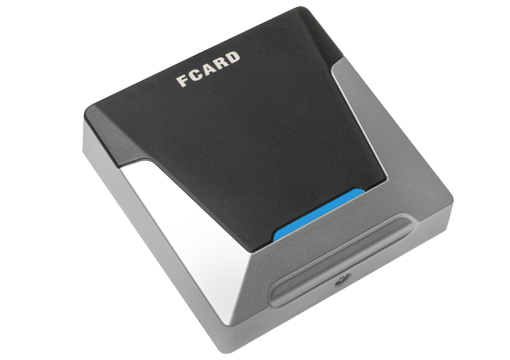

FC-185 RFID Card Reader

FC-185 RFID Card Reader, use the advanced RF technology and embedded mini access controller, combined with efficient decoding algorithm to achieve 64 bits Read-Only EM4100 compatible ID card(EM Card) and 13.56MHz frequency, encrypted algorithm to get the MIFARE format Mifare card data, get the card number by calculate, have high sensitive, small current, power supply, low price, excellent functions. FC-185 RFID Card Reader is suitable for access control system, time attendance system, charge, burglar etc.



The models of 185 RFID card readers are divided into:

FC-185E (ID card)

FC-185M (Ordinary Mifare card)

FC-185H (HID card)

FC-185S (Identification card + Mifare card + CPU card + NFC card + residence permit + NFC mobile phone)

Functions(Optional):

FC-185 RFID Card Reader and FC-K7 series Keypad RFID Reader, support secret algorithm technology circuit(optional), it integrated with the SM1 module of CPU RFID Reader, RF interface module and key to management module to make the RF reader core.

The communication between RFID Card and RFID Reader use SM1 algorithm to identification and encrypted data, to ensure the products security, it provides the only security authentication identification code to make sure that the different RFID Card reader can compatible with each other, enhance the products compatibility.


RFID Reader


Wiring Instructions:

FC-185 access control card reader provides WIEGAND26 or 34 format output, provides LED control and BEEP control circuit.

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library .
