FC-803 Access Control Power Supply is high-grade electronic components, the use of international advanced manufacturing process technology processes,quality must be reliable.
Product parameter
Name: FC-803 access control power supply
Intercom Door linkage: support
Operating current: 12V
Operating voltage: AC210V-230V
AC input: 220V/50HZ
DC output: stable voltage DC12V
Standard output: current 3A/5A
Dimension:
205mmH X, 165mmW, X 74mmD (large box)
180mm LX 80mmW X 60mmH (small box)

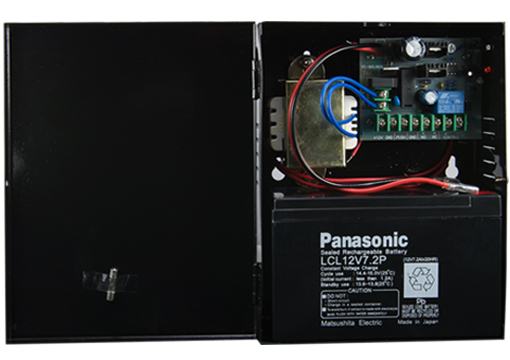

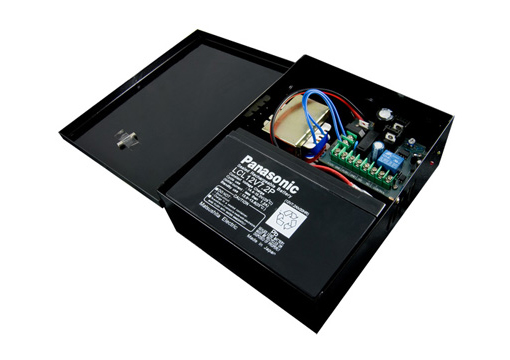

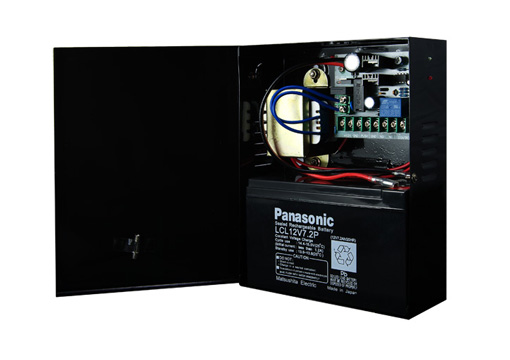

FC-803 access control power supply box is specifically designed for security system. FC-803 support AC210-230V working voltage, Access control power box maximum output is 12V3A working voltage, built-in UPS backup power supply management circuit and unlock delay circuit (0-15 seconds are adjustable). Relay normally opened and normally closed output, can support various electric lock. The power supply is absolutely use high-grade electronic components, advanced international technology manufacturing process, the quality is reliability.
Functions:
Adopt multi pole insurance design.
Built in dual voltage DC12V output.
Support PUSH- drive unlock.
Support relay switching control output.
Built-in adjustable knob lock delay 0-15 seconds.
Photoelectric isolation input unlock, support all kinds of building intercom.
UPS battery management, support 12V7.2Ah battery.
support two groups working indicator, working instruction and battery instructions.
Features:
1. AC input:220V/50HZ, DC Output:regulated 12V, the standard output current 3A/5A;
2. The direct control of the electronic locks, access control can reduce the load, interference, save project wiring, reducing failure risks;
3. Set NO/NC (normally open/ normally closed)interface,can control various types of electronic locks;
4. Set time delay circuit,lock time can be adjusted in the 0-15 seconds;
5. Automatic protection function,causing a short circuit when the circuit accident occurs, the power supply will be temporarily disconnected or burning fuse;
6. Remote control,remote control module can be inserted using the remote control to open the door remotely.(Remote from Leaving Wide ground without interference of 80 meters)
Size:
Dimensions:205mmH x 165mmWx 74mmD(large box)
180mmL x 80mmW x 60mmH (small box)
Cabling Instructions:
1-2: Regulated output DC12V,1 positive, 2 negative
2-3: Open button connection terminal can be connected to switch output(relay output).
3-4: Low-frequency signal output, connected to access controller signal lines.
4-5: NO -GND, normally open no power output, trigger output DC12V-17V, 4 positive 5 negative.
5-6: NC -GND, normally closed output DC12V-17V, triggering power outages, 6 are positive, 5 negative.
6-7: The high-frequency signal output, on the positive lock.
7-8: Connect the host building intercom lock signal input interface, 7L +, 8 of L - + 8, - 9 for the building intercom unlock signal, L +, L - input port, or as high as + 8 radio frequency input, - 9 is low frequency input(this only C plate)
Wiring Diagram:
Application:
FC-905 access control power supply is suitable for office, buildings, school dormitories, telecom rooms and other places. The power supply support NO, NC relay output and UPS management, support 0 to 15 seconds unlock delay adjustable time, can meet mostly host requirements. This power is applied to the building intercom, and kinds of access controller, particularly suitable for driving electric locks.
