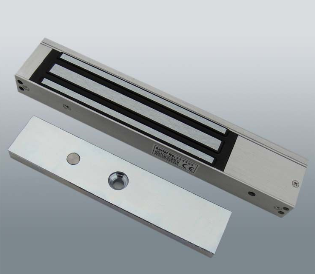

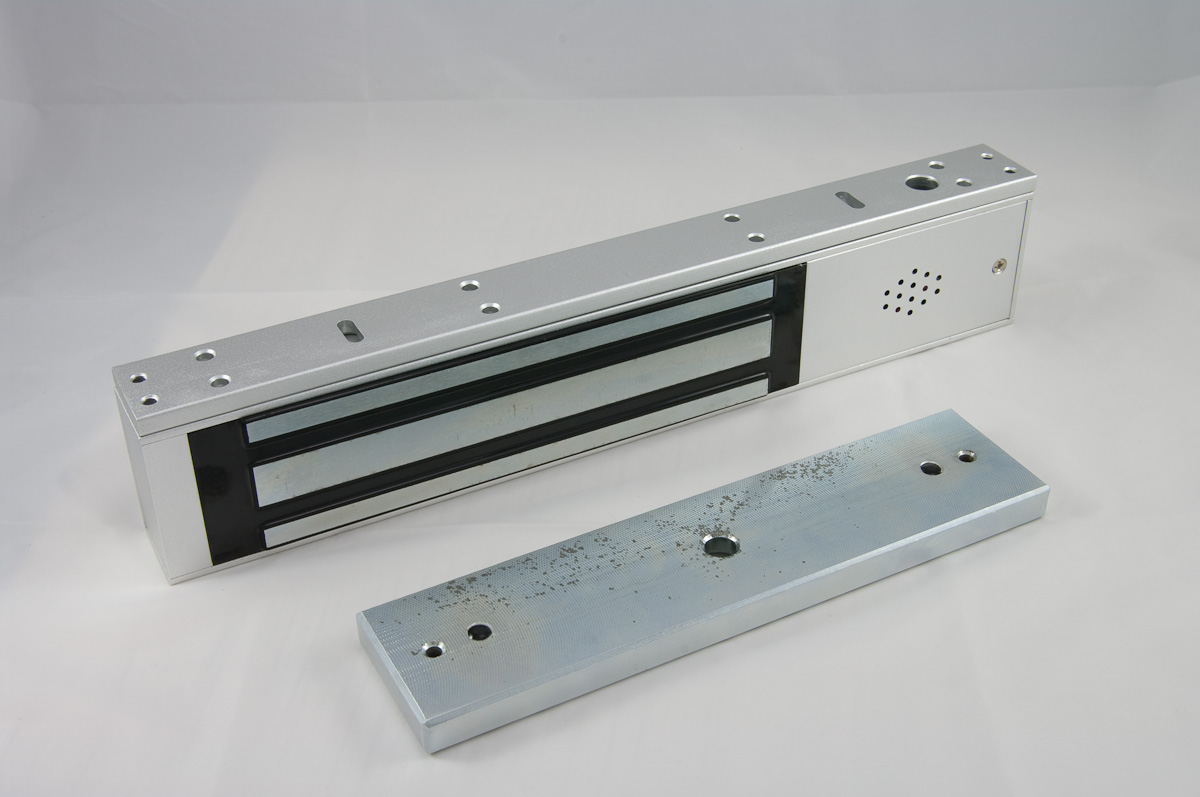

Compatible with any access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.
Voltage: DC12V/24V+10%
Working Temperature: -10 to 55℃
Humidity: 0-95%
Durable Design: Pass 200,000 testing
Weight: 4.5kg
Suitable: 90 degree framed door
Working Current: DC12V/450mA 24V/210mA
Holding Force: 500kg(1200Lbs) Direct pulling force
Size: 265*73.5*41mm
Quality Assurance: Electromagnetic lock series products, providing three years quality assurance
Electromagnetic locks include one year warranty and are available in 350lbs, 600lbs,800lbs, and 1200lbs holding force. Compatible with any access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.
Wiring Diagram:
