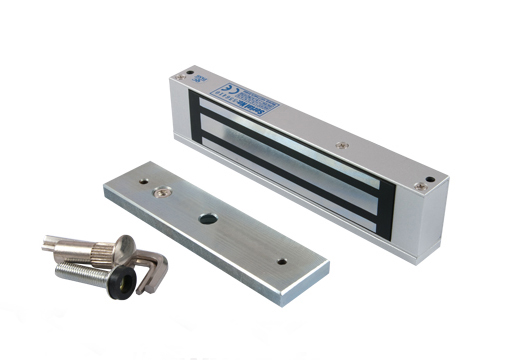

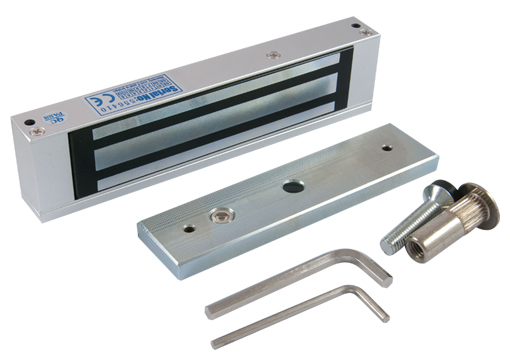

180KG Single Door Electromagnetic Lock

All series electromagnetic locks include one year warranty and are availabled in 350lbs, 600lbs,800lbs, and 1200lbs holding force. Compatible with all access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.

Technical Parameters:

Working Voltage: DC12V/24V +10%

Working Current: DC12V/300mA 24V/150mA

Humidity: 0-95%

Holding Force:180kg(300Lbs) Direct pulling force

Working Temperature: -10 to 55℃

Durable Design: Pass 500,000 testing

Weight: 1.2kg

Lock: 170mmL x 35mmH x 21mmH

Iron Plate: 130mmL x 33mmH x 9.3mmH

Warranty: 1 year

Applicable: glass door, wooden door, fireproof door

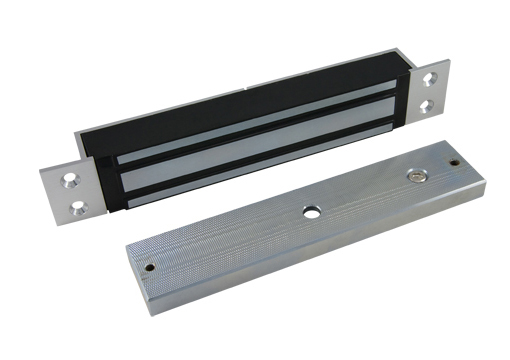

180MS Electromagnetic Lock With Mortise Mount

Technical Parameters:

Working Voltage: DC12V/24V +10%

Working Current: DC12V/300mA 24V/150mA

Humidity: 0-95%

Holding Force:180kg(300Lbs) direct pulling force

Working Temperature: -10 to 55℃

Durable Design: Pass 500,000 testing

Weight: 1.2kg

Lock: 190mmL x 32mmH x 21mmH

Iron Plate: 130mmL x 33mmH x 9.3mmH

Warranty: 1 year

Applicable: glass door, wooden door, fireproof door

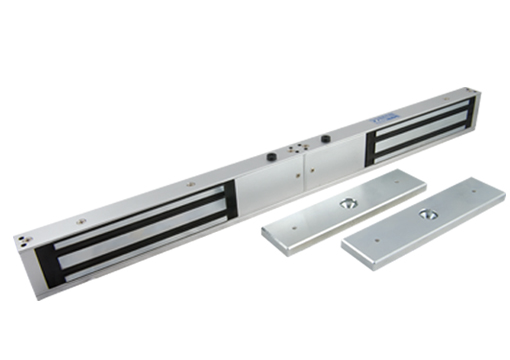

180KG Double doors Electromagnetic lock

Technical Parameters:

Working Voltage: DC12V/24V +10%

Working Current: DC12V/300mA 24V/150mA

Humidity: 0-95%

Holding Force:180kg(300Lbs) direct pulling force

Working Temperature: -10 to 55℃

Durable Design: Pass 500,000 testing

Weight: 1.2kg

Lock: 340mmL x 35mmH x 21mmH

Iron Plate: 130mmL x 33mmH x 9.3mmH

Warranty: 1 year

Applicable: glass door, wooden door, fireproof door

Installation Diagram:

Bracket for the 180Kg/280Kg/350Kg/500Kg Series magnetic lock special design for out-swing narrow door frame door project to install the magnet, with 5 adjustable holes to suit different door frame.

180L Bracket

Parameters:

Item Name:180 L Bracket

Weight:0.32Kg

Size: 250*50*30mm

Suitable for: 180 series ElectroMagnetic Lock.

180ZL Bracket

Technical Parameters:

U ElectroMagnetic Bracket

Weight:0.61Kg

Size: 168*50*30mm

Suitable for: 180 series ElectroMagnetic Lock.

180UL Bracket

Technical Parameters:

U ElectroMagnetic Bracket

Weight:0.61Kg

Size: 168*50*30mm

Suitable for: 180 series ElectroMagnetic Lock.
