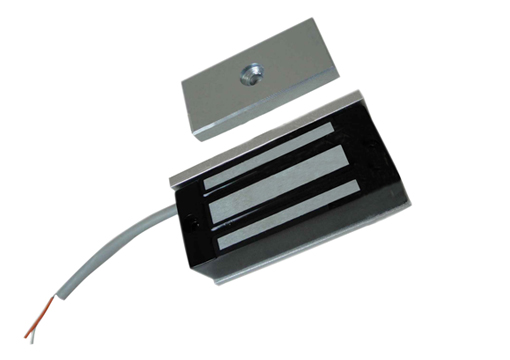

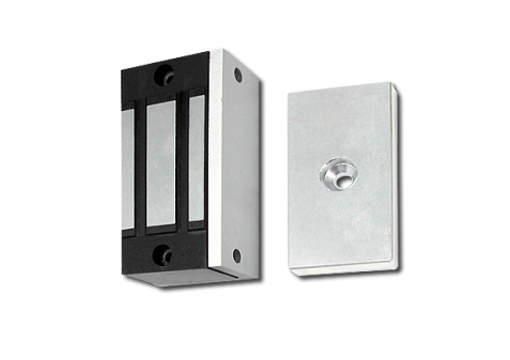

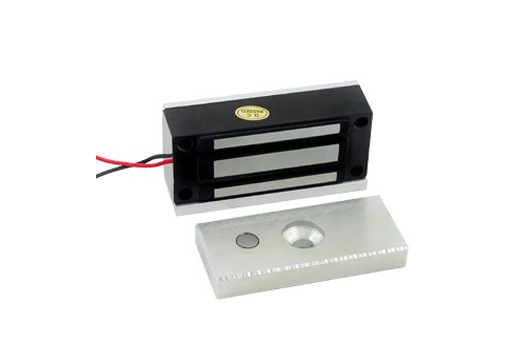

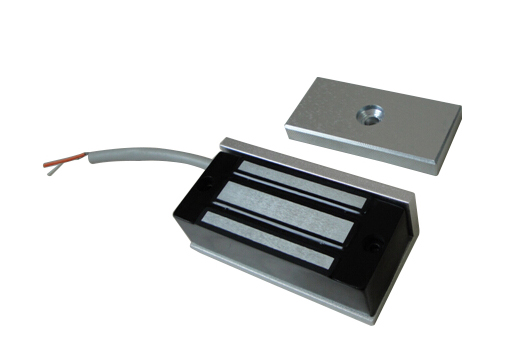

FCL-60KG Mini Electromagnetic Lock is epoxy-less design provides a superior appearance with a plated or anodized finish on all sides.
Input Voltage: DC12V / 24V
Current: 380mA
Holding Force: 65KG
Woking Temperature: 0-95%
Durable Design: Pass 500 thousand testing
Weight: 0.5kg
Size: 80*33*19mm
Suction Plate: 65X33X11mm
Applicable door:any 90ºangle open frame door.
Weight: 0.5KG
FCL-60KG Single Door Mini Electromagnetic Lock include one year warranty and are available in 350lbs, 600lbs,800lbs, and 1200lbs holding force. Compatible with any access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides.
The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.
Installation Diagram:
