Working Power Supply: DC12V/900MA
Reading Distance: 0-6CM
Working Temperature: -0 ℃ to 65℃
Working Humidity: 20-95%
Reader Frequency: 13.56MHz
Networking: RS485
User Capacity: 20,000 black and white lists (offline issuance, unlimited number of users)
Record capacity: 80,000 records (50,000 card reading records, 10,000 event records, 10,000 alarm records, and 10,000 system records)
Appearance size: 170*98*55mm

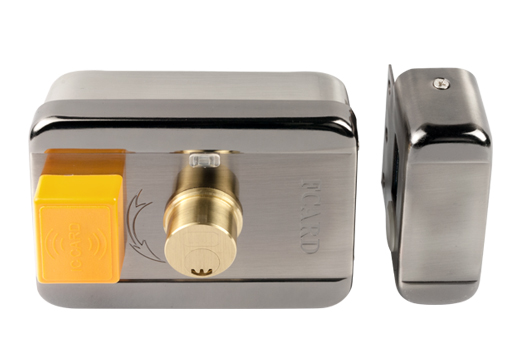

FC-988M offline encryption type electric door lock is a new generation of multifunctional anti-theft door lock product, which adopts new card reading recognition technology, combined with high-tech access control system, and supports Mifare card, second-generation Identification card, residence permit, Encrypted Mifare card, etc., as an electronic key, can realize three management methods: network management, offline management, and infrared remote control management. The built-in large memory supports 80,000 records and 20,000 black and white lists. The product adopts the offline card writing and issuing mode, and the number of personnel registrations is unlimited.
Wiring Diagram:

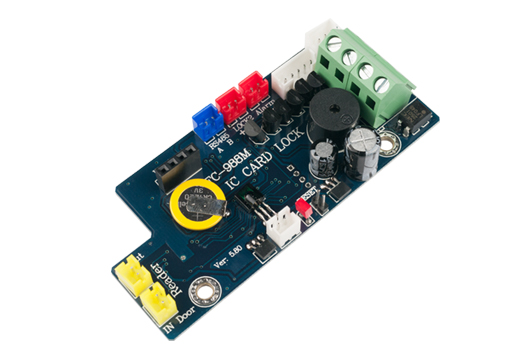

Function:
Support 2 sets of card reader antennas (going out and getting started)
Support infrared programmer
Support 1 set of exit switch
Support 1 group of door sensor switch
Support 1 group of doors 2 control output
Support 1 group of alarm output
Support 1 group of RS485 communication ports
Support data initialization jumper
Support a group of building intercom linkage interface
Support 4-button remote control (A button to open the door, B button to arm, C button to disarm/unlock, D button to lock)

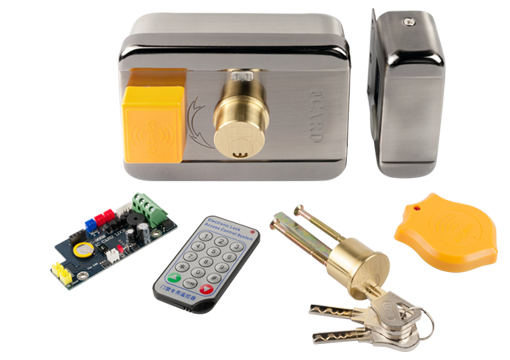

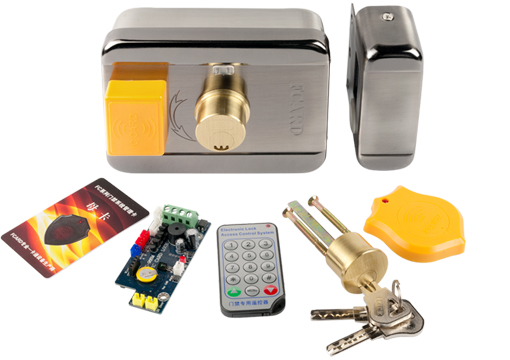

Accessories:
Wiring Diagram:
Internet Struture:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
